Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 17, 2018, 10:10 AM

  • 02 0303_02 0302 _12172018_021049.mp4

Date
12/17/2018
W/O
740647
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00251
PipeID
P02617
Time
2:10 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6275
Sewer Name
02 DOWNEY-BELLFLOWER TRUNK
City
PICO RIVERA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
22A
Purpose
Routine Assessment
Project
RFIR_WO_740647_TV02381_DEC2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
02 0303
Downstream MH
02 0302
Dir. of Survey
Downstream
Length Surveyed
196.5 ft.
Total Length
196.5 ft.
Structural Index
3
Structural Quick
3G00
Structural Rating
114
O&M Index
2
O&M Quick
412G
O&M Rating
82
Overall Index
3
Overall Quick
—
Overall Rating
196
Pipe schematic from manhole 02 0303 to 02 0302
MH: 02 0303MH: 02 0302downstream0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 03030 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start6.3 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start91.7 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"196.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish196.5 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish196.5 ft. MGO - General Observation - COCKROACHES IN MANHOLE196.5 ft. AMH - Downstream Manhole, Survey Ends - 02 0302

Observation photos (3)

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    6.3 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

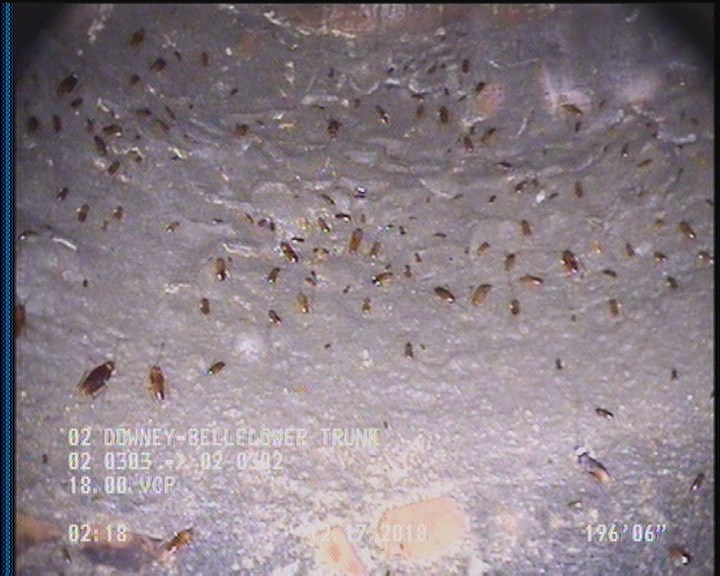

  • General Observation - COCKROACHES IN MANHOLE

    196.5 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P02617Work order 740647

Observations (12)

DistanceCodeObservation
2DAGS—
196.5DAGS—
196.5CM—
0MGOCOCKROACHES IN MANHOLE
196.5MGOCOCKROACHES IN MANHOLE
0MWL—
196.5AMH02 0302
6.3CM—
0MWM—
0AMH02 0303
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK
91.7TFA—

Properties (6)

additional_info
SC365391
custom_field_two
3
customer
LACSD
datetime
2018-12-17T02:10:39-08:00
documentation
PRO PIPE
is_lateral_inspection
false
