Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 17, 2018, 10:18 AM

  • 02 0302_02 0301 _12172018_021827.mp4

Date
12/17/2018
W/O
740647
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00251
PipeID
P02616
Time
2:18 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6275
Sewer Name
02 DOWNEY-BELLFLOWER TRUNK
City
PICO RIVERA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
22A
Purpose
Routine Assessment
Project
RFIR_WO_740647_TV02381_DEC2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
02 0302
Downstream MH
02 0301
Dir. of Survey
Downstream
Length Surveyed
176.1 ft.
Total Length
176.1 ft.
Structural Index
3
Structural Quick
3F00
Structural Rating
102
O&M Index
2
O&M Quick
412F
O&M Rating
72
Overall Index
3
Overall Quick
—
Overall Rating
174
Pipe schematic from manhole 02 0302 to 02 0301
MH: 02 0302MH: 02 0301downstream0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. AMH - Upstream Manhole, Survey Begins - 02 03022 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start2 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start91.9 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"155.7 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"173 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish173 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish176.1 ft. MGO - General Observation - COCKROACHES IN MANHOLE176.1 ft. AMH - Downstream Manhole, Survey Ends - 02 0301176.1 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK

Observation photos (4)

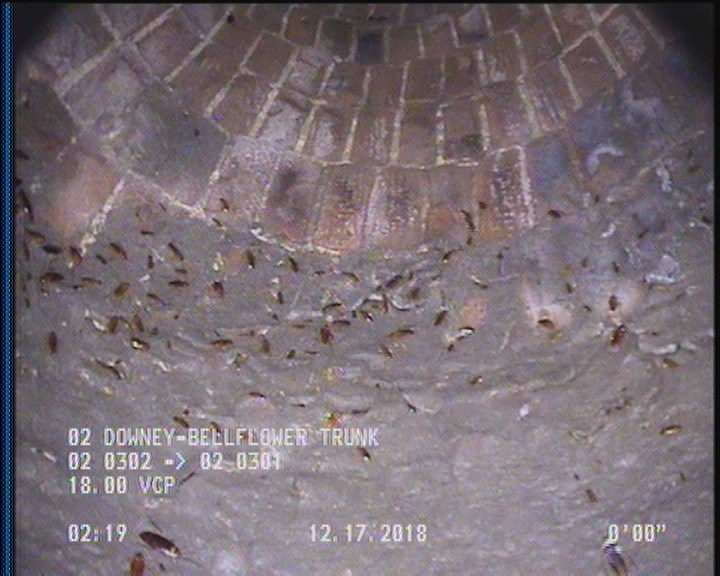

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

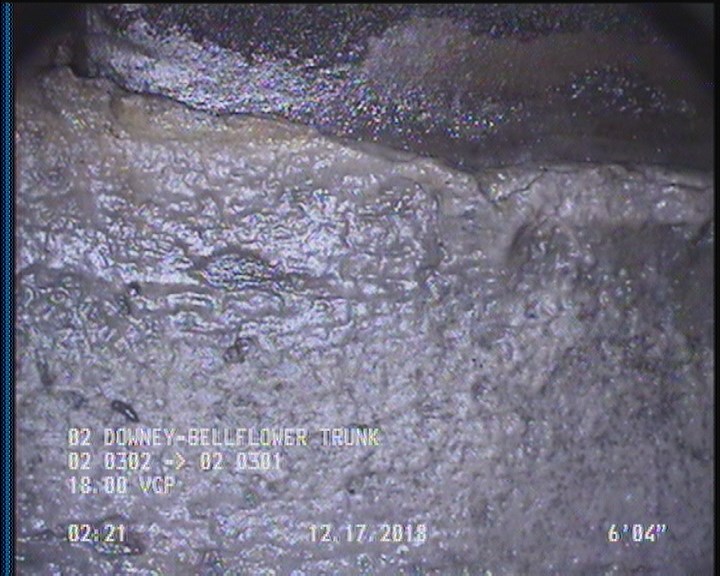

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

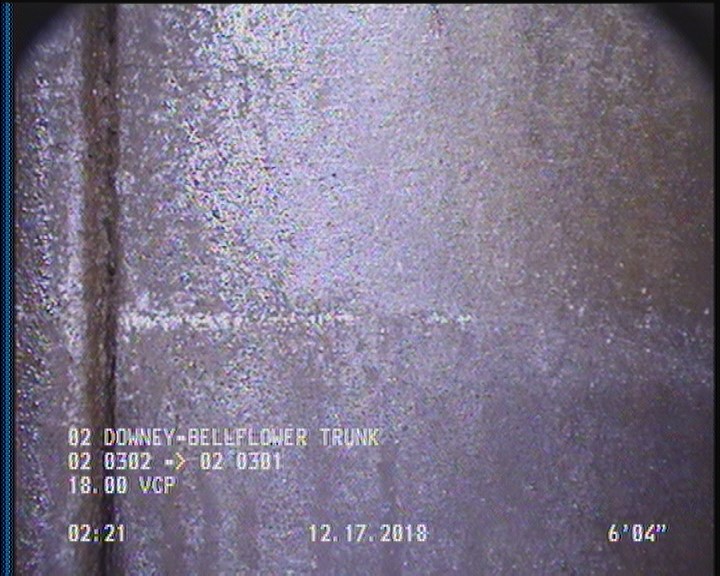

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

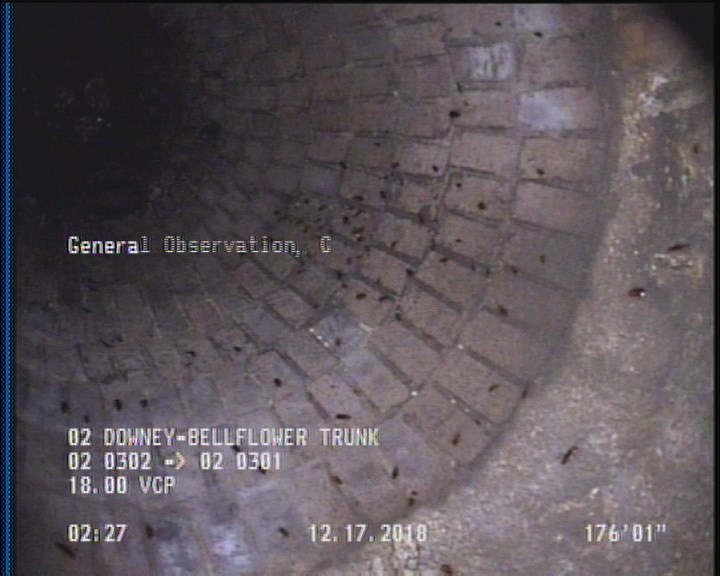

  • General Observation - COCKROACHES IN MANHOLE

    176.1 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P02616Work order 740647

Observations (14)

DistanceCodeObservation
176.1MGOCOCKROACHES IN MANHOLE
176.1AMH02 0301
173CM—
155.7TFC—
173DAGS—
176.1MGOACTIVE CONNECTION AT MH 3 O'CLOCK
2DAGS—
0MGOACTIVE CONNECTION AT MH 9 O'CLOCK
0MWL—
91.9TFC—
0MWM—
2CM—
0MGOCOCKROACHES IN MANHOLE
0AMH02 0302

Properties (6)

additional_info
SC365391
custom_field_two
3
customer
LACSD
datetime
2018-12-17T02:18:23-08:00
documentation
PRO PIPE
is_lateral_inspection
false
