Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 17, 2018, 09:19 AM

  • 02 0318_02 0317_12172018_012514.mp4

Date
12/17/2018
W/O
740647
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00251
PipeID
P02622
Time
1:19 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6275
Sewer Name
02 DOWNEY-BELLFLOWER TRUNK
City
PICO RIVERA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
19
Purpose
Routine Assessment
Project
RFIR_WO_740647_TV02381_DEC2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
02 0308
Downstream MH
02 0307
Dir. of Survey
Downstream
Length Surveyed
181 ft.
Total Length
181 ft.
Structural Index
3
Structural Quick
3F00
Structural Rating
102
O&M Index
2
O&M Quick
322G
O&M Rating
82
Overall Index
2
Overall Quick
—
Overall Rating
184
Pipe schematic from manhole 02 0308 to 02 0307
MH: 02 0308MH: 02 0307downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 03082 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start10.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start56.5 ft. RML - Roots Medium Lateral, from 11 to 01 o'clock, 15 %, within 8 inches of joint: YES56.6 ft. TFD - Tap Factory Made Defective, at 12 o'clock, -, within 8 inches of joint: NO, 6" - ROOTS88.3 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"146.3 ft. TFD - Tap Factory Made Defective, at 12 o'clock, -, within 8 inches of joint: NO, 6" - ROOTS146.3 ft. RML - Roots Medium Lateral, from 09 to 03 o'clock, 40 %, within 8 inches of joint: YES179.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish179.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish181 ft. AMH - Downstream Manhole, Survey Ends - 02 0307181 ft. MGO - General Observation - COCKROACHES IN MANHOLE181 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK

Observation photos (5)

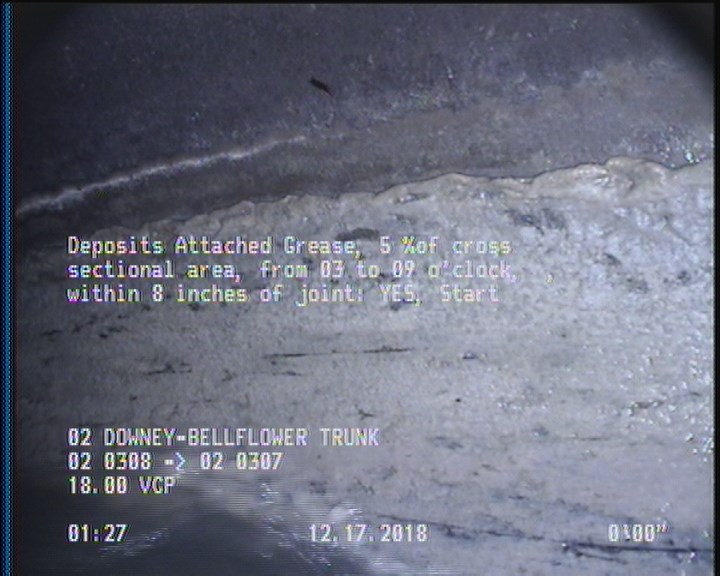

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

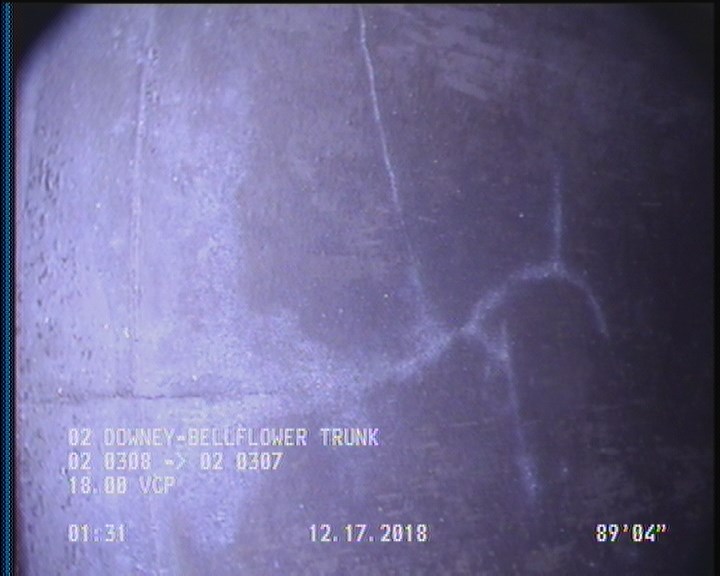

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    10.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

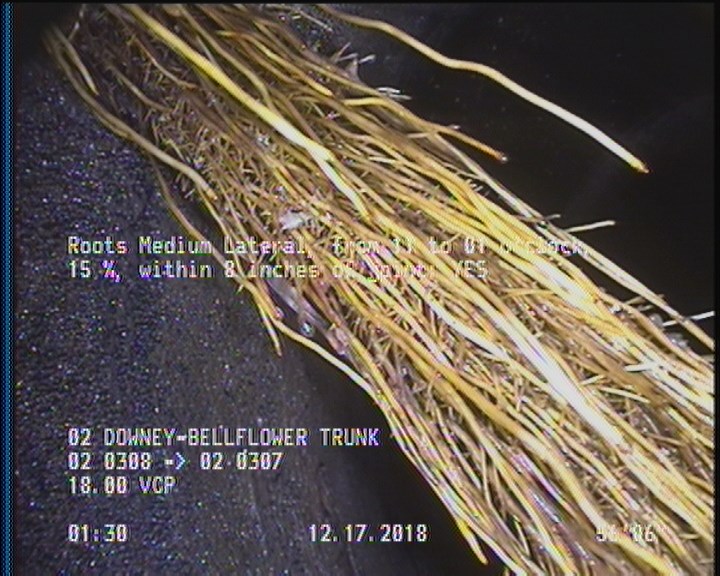

  • Roots Medium Lateral, from 11 to 01 o'clock, 15 %, within 8 inches of joint: YES

    56.5 ft. - Roots Medium Lateral, from 11 to 01 o'clock, 15 %, within 8 inches of joint: YES

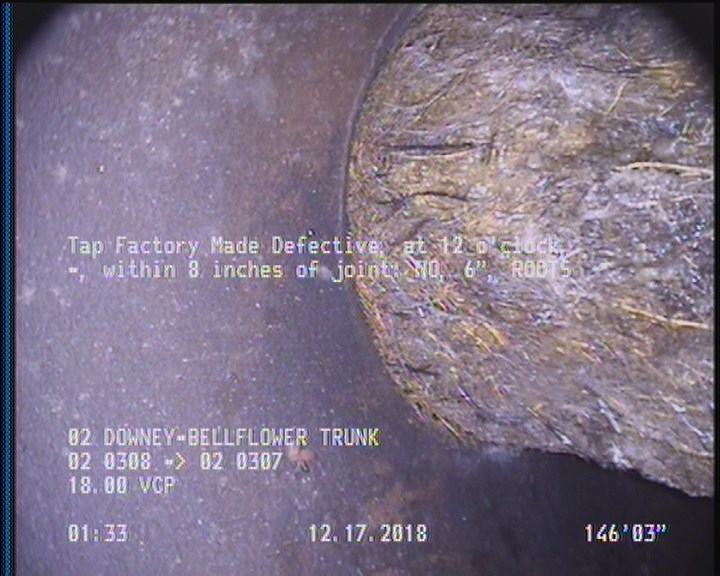

  • Tap Factory Made Defective, at 12 o'clock, -, within 8 inches of joint: NO, 6" - ROOTS

    146.3 ft. - Tap Factory Made Defective, at 12 o'clock, -, within 8 inches of joint: NO, 6" - ROOTS

  • Roots Medium Lateral, from 09 to 03 o'clock, 40 %, within 8 inches of joint: YES

    146.3 ft. - Roots Medium Lateral, from 09 to 03 o'clock, 40 %, within 8 inches of joint: YES

All inspections of P02622Work order 740647

Observations (15)

DistanceCodeObservation
179.5CM—
181AMH02 0307
10.2CM—
146.3TFDROOTS
0MWL—
56.5RML—
88.3TFC—
179.5DAGS—
146.3RML—
181MGOCOCKROACHES IN MANHOLE
56.6TFDROOTS
0MWM—
181MGOACTIVE CONNECTION AT MH 3 O'CLOCK
2DAGS—
0AMH02 0308

Properties (6)

additional_info
SC365391
custom_field_two
3
customer
LACSD
datetime
2018-12-17T01:19:03-08:00
documentation
PRO PIPE
is_lateral_inspection
false
