Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 18, 2018, 10:02 AM

  • 02 0294_02 0293 _12182018_020242.mp4

Date
12/18/2018
W/O
740647
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00251
PipeID
P02608
Time
2:02 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6276
Sewer Name
02 DOWNEY-BELLFLOWER TRUNK
City
PICO RIVERA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
22A
Purpose
Routine Assessment
Project
RFIR_WO_740647_TV02381_DEC2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
02 0293
Downstream MH
02 0294
Dir. of Survey
Upstream
Length Surveyed
326.2 ft.
Total Length
326.2 ft.
Structural Index
3
Structural Quick
3L00
Structural Rating
192
O&M Index
2
O&M Quick
412L
O&M Rating
132
Overall Index
3
Overall Quick
—
Overall Rating
324
Pipe schematic from manhole 02 0293 to 02 0294
MH: 02 0293MH: 02 0294upstream0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Ends - 02 02941.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish1.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish68.1 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"168.5 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"311.5 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"320.9 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start324.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start326.2 ft. MWL - Water Level, 30 %of cross sectional area326.2 ft. MWM - Water Mark, 50 %of cross sectional area326.2 ft. AMH - Downstream Manhole, Survey Begins - 02 0293

Observation photos (3)

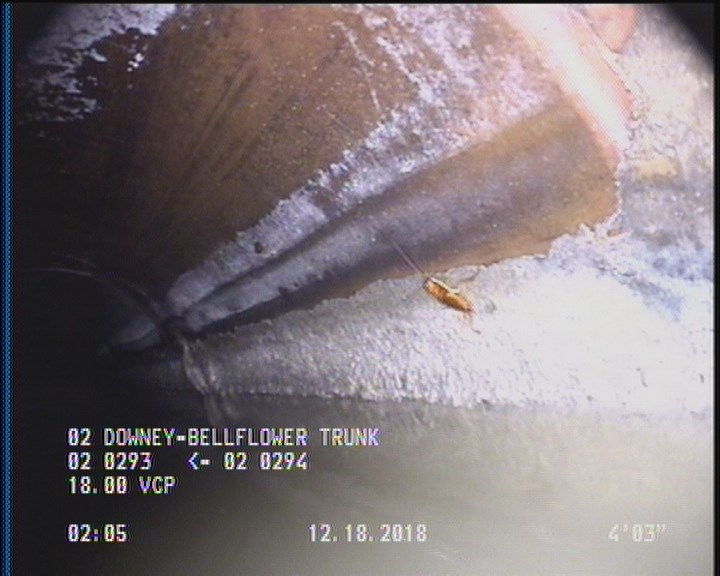

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

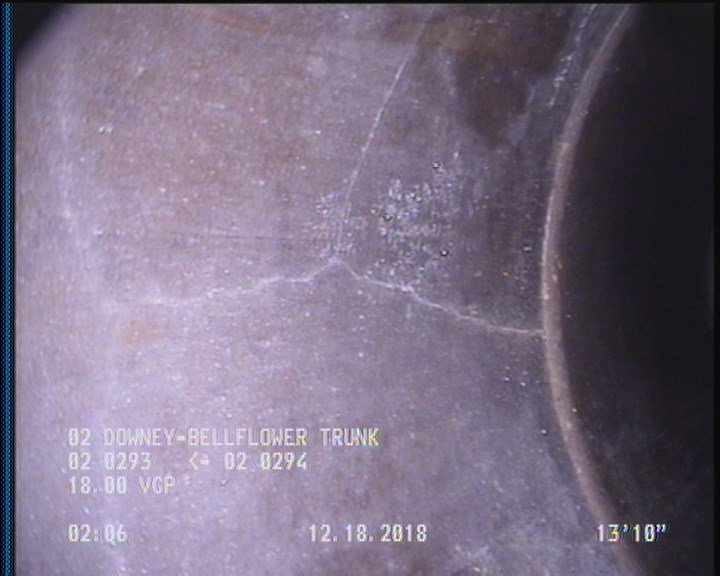

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    5.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

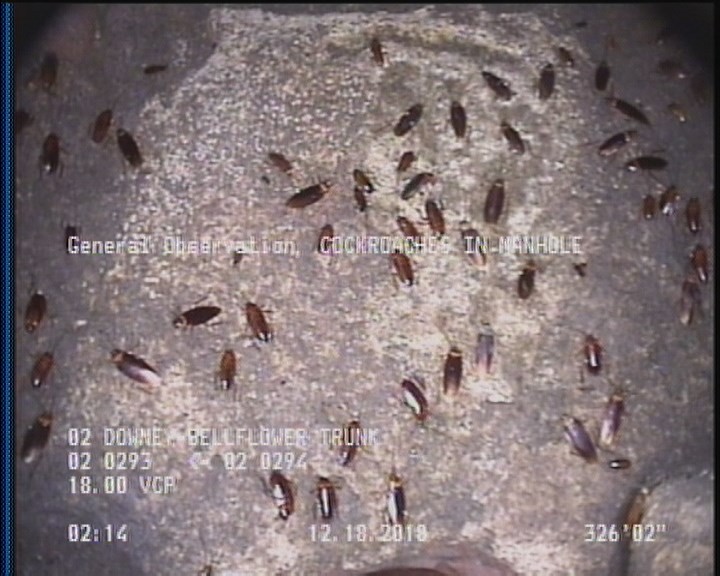

  • General Observation - COCKROACHES IN MANHOLE

    326.2 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P02608Work order 740647

Observations (13)

DistanceCodeObservation
0MWL—
157.7TFC—
324.4CM—
326.2MGOCOCKROACHES IN MANHOLE
2DAGS—
326.2MGOACTIVE CONNECTION AT MH 9 O'CLOCK
0MWM—
324.4DAGS—
5.3CM—
14.7TF—
258.1TFC—
0AMH02 0293
326.2AMH02 0294

Properties (6)

additional_info
SC365392
custom_field_two
3
customer
LACSD
datetime
2018-12-18T02:02:48-08:00
documentation
PRO PIPE
is_lateral_inspection
false
