Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 21, 2018, 06:16 AM

  • 02 0257_02 0256_12202018_221936.mp4

Date
12/20/2018
W/O
740647
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00251
PipeID
P02566
Time
10:16 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6279
Sewer Name
02 DOWNEY-BELLFLOWER TRUNK
City
PICO RIVERA
Loc. details
Sidewalk
Location Code
F
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
25
Purpose
Routine Assessment
Project
RFIR_WO_740647_TV02381_DEC2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
02 0257
Downstream MH
02 0256
Dir. of Survey
Downstream
Length Surveyed
387.5 ft.
Total Length
387.5 ft.
Structural Index
3
Structural Quick
3N00
Structural Rating
228
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
228
Pipe schematic from manhole 02 0257 to 02 0256
MH: 02 0257MH: 02 0256downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 02570 ft. MWM - Water Mark, 5 %of cross sectional area5.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES8.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start31.7 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 65"117.8 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"220 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"318.4 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"385.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish387.5 ft. AMH - Downstream Manhole, Survey Ends - 02 0256

Observation photos (2)

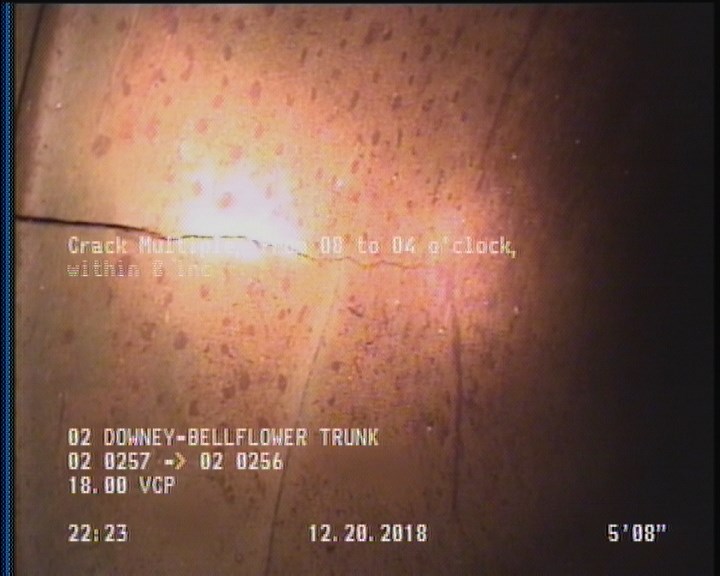

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    5.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

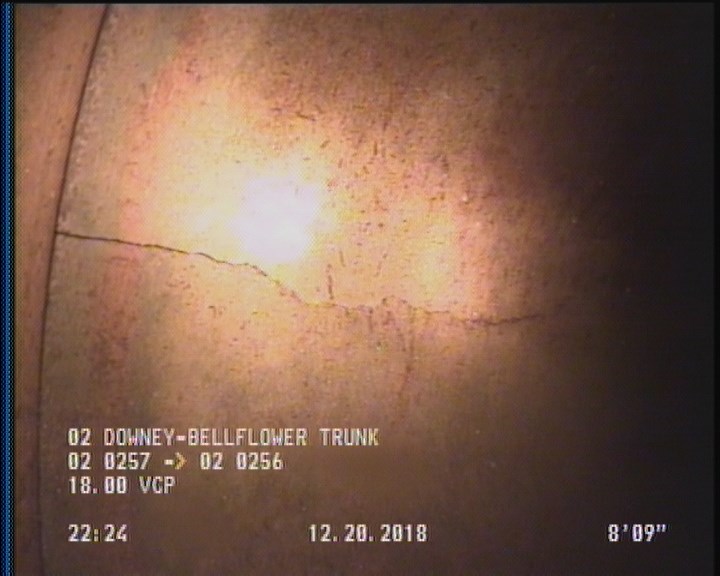

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    8.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P02566Work order 740647

Observations (11)

DistanceCodeObservation
385.3CM—
8.8CM—
387.5AMH02 0256
0MWL—
0AMH02 0257
318.4TFA—
0MWM—
31.7TFA—
220TFA—
117.8TFA—
5.7CM—

Properties (6)

additional_info
SC365395
custom_field_two
3
customer
LACSD
datetime
2018-12-20T22:16:54-08:00
documentation
PRO PIPE
is_lateral_inspection
false
