Wastewater/Activity/PacpInspection/1.0Dec 20, 2018, 10:00 AM
02 2439_02 2438 _12202018_020042.mp4
- Date
- 12/20/2018
- W/O
- 740647
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00251
- PipeID
- P26318
- Time
- 2:00 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6278
- Sewer Name
- 02 DOWNEY-BELLFLOWER TRUNK
- City
- PICO RIVERA
- Loc. details
- Sidewalk
- Location Code
- F
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 25
- Purpose
- Routine Assessment
- Project
- RFIR_WO_740647_TV02381_DEC2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 02 2439
- Downstream MH
- 02 2438
- Dir. of Survey
- Downstream
- Length Surveyed
- 181.7 ft.
- Total Length
- 181.7 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 512H
- O&M Rating
- 95
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 95
Observation photos (2)

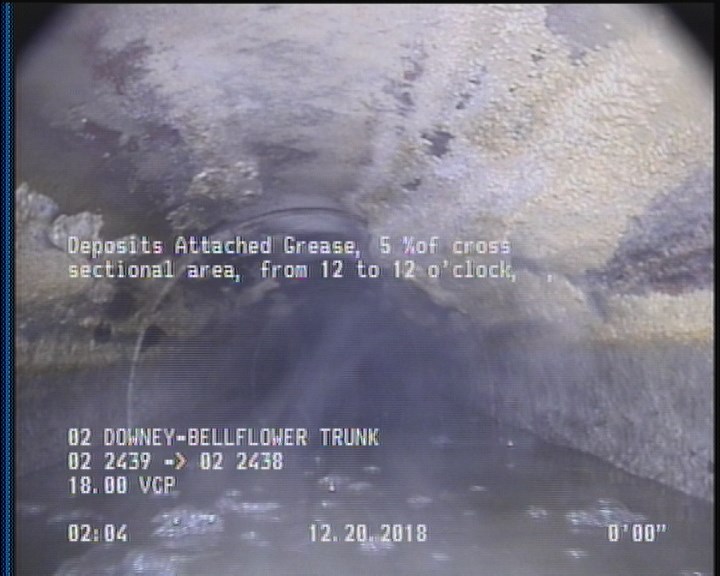

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 12 to 12 o'clock, , within 8 inches of joint: YES, Start

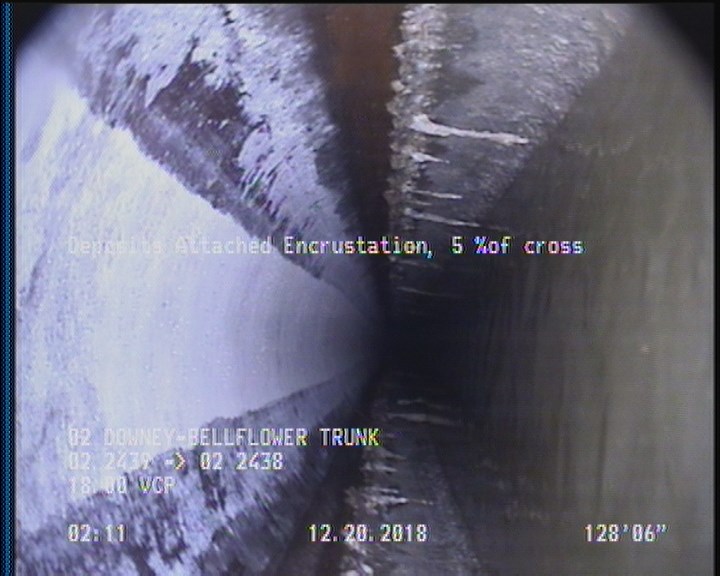

128.5 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 11 to 01 o'clock, , within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 178.6 | DAGS | — |
| 178.6 | DAE | — |
| 0 | MWM | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 181.7 | AMH | 02 2438 |
| 128.5 | DAE | — |
| 0 | AMH | 02 2439 |
| 181.7 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 0 | MWL | — |
| 2 | DAGS | — |
Properties (7)
- additional_info
- SC365394
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-12-20T02:00:34-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 40723
