Wastewater/Activity/PacpInspection/1.0Dec 18, 2018, 07:42 AM
02 0283_02 0282 _12172018_234307.mp4
- Date
- 12/17/2018
- W/O
- 740647
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00251
- PipeID
- P02597
- Time
- 11:42 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6276
- Sewer Name
- 02 DOWNEY-BELLFLOWER TRUNK
- City
- PICO RIVERA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 22
- Purpose
- Routine Assessment
- Project
- RFIR_WO_740647_TV02381_DEC2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 02 0283
- Downstream MH
- 02 0282
- Dir. of Survey
- Downstream
- Length Surveyed
- 283 ft.
- Total Length
- 283 ft.
- Structural Index
- 3
- Structural Quick
- 3J00
- Structural Rating
- 168
- O&M Index
- 2
- O&M Quick
- 412J
- O&M Rating
- 116
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 284
Observation photos (3)

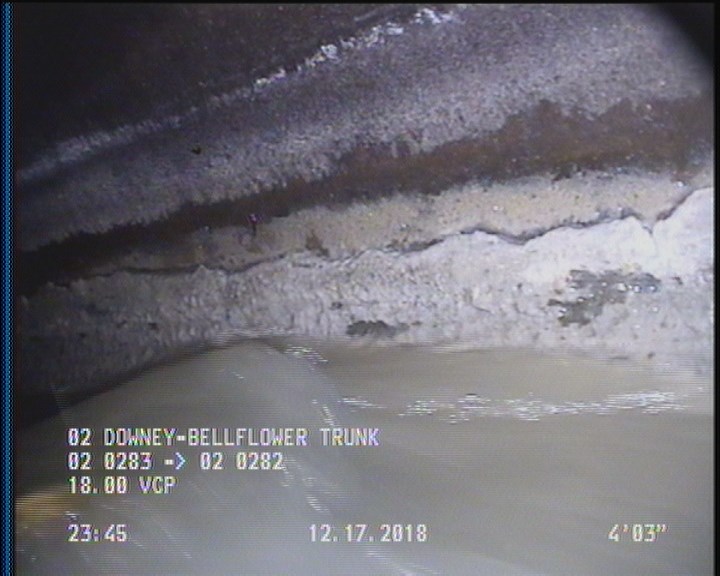

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

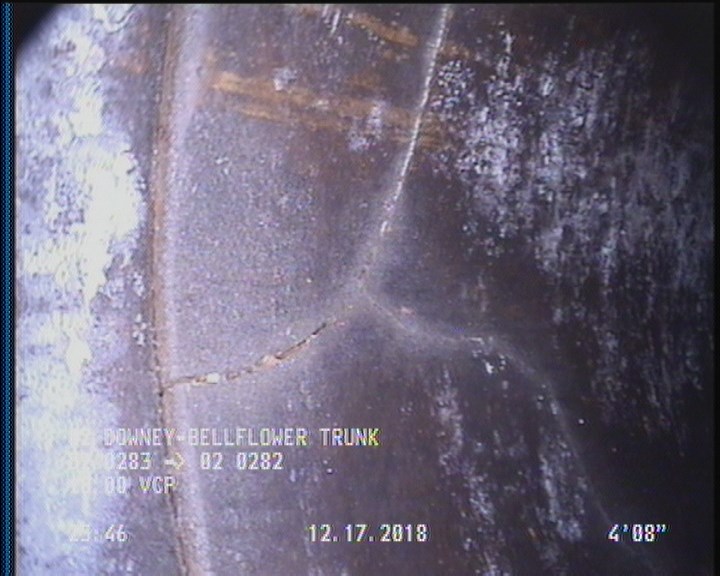

2 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

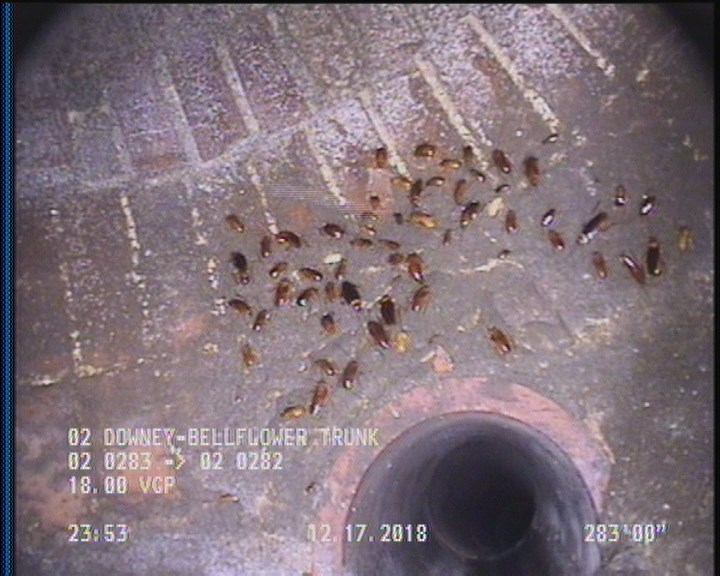

283 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 02 0283 |
| 282 | DAGS | — |
| 283 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 0 | MWL | — |
| 283 | AMH | 02 0282 |
| 33.9 | TF | — |
| 180.3 | TFC | — |
| 0 | MWM | — |
| 2 | DAGS | — |
| 283 | MGO | COCKROACHES IN MANHOLE |
| 259.6 | TFC | — |
| 2 | CM | — |
| 282 | CM | — |
Properties (6)
- additional_info
- SC365392
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-12-17T23:42:31-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
