Wastewater/Activity/PacpInspection/1.0Dec 20, 2018, 06:37 AM
02 0266_02 0265 _12192018_223759.mp4
- Date
- 12/19/2018
- W/O
- 740647
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00251
- PipeID
- P02580
- Time
- 10:37 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6278
- Sewer Name
- 02 DOWNEY-BELLFLOWER TRUNK
- City
- PICO RIVERA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 25
- Purpose
- Routine Assessment
- Project
- RFIR_WO_740647_TV02381_DEC2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 02 0266
- Downstream MH
- 02 0265
- Dir. of Survey
- Downstream
- Length Surveyed
- 284.8 ft.
- Total Length
- 284.8 ft.
- Structural Index
- 3
- Structural Quick
- 3J00
- Structural Rating
- 165
- O&M Index
- 2
- O&M Quick
- 2J11
- O&M Rating
- 113
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 278
Observation photos (3)

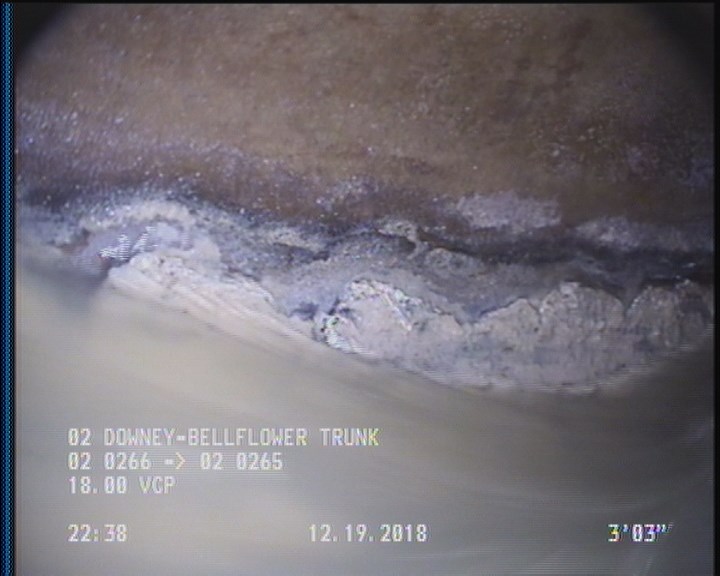

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

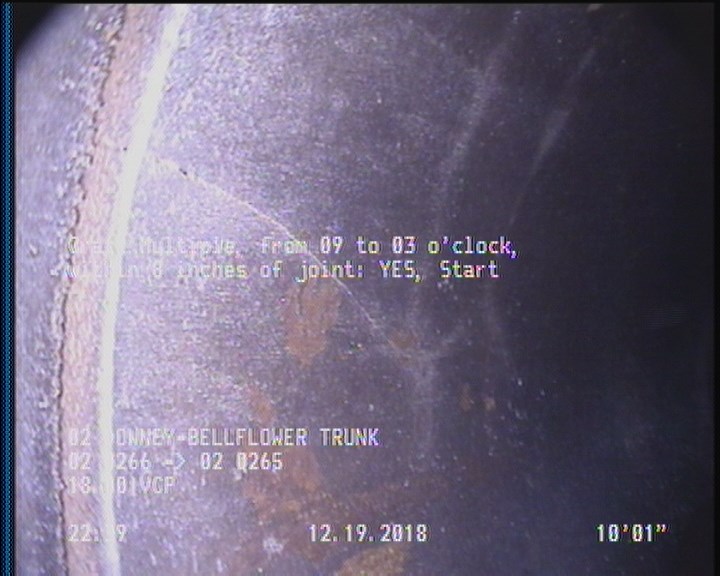

10 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
46.9 ft. - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6", 6"
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 283.4 | CM | — |
| 283.4 | DAGS | — |
| 220.4 | TFA | — |
| 2 | DAGS | — |
| 10 | CM | — |
| 46.9 | RFL | — |
| 102.4 | TF | — |
| 0 | MWL | — |
| 46.9 | TFA | — |
| 75.9 | TBA | — |
| 0 | AMH | 02 0266 |
| 0 | MWM | — |
| 284.8 | AMH | 02 0265 |
| 124.4 | TBA | — |
Properties (6)
- additional_info
- SC365394
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-12-19T22:37:13-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
