Wastewater/Activity/PacpInspection/1.0Dec 18, 2018, 10:56 AM
02 0270_02 2442 _12182018_025646.mp4
- Date
- 12/18/2018
- W/O
- 740647
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00251
- PipeID
- P26323
- Time
- 2:56 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6276
- Sewer Name
- 02 DOWNEY-BELLFLOWER TRUNK
- City
- PICO RIVERA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 25
- Purpose
- Routine Assessment
- Project
- RFIR_WO_740647_TV02381_DEC2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 02 0270
- Downstream MH
- 02 2442
- Dir. of Survey
- Downstream
- Length Surveyed
- 80.2 ft.
- Total Length
- 80.2 ft.
- Structural Index
- 3
- Structural Quick
- 3B00
- Structural Rating
- 45
- O&M Index
- 2
- O&M Quick
- 2B00
- O&M Rating
- 32
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 77
Observation photos (2)

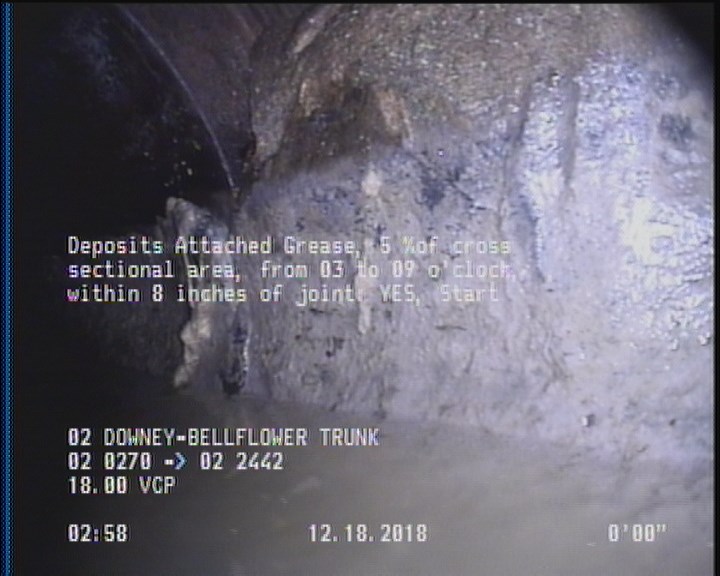

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

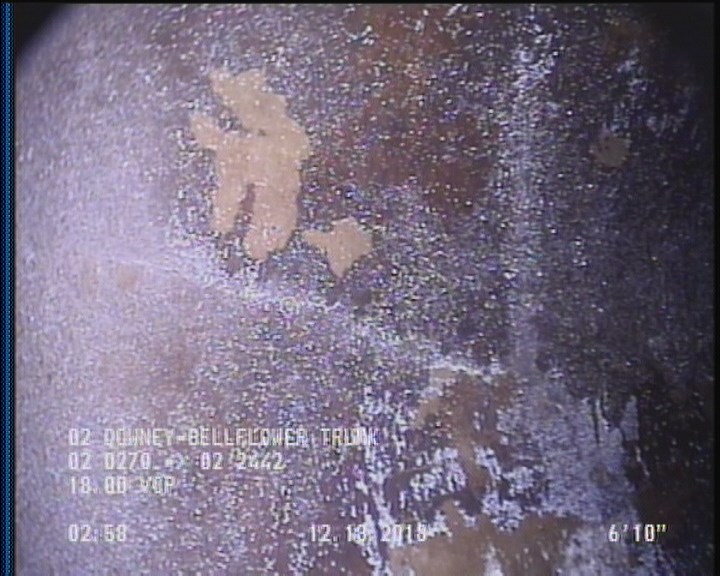

6.9 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 02 0270 |
| 80.2 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 80.2 | AMH | 02 2442 |
| 27.1 | TFA | — |
| 2 | DAGS | — |
| 80.2 | DAGS | — |
| 0 | MWL | — |
| 80.2 | CM | — |
| 0 | MWM | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 6.9 | CM | — |
Properties (7)
- additional_info
- SC365392
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-12-18T02:56:42-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 40723
