Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 20, 2018, 07:16 AM

  • 02 0263A_02 1853 _12192018_231646.mp4

Date
12/19/2018
W/O
740647
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00251
PipeID
P02577
Time
11:16 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6278
Sewer Name
02 DOWNEY-BELLFLOWER TRUNK
City
PICO RIVERA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
25
Purpose
Routine Assessment
Project
RFIR_WO_740647_TV02381_DEC2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
02 0263A
Downstream MH
02 1853
Dir. of Survey
Downstream
Length Surveyed
151.8 ft.
Total Length
151.8 ft.
Structural Index
3
Structural Quick
3E00
Structural Rating
87
O&M Index
2
O&M Quick
412E
O&M Rating
64
Overall Index
3
Overall Quick
—
Overall Rating
151
Pipe schematic from manhole 02 0263A to 02 1853
MH: 02 0263AMH: 02 1853downstream0 ft. MWM - Water Mark, 60 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 02 0263A0 ft. MWL - Water Level, 40 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start8.7 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start21.4 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"69 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"119.7 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"151.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish151.7 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish151.8 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3, 9, 12 O'CLOCK151.8 ft. AMH - Downstream Manhole, Survey Ends - 02 1853

Observation photos (2)

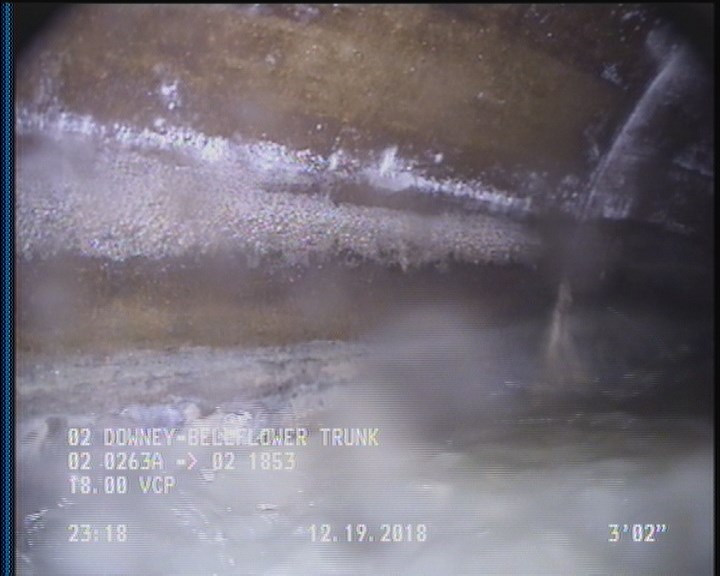

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

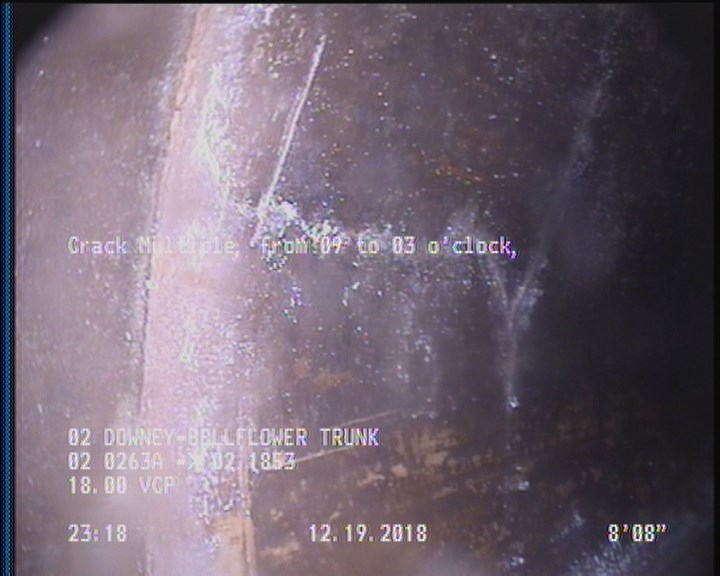

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    8.7 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P02577Work order 740647

Observations (13)

DistanceCodeObservation
2DAGS—
151.7DAGS—
0MWM—
151.7CM—
119.7TFC—
21.4TFA—
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK
151.8MGOACTIVE CONNECTION AT MH 3, 9, 12 O'CLOCK
69TFC—
0AMH02 0263A
151.8AMH02 1853
0MWL—
8.7CM—

Properties (6)

additional_info
SC365394
custom_field_two
3
customer
LACSD
datetime
2018-12-19T23:16:06-08:00
documentation
PRO PIPE
is_lateral_inspection
false
