Wastewater/Activity/PacpInspection/1.0Dec 21, 2018, 06:35 AM
02 0256_02 0255 _12202018_223535.mp4
- Date
- 12/20/2018
- W/O
- 740647
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00251
- PipeID
- P02565
- Time
- 10:35 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6279
- Sewer Name
- 02 DOWNEY-BELLFLOWER TRUNK
- City
- PICO RIVERA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 25
- Purpose
- Routine Assessment
- Project
- RFIR_WO_740647_TV02381_DEC2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 02 0256
- Downstream MH
- 02 0255
- Dir. of Survey
- Downstream
- Length Surveyed
- 387.4 ft.
- Total Length
- 387.4 ft.
- Structural Index
- 3
- Structural Quick
- 3N00
- Structural Rating
- 228
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 232
Observation photos (2)

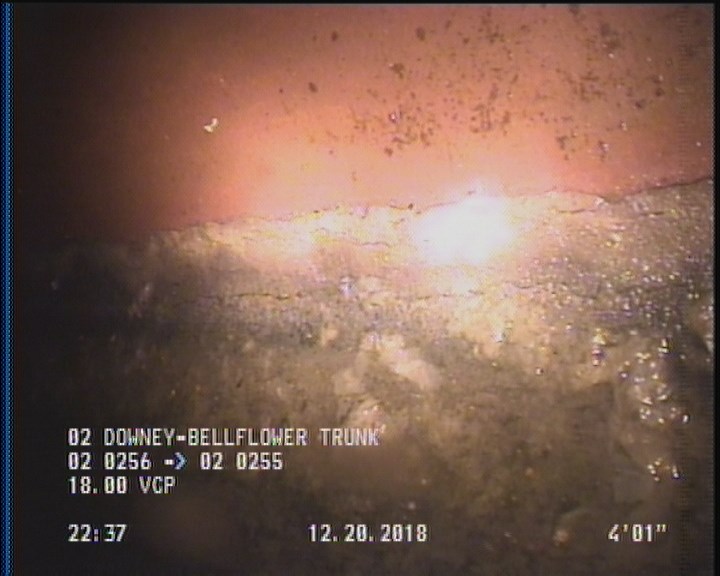

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

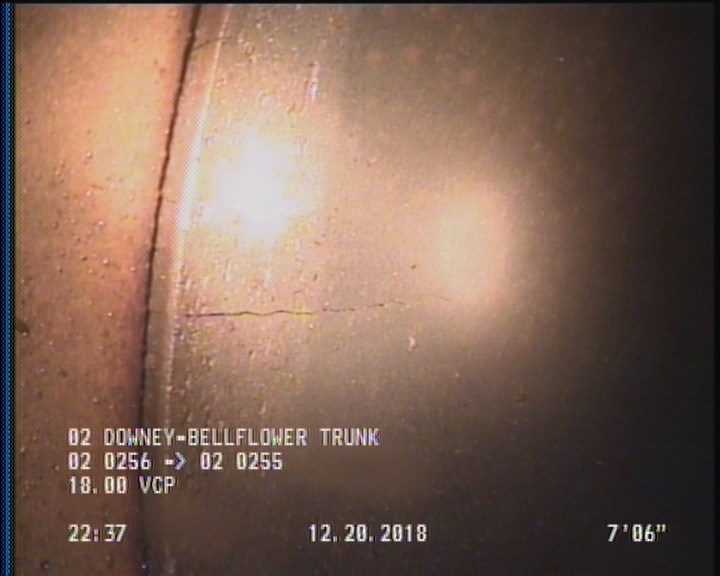

7.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 132.6 | TFA | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 0 | AMH | 02 0256 |
| 385.6 | CM | — |
| 332.3 | TFA | — |
| 272.1 | TFA | — |
| 7.5 | CM | — |
| 2 | DAGS | — |
| 26.1 | TFA | — |
| 385.6 | DAGS | — |
| 387.4 | AMH | 02 0255 |
| 230 | TFC | — |
Properties (6)
- additional_info
- SC365395
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-12-20T22:35:29-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
