Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 17, 2018, 09:35 AM

  • 02 0307_02 0306 _12172018_013544.mp4

Date
12/17/2018
W/O
740647
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00251
PipeID
P02621
Time
1:35 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6275
Sewer Name
02 DOWNEY-BELLFLOWER TRUNK
City
PICO RIVERA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
22A
Purpose
Routine Assessment
Project
RFIR_WO_740647_TV02381_DEC2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
02 0307
Downstream MH
02 0306
Dir. of Survey
Downstream
Length Surveyed
151.9 ft.
Total Length
151.9 ft.
Structural Index
3
Structural Quick
3E00
Structural Rating
87
O&M Index
2
O&M Quick
2E12
O&M Rating
62
Overall Index
2
Overall Quick
—
Overall Rating
149
Pipe schematic from manhole 02 0307 to 02 0306
MH: 02 0307MH: 02 0306downstream0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 03072 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start4.2 ft. RFJ - Roots Fine Joint, at 03 o'clock, within 8 inches of joint: YESR4.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start53.9 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"53.9 ft. RFL - Roots Fine Lateral, from 11 to 01 o'clock115.6 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"149.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish149.9 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish151.9 ft. AMH - Downstream Manhole, Survey Ends - 02 0306151.9 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (6)

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

  • Roots Fine Joint, at 03 o'clock, within 8 inches of joint: YESR

    4.2 ft. - Roots Fine Joint, at 03 o'clock, within 8 inches of joint: YESR

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    4.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

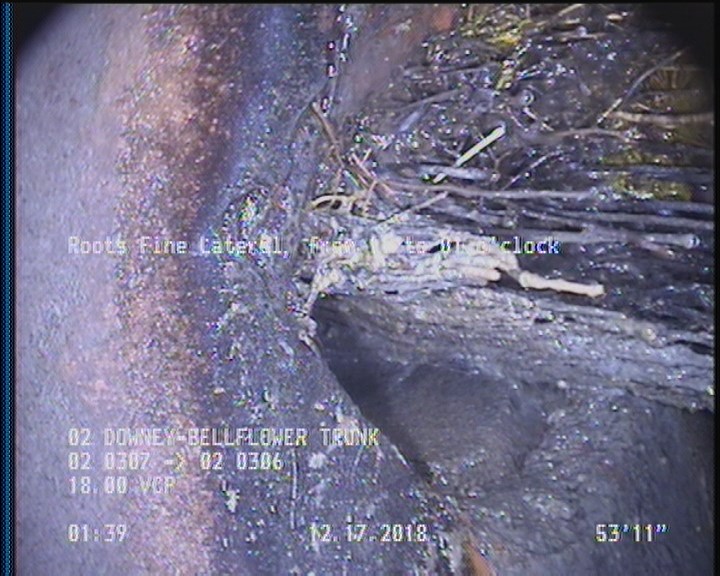

  • Roots Fine Lateral, from 11 to 01 o'clock

    53.9 ft. - Roots Fine Lateral, from 11 to 01 o'clock

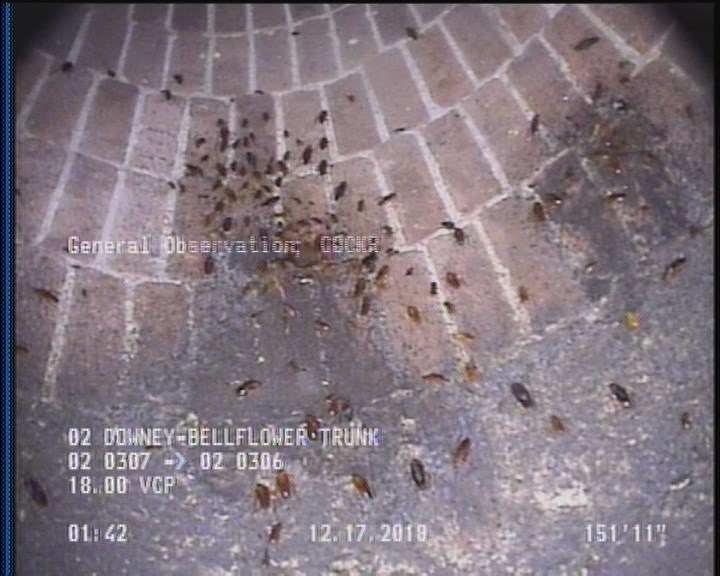

  • General Observation - COCKROACHES IN MANHOLE

    151.9 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P02621Work order 740647

Observations (15)

DistanceCodeObservation
4.2RFJ—
149.9DAGS—
0MGOCOCKROACHES IN MANHOLE
151.9AMH02 0306
0MWL—
53.9TFA—
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK
4.2CM—
0MWM—
149.9CM—
53.9RFL—
2DAGS—
115.6TFC—
0AMH02 0307
151.9MGOCOCKROACHES IN MANHOLE

Properties (6)

additional_info
SC365391
custom_field_two
3
customer
LACSD
datetime
2018-12-17T01:35:30-08:00
documentation
PRO PIPE
is_lateral_inspection
false
