Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 17, 2018, 11:37 AM

  • 02 0297_02 0296_12172018_033738.mp4

Date
12/17/2018
W/O
740647
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00251
PipeID
P02611
Time
3:37 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6275
Sewer Name
02 DOWNEY-BELLFLOWER TRUNK
City
PICO RIVERA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
22A
Purpose
Routine Assessment
Project
RFIR_WO_740647_TV02381_DEC2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
02 0297
Downstream MH
02 0296
Dir. of Survey
Downstream
Length Surveyed
153.3 ft.
Total Length
153.3 ft.
Structural Index
3
Structural Quick
3E00
Structural Rating
90
O&M Index
2
O&M Quick
412E
O&M Rating
64
Overall Index
3
Overall Quick
—
Overall Rating
154
Pipe schematic from manhole 02 0297 to 02 0296
MH: 02 0297MH: 02 0296downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 02970 ft. MWM - Water Mark, 50 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start5.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start11.5 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"129.6 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"153.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish153.3 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 AND 9 O'CLOCK153.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish153.3 ft. MGO - General Observation - COCKROACHES IN MANHOLE153.3 ft. AMH - Downstream Manhole, Survey Ends - 02 0296

Observation photos (3)

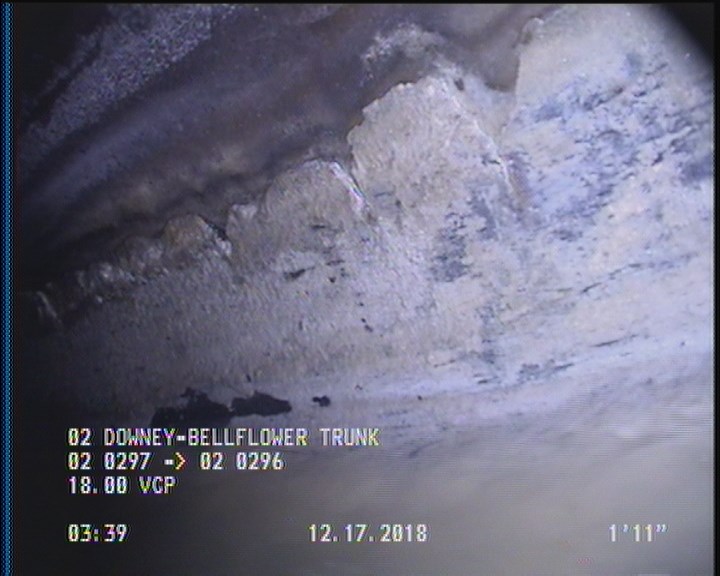

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

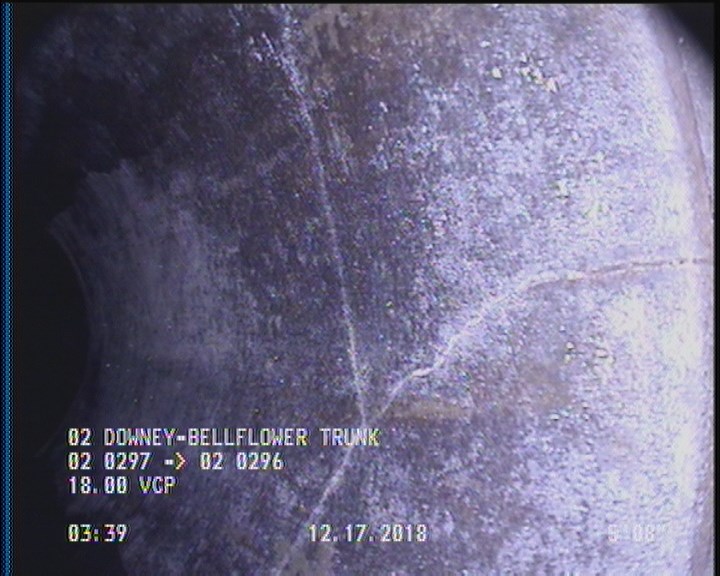

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    5.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

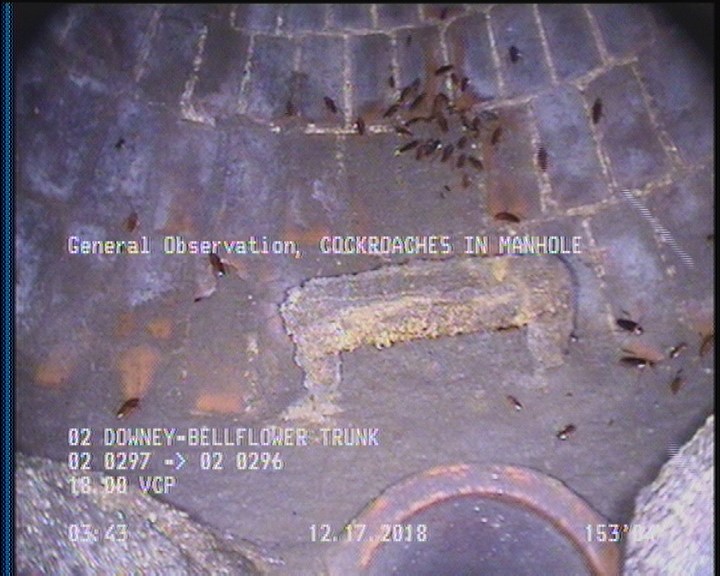

  • General Observation - COCKROACHES IN MANHOLE

    153.3 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P02611Work order 740647

Observations (12)

DistanceCodeObservation
0MWL—
153.3CM—
153.3MGOACTIVE CONNECTION AT MH 3 AND 9 O'CLOCK
129.6TFC—
153.3DAGS—
5.7CM—
0AMH02 0297
0MWM—
153.3MGOCOCKROACHES IN MANHOLE
2DAGS—
11.5TFC—
153.3AMH02 0296

Properties (6)

additional_info
SC365391
custom_field_two
3
customer
LACSD
datetime
2018-12-17T03:37:35-08:00
documentation
PRO PIPE
is_lateral_inspection
false
