Wastewater/Activity/PacpInspection/1.0Jan 4, 2019, 10:54 AM
22 1131_B 0720 _01042019_030321.mp4
- Date
- 01/04/2019
- W/O
- 740134
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00110
- PipeID
- P09395
- Time
- 2:54 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6291
- Sewer Name
- B JOINT OUTFALL B - UNIT 8G
- City
- DUARTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- RFIR_WO_740134_TV22155_DEC2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 22 1131
- Downstream MH
- B 0720
- Dir. of Survey
- Downstream
- Length Surveyed
- 152.5 ft.
- Total Length
- 152.5 ft.
- Structural Index
- 3
- Structural Quick
- 3E00
- Structural Rating
- 90
- O&M Index
- 2
- O&M Quick
- 2E00
- O&M Rating
- 60
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 150
Observation photos (2)

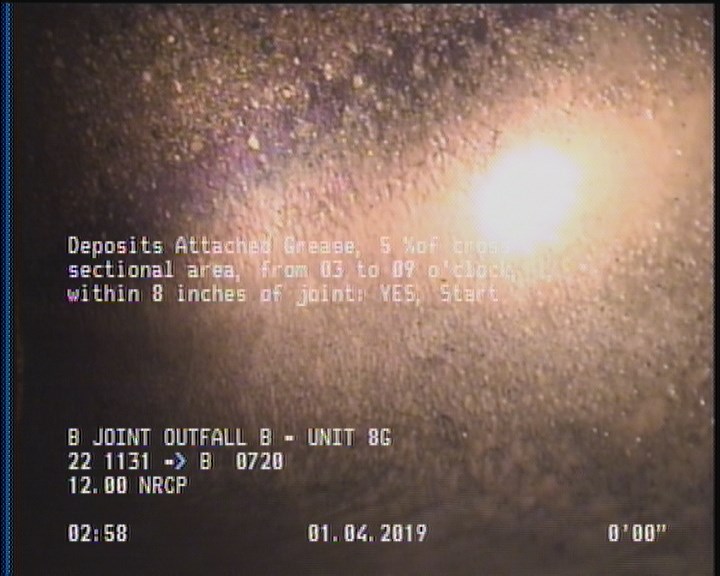

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

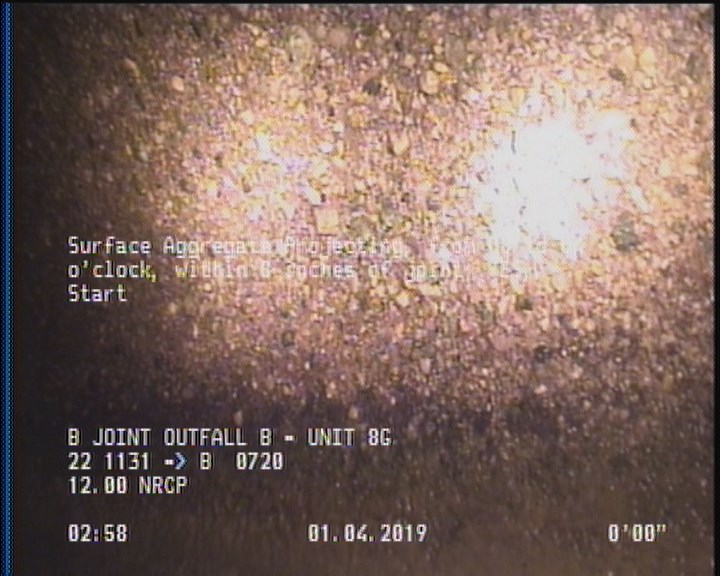

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | AMH | 22 1131 |
| 31.5 | TFC | — |
| 152.5 | AMH | B 0720 |
| 79.5 | TFC | — |
| 2 | DAGS | — |
| 0 | MWM | — |
| 2 | SAP | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 8 O'CLOCK |
| 150.3 | SAP | — |
| 150.3 | DAGS | — |
| 127.5 | TFC | — |
Properties (6)
- additional_info
- SC365657
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-01-04T02:54:51-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
