Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 4, 2019, 06:09 AM

  • B 0694_B 0693A _01032019_221534.mp4

Date
01/03/2019
W/O
740134
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00110
PipeID
P26185
Time
10:09 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6291
Sewer Name
B JOINT OUTFALL B - UNIT 8G
City
DUARTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
08
Purpose
Routine Assessment
Project
RFIR_WO_740134_TV22155_DEC2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
B 0694
Downstream MH
B 0693A
Dir. of Survey
Downstream
Length Surveyed
32 ft.
Total Length
32 ft.
Structural Index
3
Structural Quick
3600
Structural Rating
18
O&M Index
2
O&M Quick
2600
O&M Rating
12
Overall Index
3
Overall Quick
—
Overall Rating
30
Pipe schematic from manhole B 0694 to B 0693A
MH: B 0694MH: B 0693Adownstream0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - B 06940 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start30.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish30.3 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish32 ft. AMH - Downstream Manhole, Survey Ends - B 0693A32 ft. MGO - General Observation - COCKROACHES IN MANHOLE32 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK

Observation photos (4)

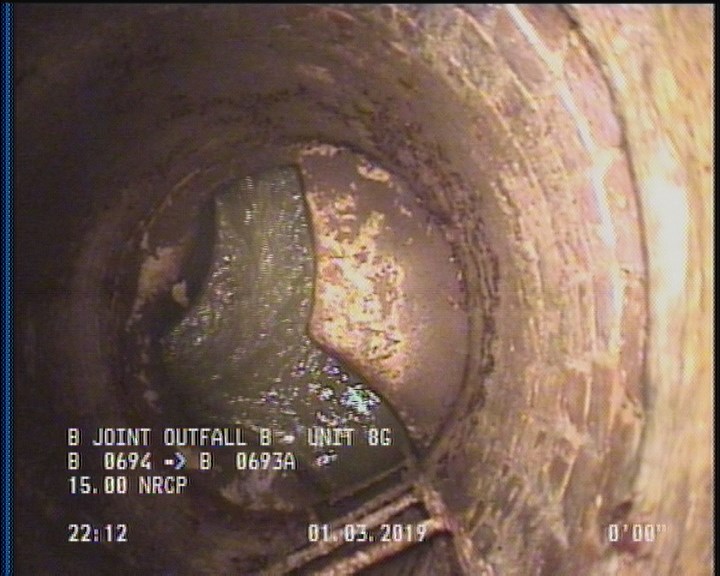

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

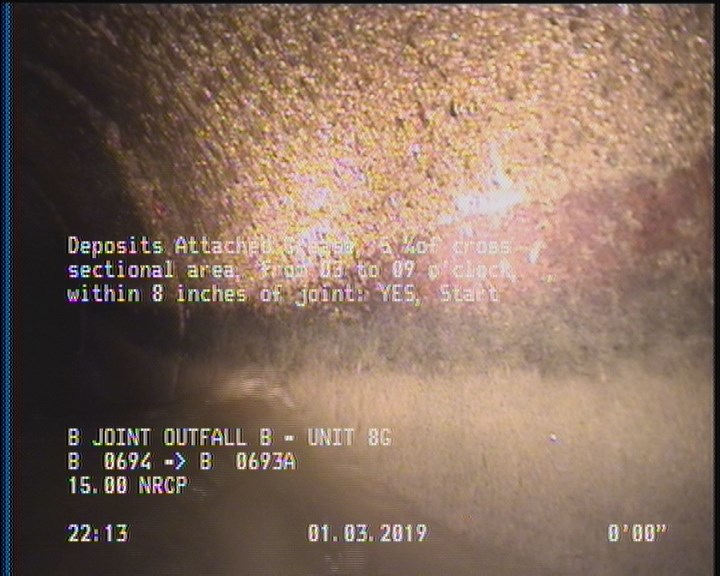

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

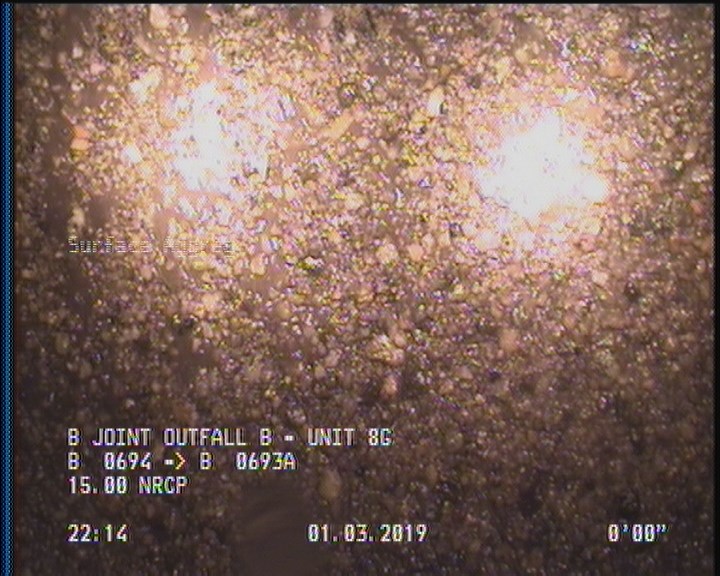

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

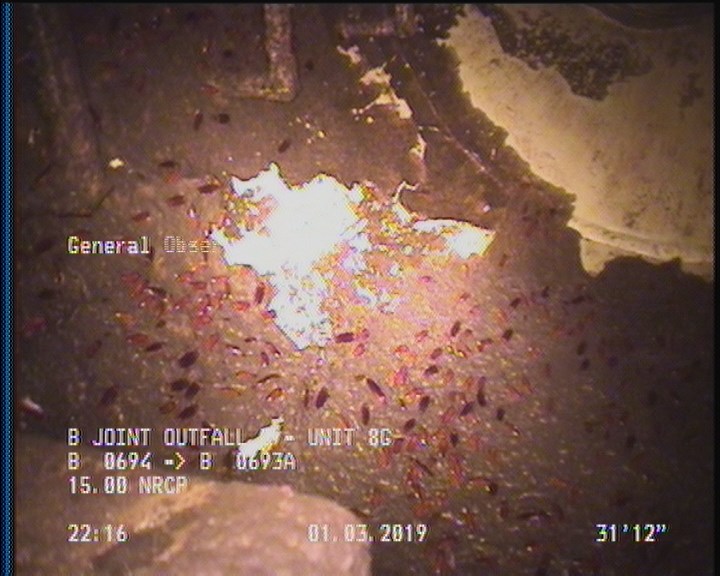

  • General Observation - COCKROACHES IN MANHOLE

    32 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P26185Work order 740134

Observations (12)

DistanceCodeObservation
32AMHB 0693A
0MGOCOCKROACHES IN MANHOLE
2DAGS—
32MGOCOCKROACHES IN MANHOLE
0MWL—
2SAP—
32MGOACTIVE CONNECTION AT MH 9 O'CLOCK
30.3DAGS—
0AMHB 0694
30.3SAP—
0MWM—
0MGOACTIVE CONNECTION AT MH 9 O'CLOCK

Properties (6)

additional_info
SC365657
custom_field_two
2
customer
LACSD
datetime
2019-01-03T22:09:30-08:00
documentation
PRO PIPE
is_lateral_inspection
false
