Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 4, 2019, 06:42 AM

  • B 0695_B 0694 _01032019_230207.mp4

Date
01/03/2019
W/O
740134
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00110
PipeID
P09365
Time
10:42 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6291
Sewer Name
B JOINT OUTFALL B - UNIT 8G
City
DUARTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
08
Purpose
Routine Assessment
Project
RFIR_WO_740134_TV22155_DEC2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
B 0695
Downstream MH
B 0694
Dir. of Survey
Downstream
Length Surveyed
461.7 ft.
Total Length
461.7 ft.
Structural Index
3
Structural Quick
3Q00
Structural Rating
276
O&M Index
2
O&M Quick
2Q00
O&M Rating
184
Overall Index
3
Overall Quick
—
Overall Rating
460
Pipe schematic from manhole B 0695 to B 0694
MH: B 0695MH: B 0694downstream0 ft. AMH - Upstream Manhole, Survey Begins - B 06950 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2 ft. MGO - General Observation - MAG COATING THROUGHOUT 70%50.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"89 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"104.2 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"145.7 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"160 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"203 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"214.2 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"261.2 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"267.9 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"315.9 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"317.9 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"375.3 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"378.4 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"393.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"460.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish460.6 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish461.7 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 12 O'CLOCK461.7 ft. MGO - General Observation - COCKROACHES IN MANHOLE461.7 ft. AMH - Downstream Manhole, Survey Ends - B 0694

Observation photos (5)

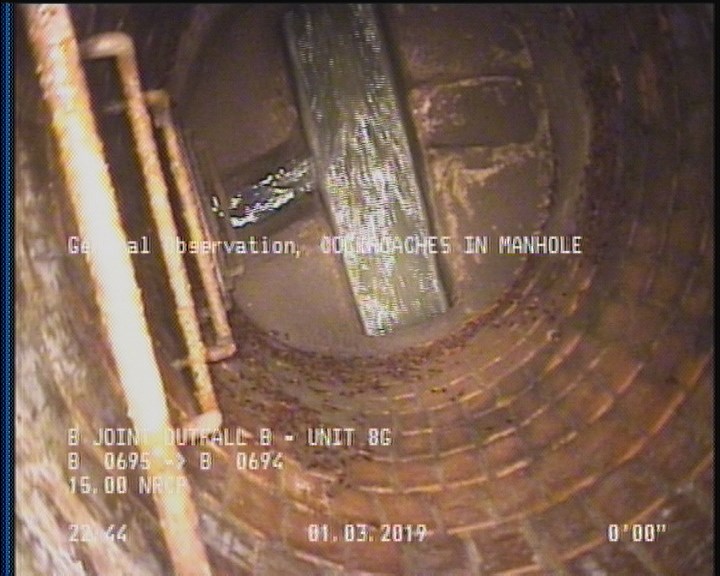

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

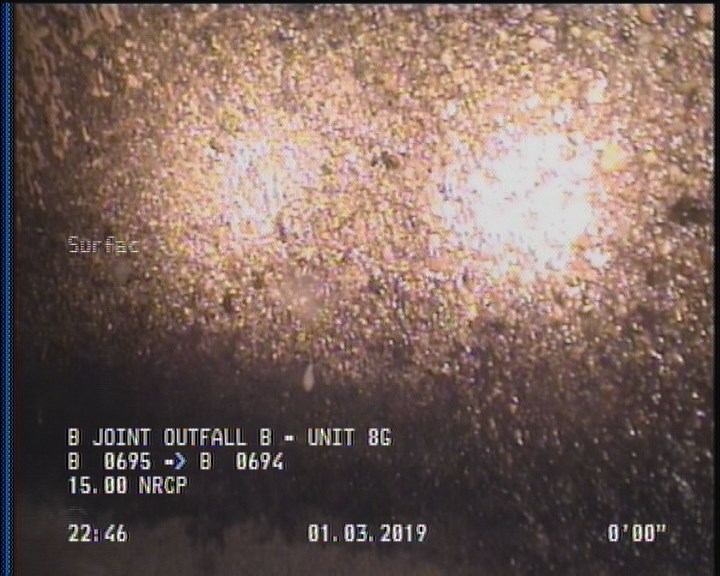

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

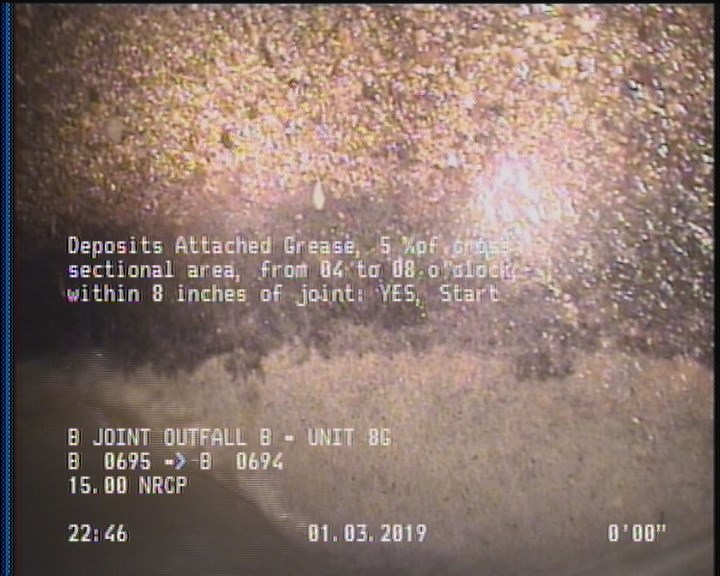

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

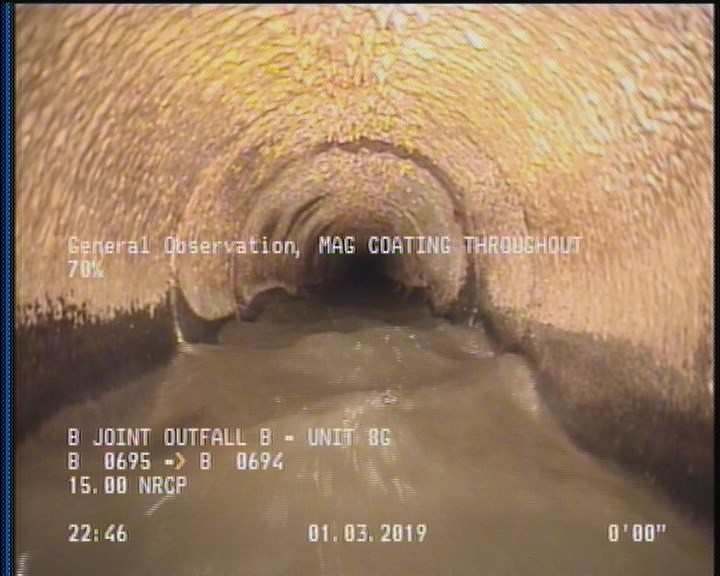

  • General Observation - MAG COATING THROUGHOUT 70%

    2 ft. - General Observation - MAG COATING THROUGHOUT 70%

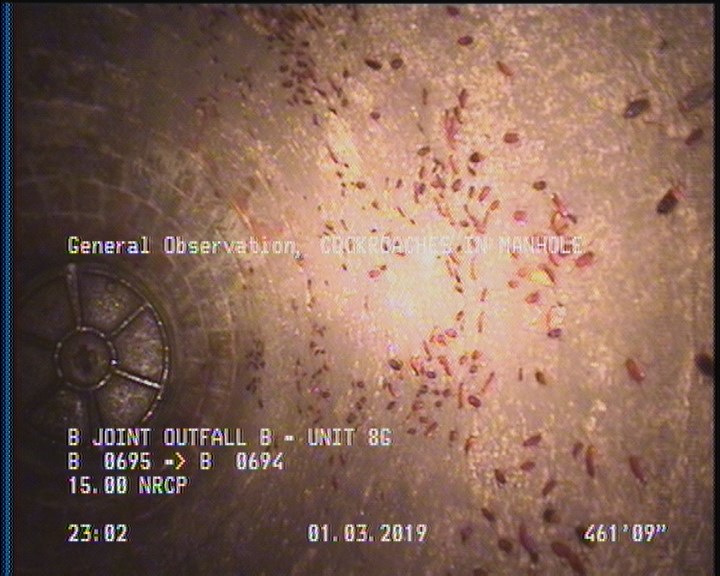

  • General Observation - COCKROACHES IN MANHOLE

    461.7 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P09365Work order 740134

Observations (27)

DistanceCodeObservation
160TFA—
214.2TFA—
315.9TFA—
461.7MGOACTIVE CONNECTION AT MH 12 O'CLOCK
0AMHB 0695
2SAP—
267.9TFA—
145.7TBA—
0MWM—
317.9TFA—
393.5TFC—
104.2TFA—
2DAGS—
2MGOMAG COATING THROUGHOUT 70%
461.7MGOCOCKROACHES IN MANHOLE
89TBA—
375.3TFA—
460.6DAGS—
0MGOACTIVE CONNECTION AT MH 9 O'CLOCK
460.6SAP—
0MWL—
0MGOCOCKROACHES IN MANHOLE
378.4TFA—
261.2TFA—
50.5TFA—
203TFA—
461.7AMHB 0694

Properties (6)

additional_info
SC365657
custom_field_two
2
customer
LACSD
datetime
2019-01-03T22:42:31-08:00
documentation
PRO PIPE
is_lateral_inspection
false
