Wastewater/Activity/PacpInspection/1.0Dec 27, 2018, 06:28 AM
22 0776_22 0757 _12262018_224313.mp4
- Date
- 12/26/2018
- W/O
- 740287
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00823
- PipeID
- P17137
- Time
- 10:28 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6282
- Sewer Name
- 22 PUDDINGSTONE TRUNK, SECTION 4
- City
- SAN DIMAS
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- WO_740287_TV22097_DEC2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 22 0776
- Downstream MH
- 22 0757
- Dir. of Survey
- Downstream
- Length Surveyed
- 328.3 ft.
- Total Length
- 328.3 ft.
- Structural Index
- 3
- Structural Quick
- 3L00
- Structural Rating
- 195
- O&M Index
- 2
- O&M Quick
- 2L11
- O&M Rating
- 131
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 326
Observation photos (3)

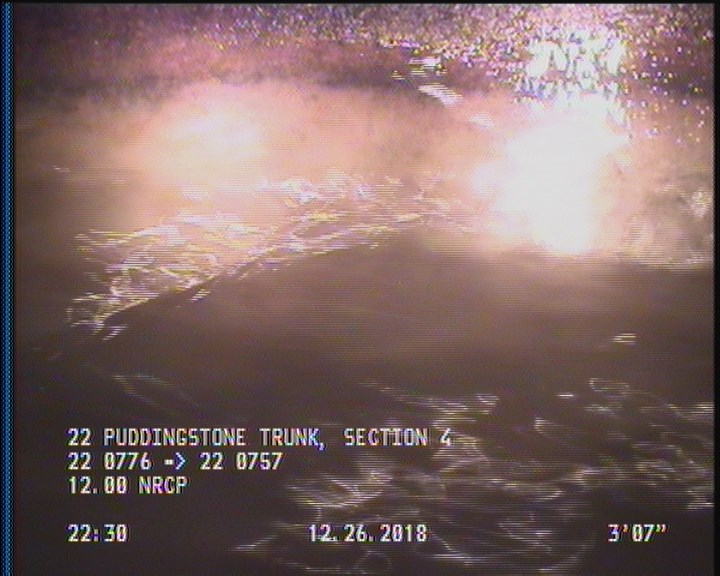

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

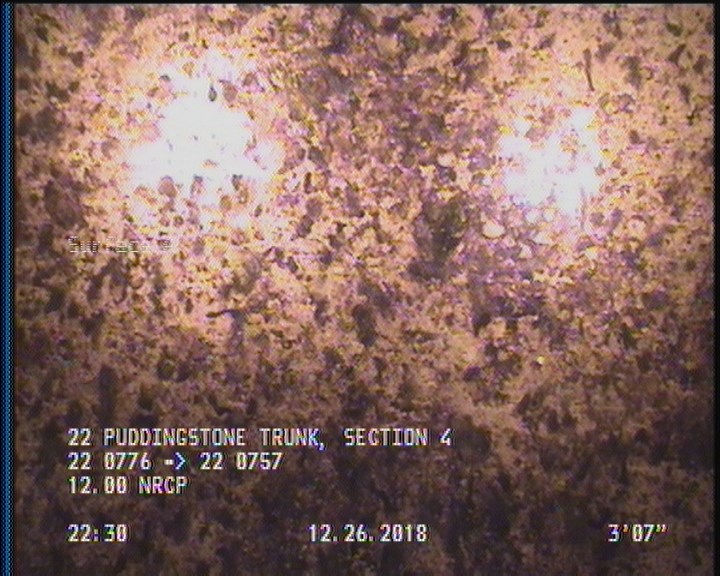

3.6 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

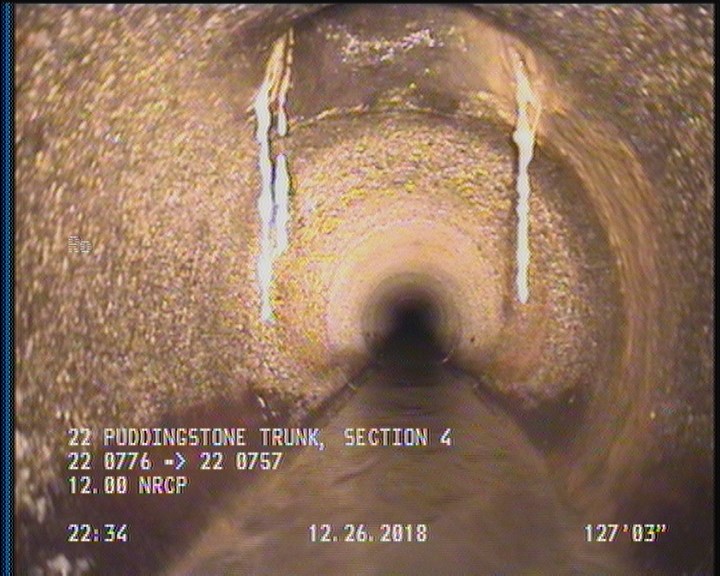

127.3 ft. - Roots Fine Lateral, at 12 o'clock
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 3.6 | SAP | — |
| 0 | MWL | — |
| 328.3 | AMH | 22 0757 |
| 2 | DAGS | — |
| 327.7 | SAP | — |
| 127.3 | TFA | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOC |
| 202.8 | TFA | — |
| 0 | AMH | 22 0776 |
| 328.3 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOC |
| 327.7 | DAGS | — |
| 280.1 | TFA | — |
| 54.9 | TFA | — |
| 127.3 | RFL | — |
| 0 | MWM | — |
Properties (6)
- additional_info
- SC365398
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-12-26T22:28:21-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
