Wastewater/Activity/PacpInspection/1.0Dec 27, 2018, 07:37 AM
22 0743_22 0742 _12262018_235051.mp4
- Date
- 12/26/2018
- W/O
- 740287
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00821
- PipeID
- P17099
- Time
- 11:37 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6282
- Sewer Name
- 22 PUDDINGSTONE TRUNK, SECTS 1&2
- City
- SAN DIMAS
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- WO_740287_TV22097_DEC2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 22 0743
- Downstream MH
- 22 0742
- Dir. of Survey
- Downstream
- Length Surveyed
- 298.3 ft.
- Total Length
- 298.3 ft.
- Structural Index
- 3
- Structural Quick
- 3K2K
- Structural Rating
- 290
- O&M Index
- 2
- O&M Quick
- 412K
- O&M Rating
- 122
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 412
Observation photos (3)

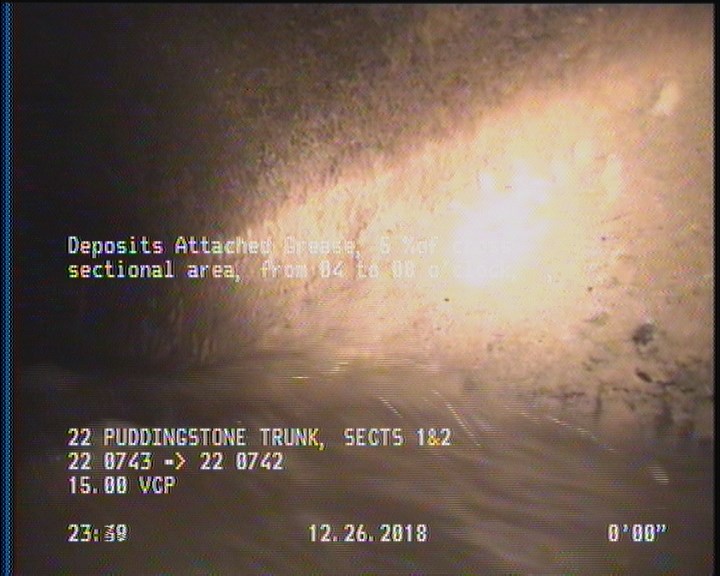

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

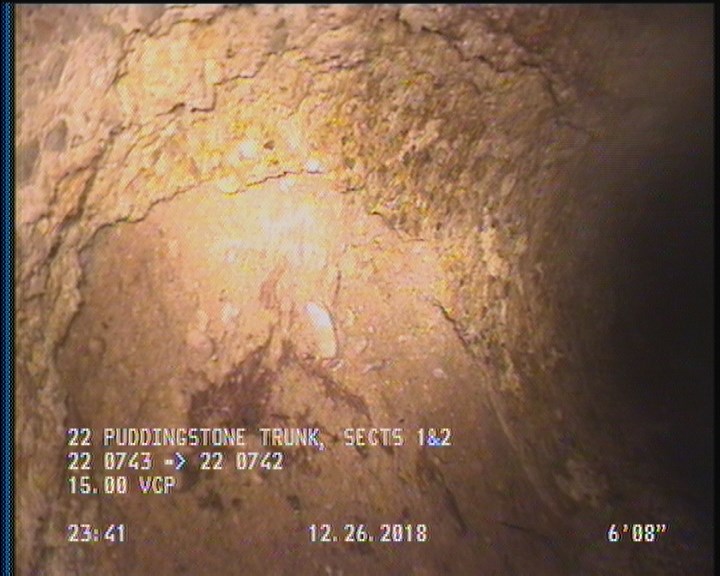

4.8 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

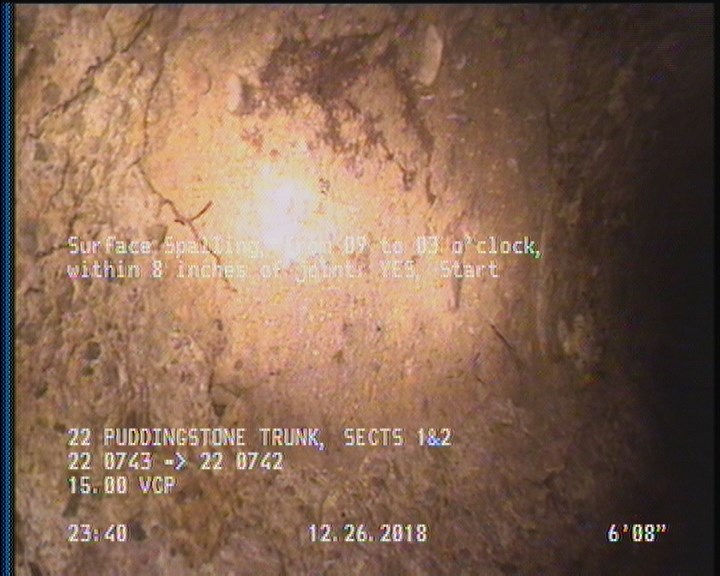

6.7 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 298.3 | AMH | 22 0742 |
| 2 | DAGS | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 296.2 | DAGS | — |
| 261.4 | TFC | — |
| 4.8 | SAP | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 6 O'CLOC |
| 296.2 | SSS | — |
| 296.2 | SAP | — |
| 160.6 | TFC | — |
| 6.7 | SSS | — |
| 0 | AMH | 22 0743 |
Properties (6)
- additional_info
- SC365398
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-12-26T23:37:06-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
