Wastewater/Activity/PacpInspection/1.0Mar 19, 2019, 08:55 AM
18 0411_18 0410_03192019_020639.mp4
- Date
- 03/19/2019
- W/O
- 756007
- Weather
- Dry
- Operator/Surveyor
- E.RUIZ
- Sewer ID
- Z00699
- PipeID
- P14246
- Time
- 1:55 AM
- Certificate
- U-715-07000753
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6482
- Sewer Name
- 18 SANTA FE STREET RELIEF TRUNK
- City
- NORWALK
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- RFIR_WO_756007_TV18173_MAR2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 18 0410
- Downstream MH
- 18 0411
- Dir. of Survey
- Upstream
- Length Surveyed
- 130.2 ft.
- Total Length
- 130.2 ft.
- Structural Index
- 3
- Structural Quick
- 3D00
- Structural Rating
- 72
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 76
Observation photos (2)

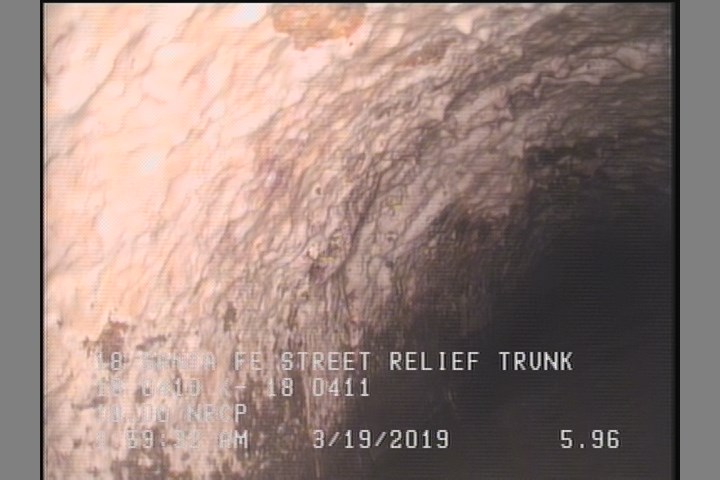

6 ft. - General Observation - MAG COAT THROUGHOUT PIPE

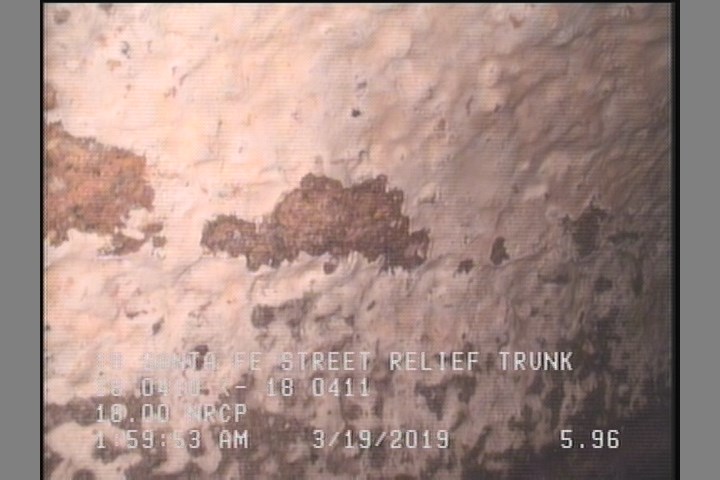

6 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 124.9 | SAP | — |
| 0 | AMH | 18 0410 |
| 6 | MGO | MAG COAT THROUGHOUT PIPE |
| 130.2 | AMH | 18 0411 |
| 0 | MWL | — |
| 6 | SAP | — |
| 0 | MWM | — |
Properties (5)
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-03-19T01:55:55-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
