Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 19, 2019, 10:27 AM

  • 18 0407_18 0406_03192019_033459.mp4

Date
03/19/2019
W/O
756007
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00699
PipeID
P14242
Time
3:27 AM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6482
Sewer Name
18 SANTA FE STREET RELIEF TRUNK
City
NORWALK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
21
Purpose
Routine Assessment
Project
RFIR_WO_756007_TV18173_MAR2019
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
18 0407
Downstream MH
18 0406
Dir. of Survey
Downstream
Length Surveyed
159.8 ft.
Total Length
159.8 ft.
Structural Index
3
Structural Quick
413E
Structural Rating
97
O&M Index
3
O&M Quick
4111
O&M Rating
5
Overall Index
3
Overall Quick
—
Overall Rating
102
Pipe schematic from manhole 18 0407 to 18 0406
MH: 18 0407MH: 18 0406downstream0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 04074.5 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start4.5 ft. MGO - General Observation - MAG COAT THROUGHOUT PIPE72.2 ft. RFJ - Roots Fine Joint, at 01 o'clock, within 8 inches of joint: YES133.9 ft. FM - Fracture Multiple, from 01 to 04 o'clock, within 8 inches of joint: YES157.4 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish159.8 ft. AMH - Downstream Manhole, Survey Ends - 18 0406

Observation photos (3)

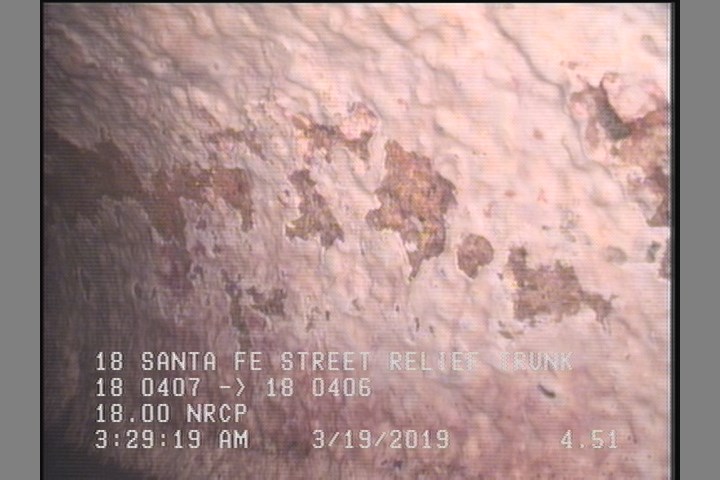

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    4.5 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

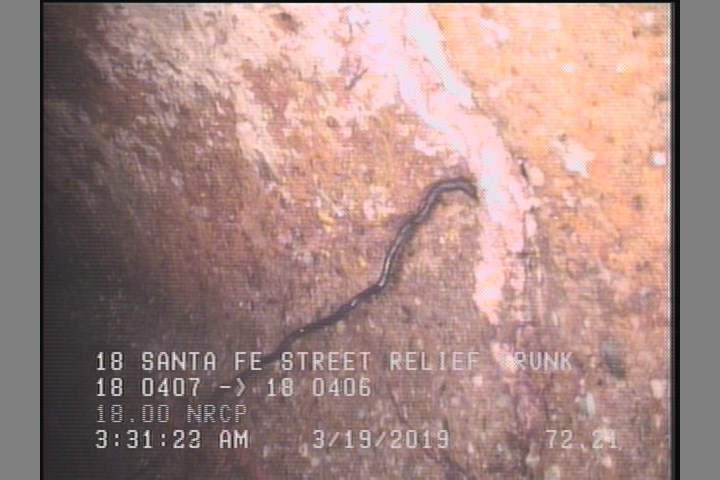

  • Roots Fine Joint, at 01 o'clock, within 8 inches of joint: YES

    72.2 ft. - Roots Fine Joint, at 01 o'clock, within 8 inches of joint: YES

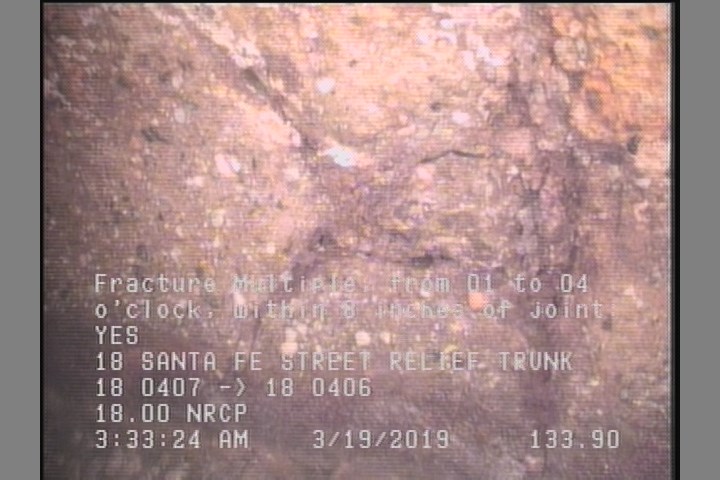

  • Fracture Multiple, from 01 to 04 o'clock, within 8 inches of joint: YES

    133.9 ft. - Fracture Multiple, from 01 to 04 o'clock, within 8 inches of joint: YES

All inspections of P14242Work order 756007

Observations (9)

DistanceCodeObservation
4.5SAP—
72.2RFJ—
133.9FM—
4.5MGOMAG COAT THROUGHOUT PIPE
0MWM—
159.8AMH18 0406
0MWL—
157.4SAP—
0AMH18 0407

Properties (5)

custom_field_two
2
customer
LACSD
datetime
2019-03-19T03:27:06-07:00
documentation
PROPIPE
is_lateral_inspection
false
