Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 20, 2019, 09:12 AM

  • 05 1604_05 1603_03202019_023004.mp4

Date
03/20/2019
W/O
755959
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00551
PipeID
P06828
Time
2:12 AM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6485
Sewer Name
05 203RD STREET TRUNK
City
TORRANCE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
27
Purpose
Routine Assessment
Project
RFIR_WO_755959_TV05176_MAR2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
05 1604
Downstream MH
05 1603
Dir. of Survey
Downstream
Length Surveyed
297.8 ft.
Total Length
297.8 ft.
Structural Index
4
Structural Quick
5B4H
Structural Rating
245
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
4
Overall Quick
—
Overall Rating
247
Pipe schematic from manhole 05 1604 to 05 1603
MH: 05 1604MH: 05 1603downstream0 ft. AMH - Upstream Manhole, Survey Begins - 05 16040 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 10 %of cross sectional area4.8 ft. FH2 - Fracture Longitudinal Hinge, 2, from 09 to 03 o'clock, within 8 inches of joint: YES, Start20.1 ft. B - Broken, from 09 to 03 o'clock, within 8 inches of joint: YES, Start20.1 ft. FH2 - Fracture Longitudinal Hinge, 2, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish21.9 ft. TBA - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: YES, 8"59.4 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 8"83.2 ft. B - Broken, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish83.2 ft. FH2 - Fracture Longitudinal Hinge, 2, from 09 to 03 o'clock, within 8 inches of joint: YES, Start112.1 ft. TBI - Tap Break-In Intruding, at 12 o'clock, -, -, within 8 inches of joint: YES, 8", 1"273.6 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 8"294.1 ft. FH2 - Fracture Longitudinal Hinge, 2, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish297.8 ft. AMH - Downstream Manhole, Survey Ends - 05 1603

Observation photos (3)

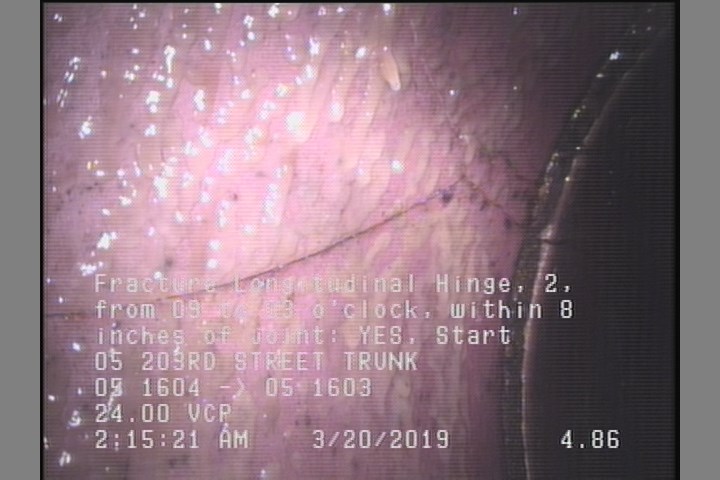

  • Fracture Longitudinal Hinge, 2, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    4.8 ft. - Fracture Longitudinal Hinge, 2, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

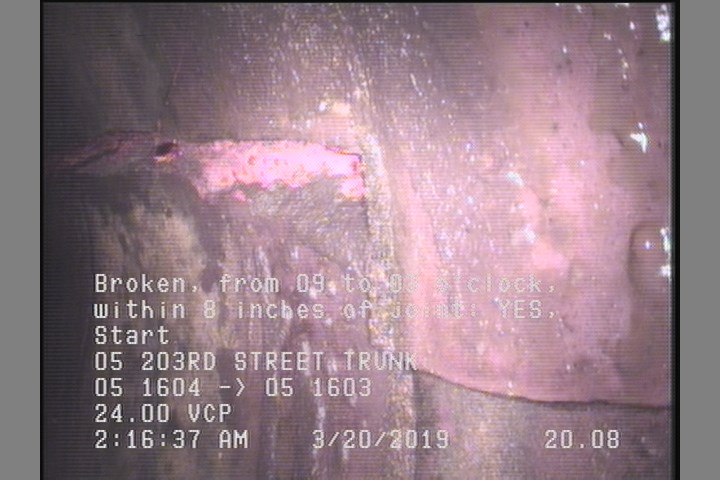

  • Broken, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    20.1 ft. - Broken, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

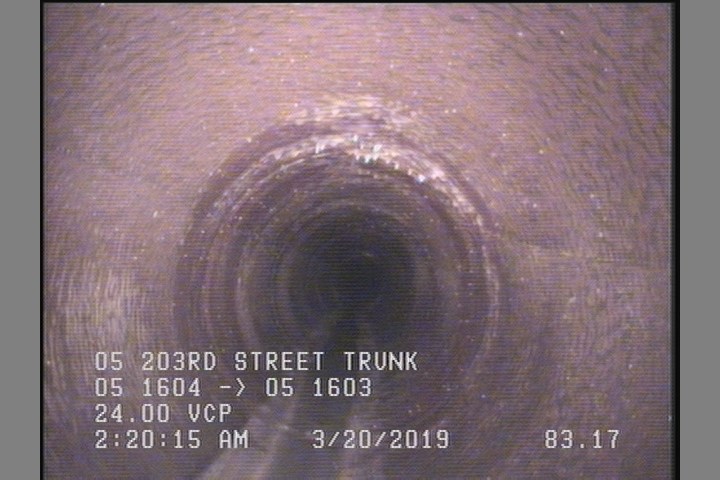

  • Fracture Longitudinal Hinge, 2, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    83.2 ft. - Fracture Longitudinal Hinge, 2, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P06828Work order 755959

Observations (14)

DistanceCodeObservation
112.1TBI—
297.8AMH05 1603
273.6TF—
21.9TBA—
0AMH05 1604
4.8FH2—
294.1FH2—
0MWL—
0MWM—
83.2B—
59.4TFA—
20.1B—
83.2FH2—
20.1FH2—

Properties (5)

custom_field_two
1
customer
LACSD
datetime
2019-03-20T02:12:57-07:00
documentation
PROPIPE
is_lateral_inspection
false
