Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 11, 2019, 05:56 AM

  • H 1287_H 1286 _01102019_220919.mp4

Date
01/10/2019
W/O
745550
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z01183
PipeID
P17303
Time
9:56 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6301
Sewer Name
H JOINT OUTFALL H - UNIT 8L
City
AZUSA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
11
Purpose
Routine Assessment
Project
RFIR_WO_745550_TV22154_JAN2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
H 1287
Downstream MH
H 1286
Dir. of Survey
Downstream
Length Surveyed
308.8 ft.
Total Length
308.8 ft.
Structural Index
3
Structural Quick
3K2K
Structural Rating
305
O&M Index
2
O&M Quick
2K00
O&M Rating
122
Overall Index
2
Overall Quick
—
Overall Rating
427
Pipe schematic from manhole H 1287 to H 1286
MH: H 1287MH: H 1286downstream0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - H 12872 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start2 ft. MGO - General Observation - MAG COATING THROUGHOUT 50%2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start301.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"307.3 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish307.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish307.3 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish308.8 ft. AMH - Downstream Manhole, Survey Ends - H 1286308.8 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK308.8 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (5)

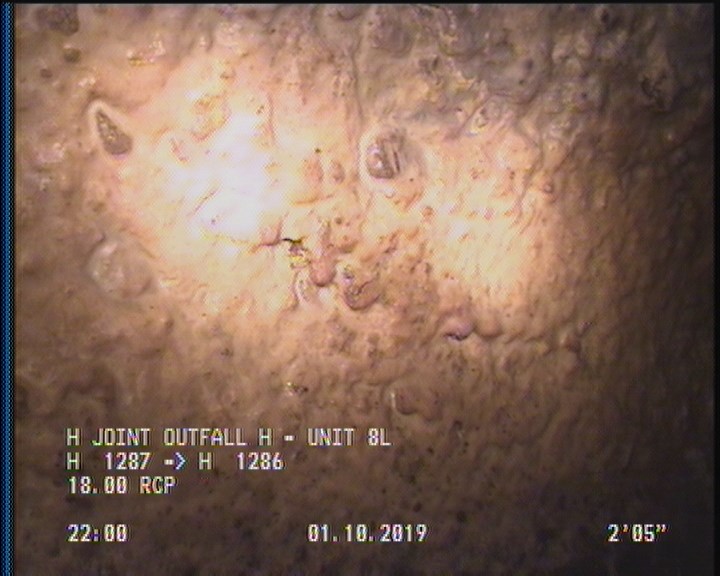

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

  • General Observation - MAG COATING THROUGHOUT 50%

    2 ft. - General Observation - MAG COATING THROUGHOUT 50%

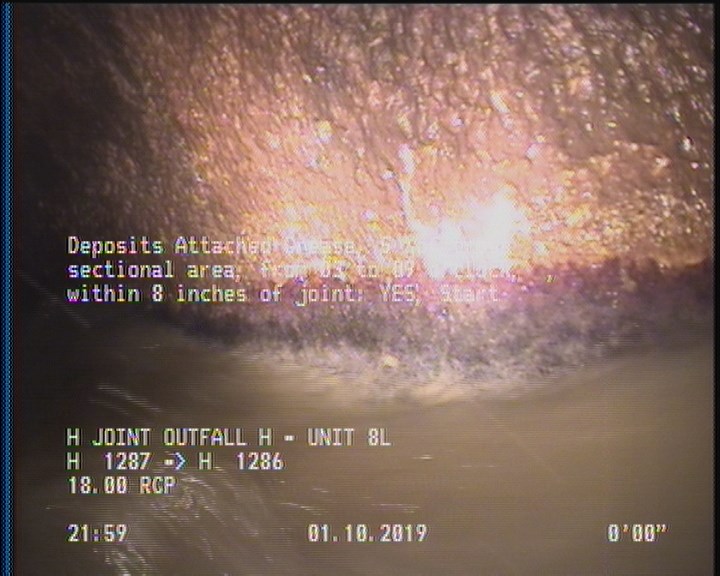

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

  • General Observation - COCKROACHES IN MANHOLE

    308.8 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P17303Work order 745550

Observations (14)

DistanceCodeObservation
301.2TFC—
2SAP—
0MWL—
2MGOMAG COATING THROUGHOUT 50%
308.8AMHH 1286
0MWM—
0AMHH 1287
2DAGS—
308.8MGOACTIVE CONNECTION AT MH 3 O'CLOCK
308.8MGOCOCKROACHES IN MANHOLE
307.3SAP—
2SSS—
307.3DAGS—
307.3SSS—

Properties (6)

additional_info
SC365667
custom_field_two
2
customer
LACSD
datetime
2019-01-10T21:56:02-08:00
documentation
PRO PIPE
is_lateral_inspection
false
