Wastewater/Activity/PacpInspection/1.0Jan 11, 2019, 06:28 AM
H 1285_H 1284 _01102019_224700.mp4
- Date
- 01/10/2019
- W/O
- 745550
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01183
- PipeID
- P17301
- Time
- 10:28 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6301
- Sewer Name
- H JOINT OUTFALL H - UNIT 8L
- City
- AZUSA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- RFIR_WO_745550_TV22154_JAN2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- H 1285
- Downstream MH
- H 1284
- Dir. of Survey
- Downstream
- Length Surveyed
- 316.3 ft.
- Total Length
- 316.3 ft.
- Structural Index
- 3
- Structural Quick
- 3L2L
- Structural Rating
- 315
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 126
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 441
Observation photos (5)

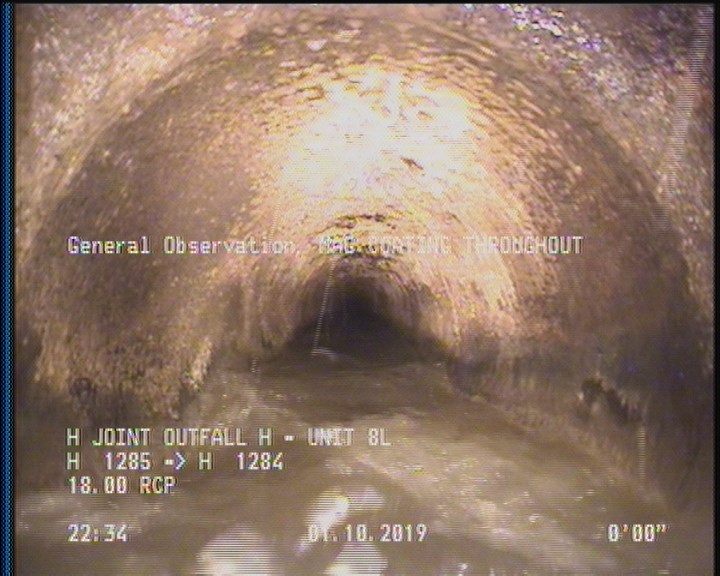

2 ft. - General Observation - MAG COATING THROUGHOUT 50%.

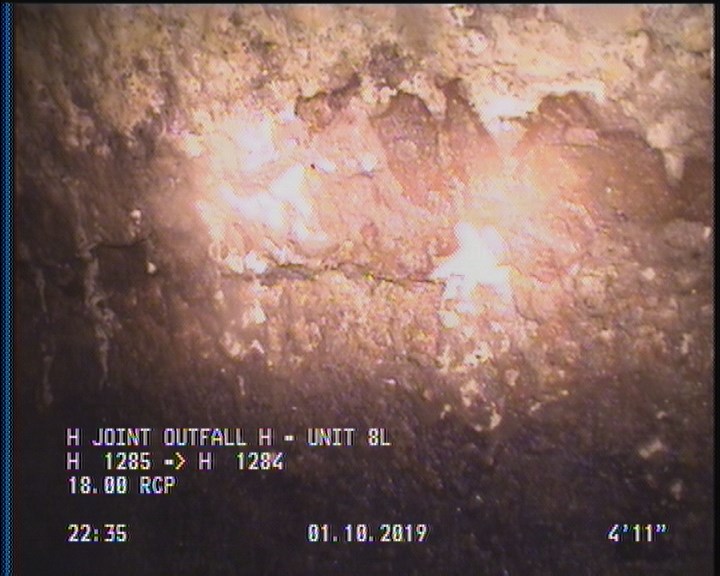

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

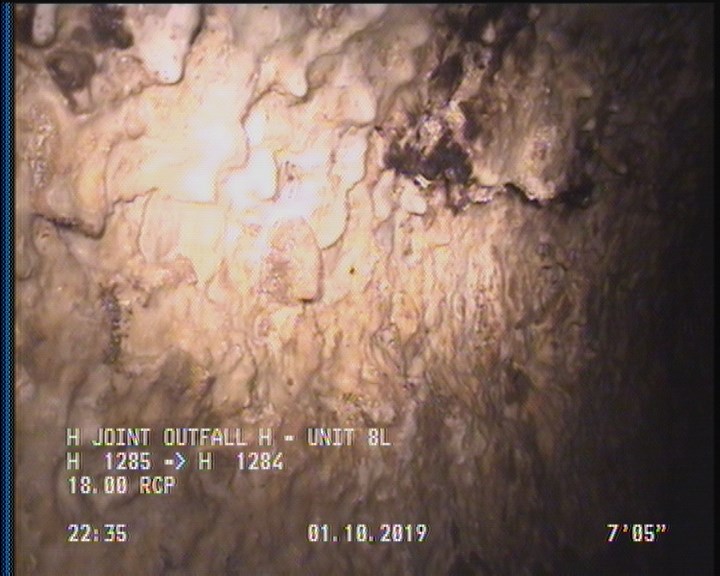

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

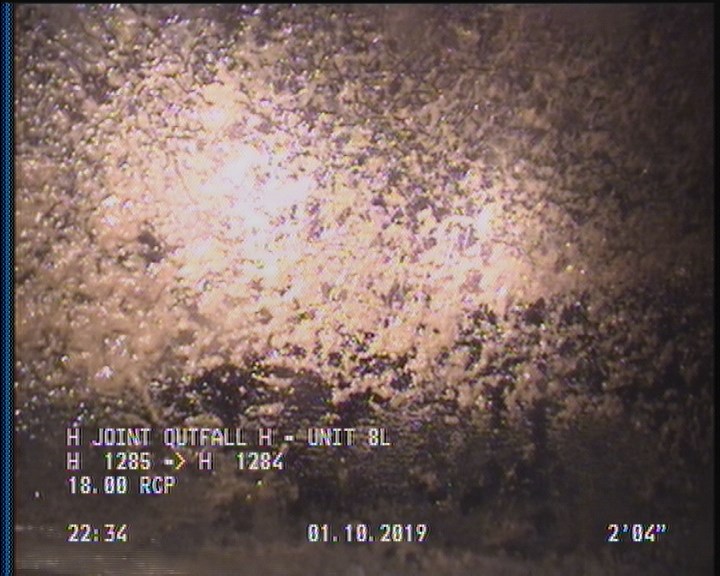

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

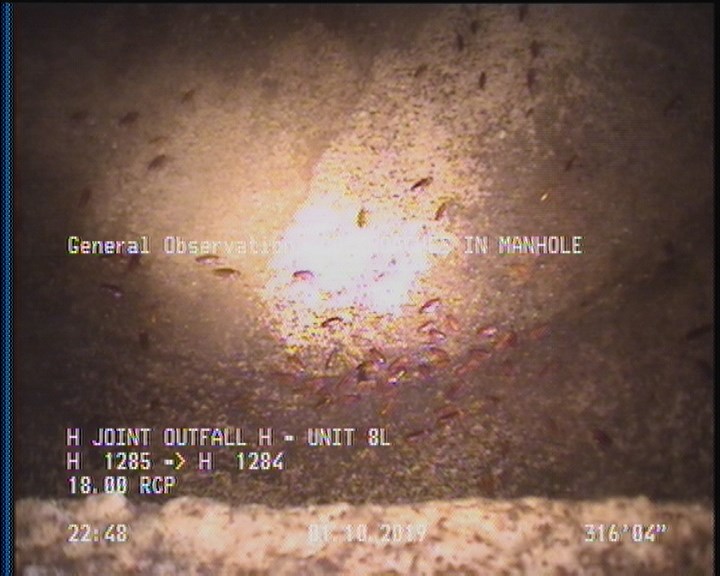

316.3 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (24)
| Distance | Code | Observation |
|---|---|---|
| 316.3 | MGO | COCKROACHES IN MANHOLE |
| 285.2 | TFC | — |
| 116.7 | TFC | — |
| 2 | MGO | MAG COATING THROUGHOUT 50%. |
| 65.2 | TF | — |
| 0 | MWL | — |
| 124.9 | TF | — |
| 60.7 | TFC | — |
| 68.5 | TFC | — |
| 315 | SAP | — |
| 315 | SSS | — |
| 0 | AMH | H 1285 |
| 221.2 | TFC | — |
| 2 | SSS | — |
| 0 | MWM | — |
| 2 | SAP | — |
| 229.1 | TF | — |
| 316.3 | AMH | H 1284 |
| 173.1 | TFC | — |
| 277.3 | TFC | — |
| 315 | DAGS | — |
| 2 | DAGS | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 12.3 | TFC | — |
Properties (6)
- additional_info
- SC365667
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-01-10T22:28:52-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
