Wastewater/Activity/PacpInspection/1.0Jan 11, 2019, 07:43 AM
H 1289_H 1288 _01102019_235639.mp4
- Date
- 01/10/2019
- W/O
- 745550
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01183
- PipeID
- P17305
- Time
- 11:43 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6301
- Sewer Name
- H JOINT OUTFALL H - UNIT 8L
- City
- AZUSA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- RFIR_WO_745550_TV22154_JAN2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- H 1288
- Downstream MH
- H 1289
- Dir. of Survey
- Upstream
- Length Surveyed
- 308.9 ft.
- Total Length
- 308.9 ft.
- Structural Index
- 3
- Structural Quick
- 3K2K
- Structural Rating
- 305
- O&M Index
- 2
- O&M Quick
- 2K00
- O&M Rating
- 122
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 427
Observation photos (4)

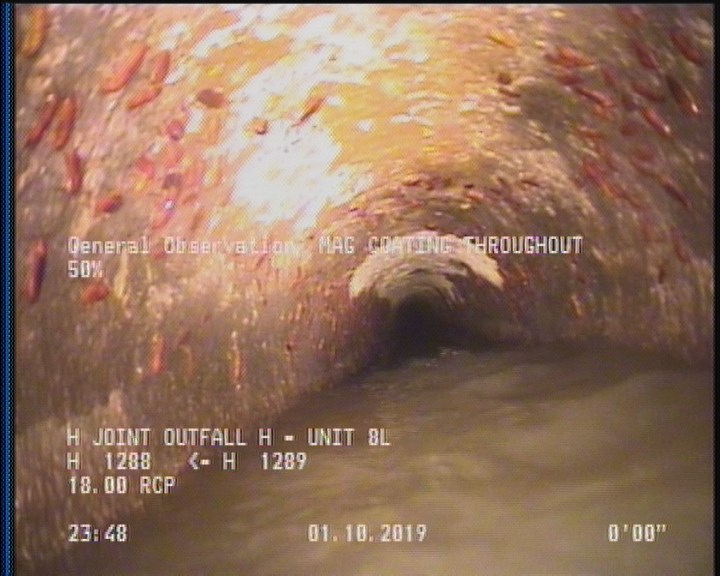

2 ft. - General Observation - MAG COATING THROUGHOUT 50%

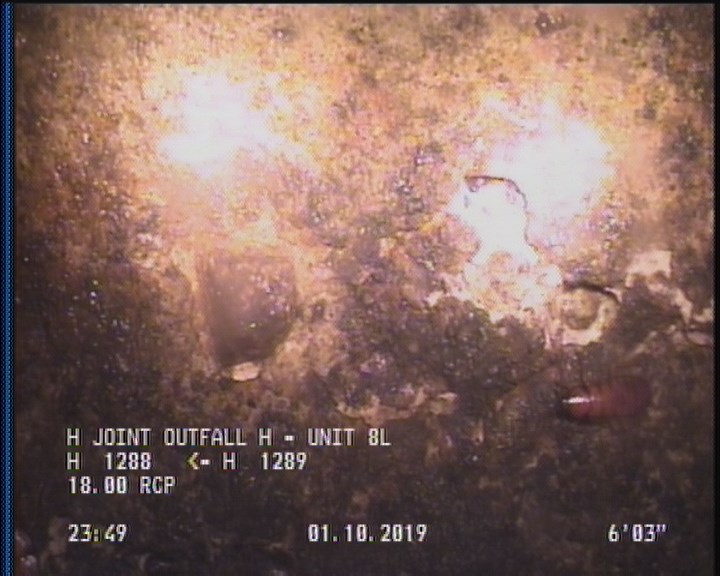

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

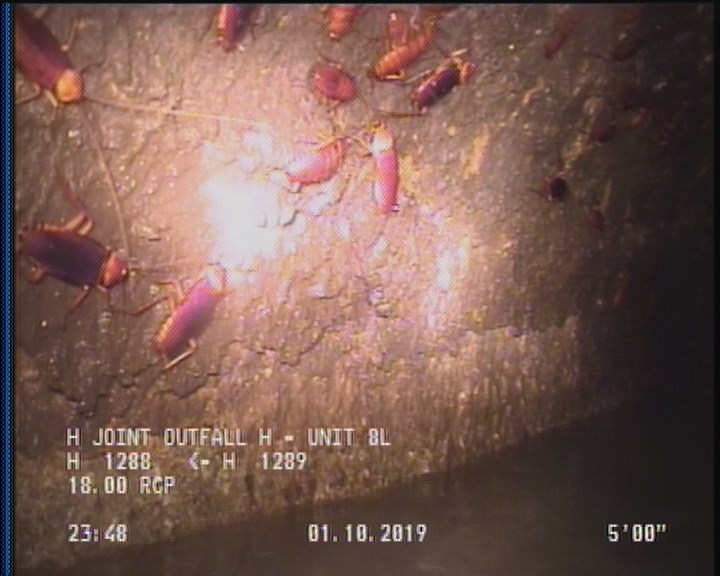

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

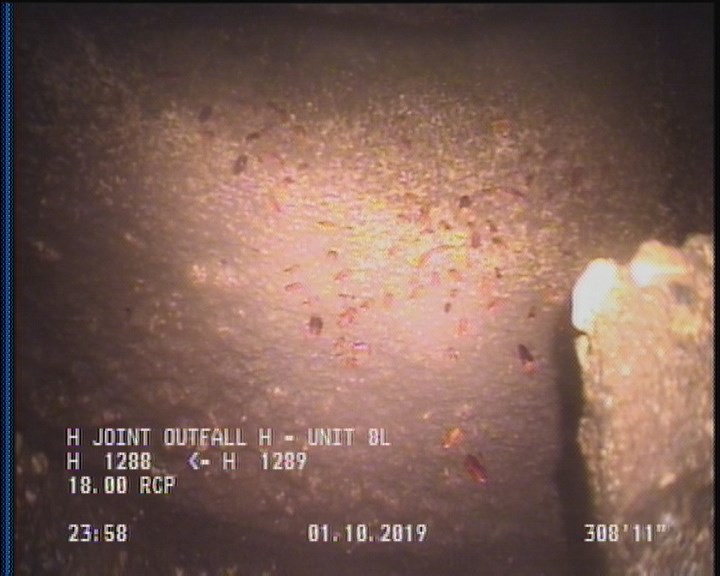

308.9 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 308.9 | AMH | H 1289 |
| 2 | MGO | MAG COATING THROUGHOUT 50% |
| 307.3 | DAGS | — |
| 0 | AMH | H 1288 |
| 2 | SAP | — |
| 2 | SSS | — |
| 0 | MWL | — |
| 308.9 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 2 | DAGS | — |
| 307.3 | SAP | — |
| 0 | MWM | — |
| 307.3 | SSS | — |
| 308.9 | MGO | COCKROACHES IN MANHOLE |
Properties (6)
- additional_info
- SC365667
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-01-10T23:43:13-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
