Wastewater/Activity/PacpInspection/1.0Jan 9, 2019, 10:01 AM
29 0056_29 0055_01092019_020941.mp4
- Date
- 01/09/2019
- W/O
- 740646
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00020
- PipeID
- P23836
- Time
- 2:01 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6296
- Sewer Name
- 29 EASTSIDE INTERCEPTOR TRUNK
- City
- LONG BEACH
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- RFIR_WO_740646_TV29114_DEC2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 29 0056
- Downstream MH
- 29 0055
- Dir. of Survey
- Downstream
- Length Surveyed
- 98.6 ft.
- Total Length
- 98.6 ft.
- Structural Index
- 3
- Structural Quick
- 4136
- Structural Rating
- 22
- O&M Index
- 2
- O&M Quick
- 2C00
- O&M Rating
- 38
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 60
Observation photos (5)

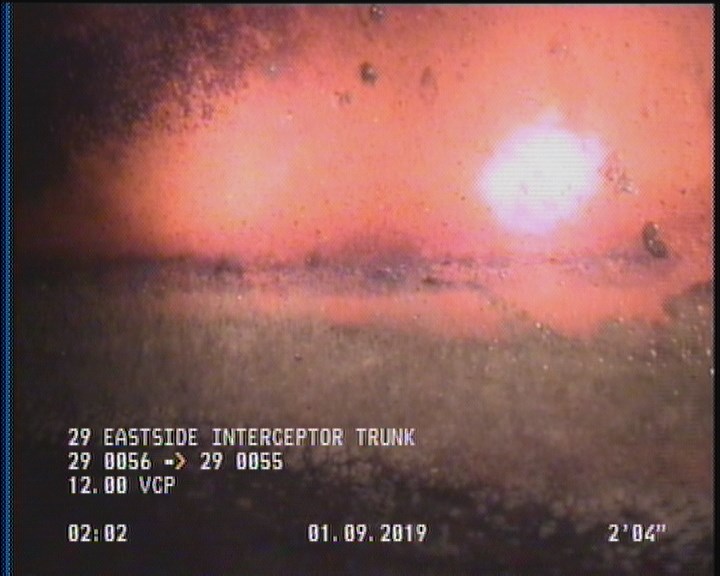

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

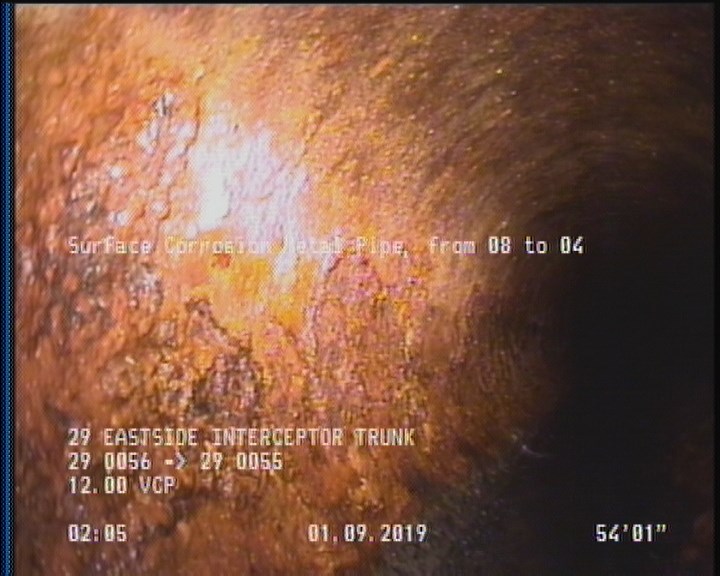

54.1 ft. - Surface Corrosion Metal Pipe, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

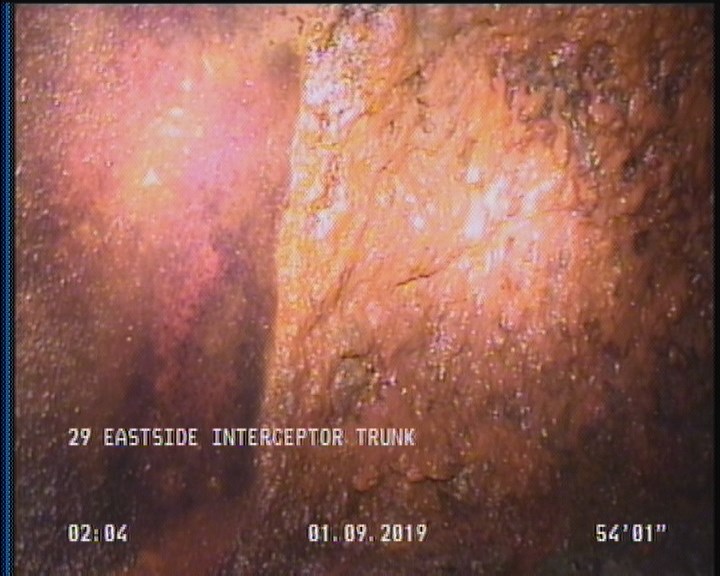

54.1 ft. - Material Change, Cast Iron

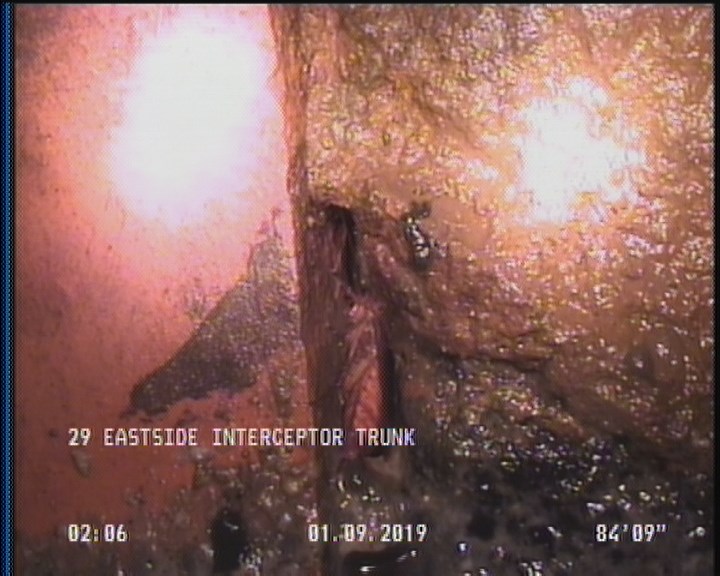

84.8 ft. - Material Change, Vitrified clay pipe

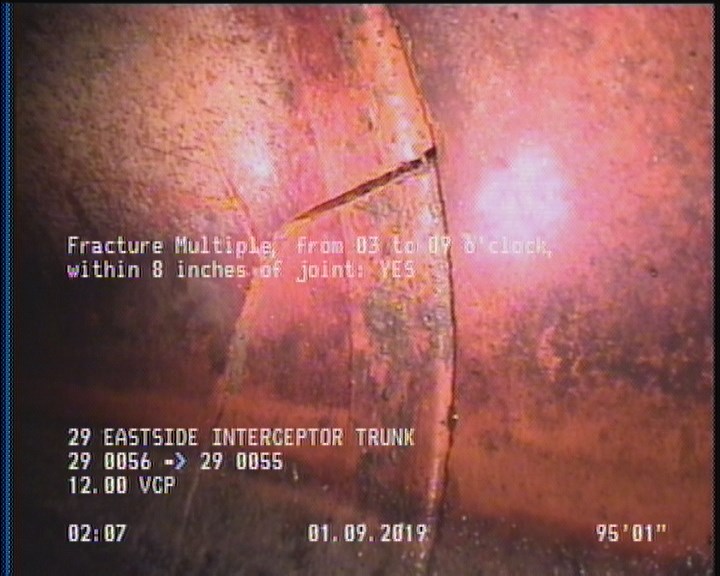

95.1 ft. - Fracture Multiple, from 03 to 09 o'clock, within 8 inches of joint: YES
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 54.1 | SCP | — |
| 84.8 | SCP | — |
| 95.1 | FM | — |
| 98.6 | MGO | ACTIVE CONNECTIONS AT MH 3 AND 9 O'CLOCK |
| 97.3 | DAGS | — |
| 0 | MWM | — |
| 0 | AMH | 29 0056 |
| 2 | DAGS | — |
| 0 | MWL | — |
| 98.6 | AMH | 29 0055 |
| 54.1 | MMC | — |
| 84.8 | MMC | — |
Properties (6)
- additional_info
- SC365662
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-01-09T02:01:12-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
