Wastewater/Activity/PacpInspection/1.0Jan 9, 2019, 08:20 AM
29 0049_29 0048 _01092019_003841.mp4
- Date
- 01/09/2019
- W/O
- 740646
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00020
- PipeID
- P23829
- Time
- 12:20 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6296
- Sewer Name
- 29 EASTSIDE INTERCEPTOR TRUNK
- City
- LONG BEACH
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- RFIR_WO_740646_TV29114_DEC2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 29 0049
- Downstream MH
- 29 0048
- Dir. of Survey
- Downstream
- Length Surveyed
- 456 ft.
- Total Length
- 456 ft.
- Structural Index
- 3
- Structural Quick
- 463K
- Structural Rating
- 201
- O&M Index
- 2
- O&M Quick
- 2Q00
- O&M Rating
- 182
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 383
Observation photos (4)

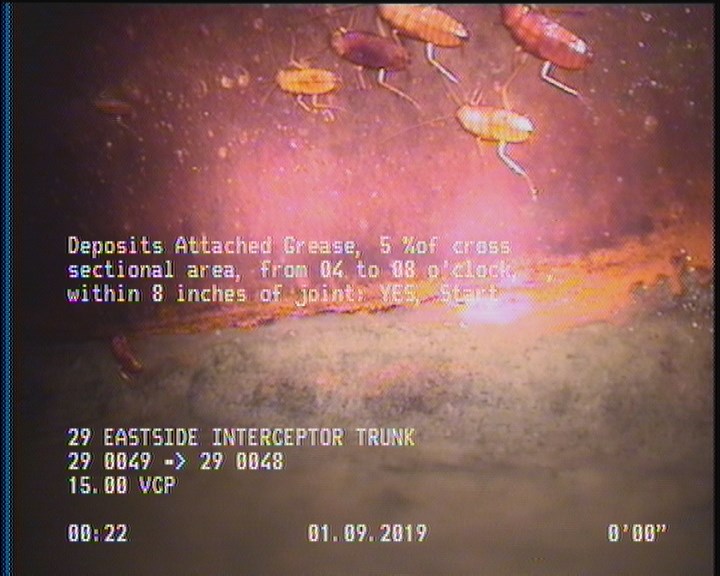

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

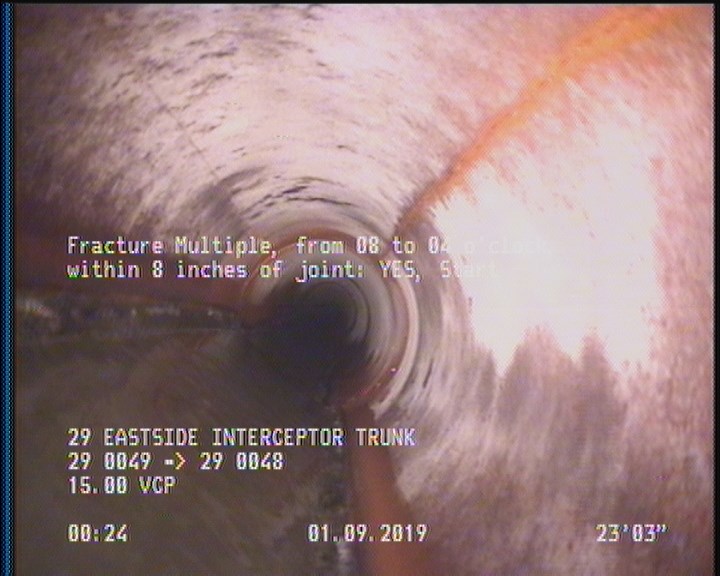

23.3 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

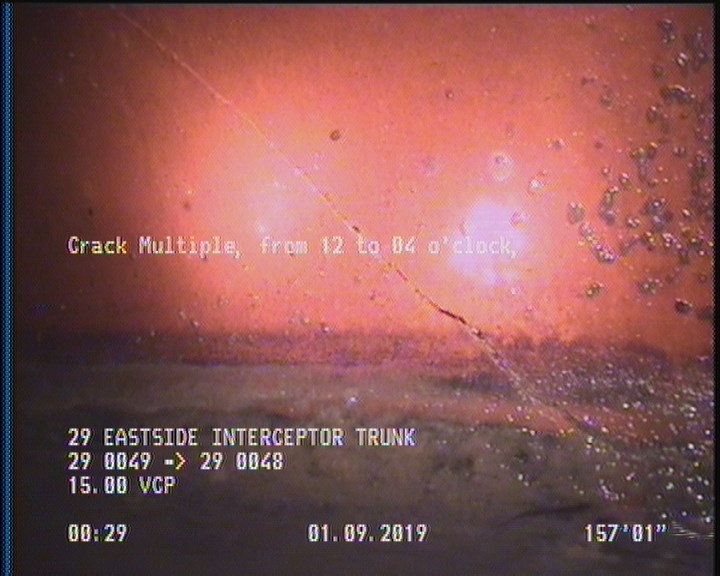

157.1 ft. - Crack Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES

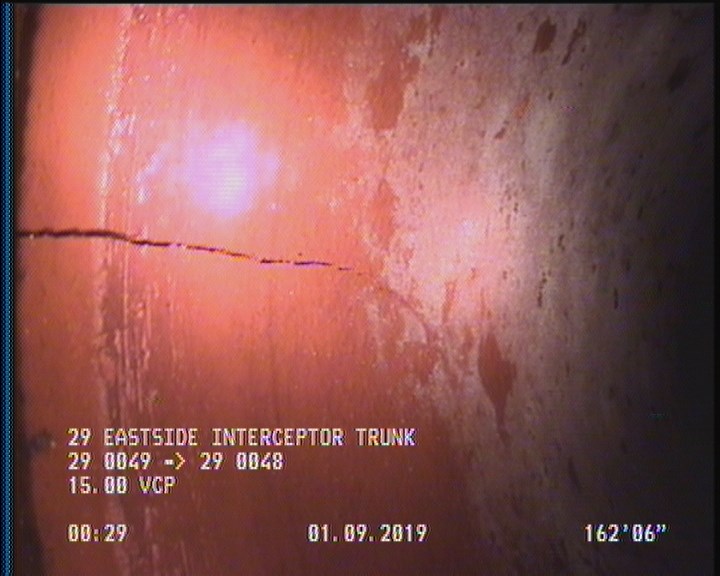

162.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 454.7 | CM | — |
| 23.3 | FM | — |
| 456 | AMH | 29 0048 |
| 0 | AMH | 29 0049 |
| 454.7 | DAGS | — |
| 162.5 | CM | — |
| 157.1 | CM | — |
| 2 | DAGS | — |
| 54.6 | FM | — |
| 0 | MWM | — |
Properties (6)
- additional_info
- SC365662
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-01-09T00:20:39-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
