Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 8, 2019, 08:21 AM

  • 16 0522_16 0521 _01082019_005235.mp4

Date
01/08/2019
W/O
740305
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00659
PipeID
P13573
Time
12:21 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6294
Sewer Name
16 LAMANDA PARK TRUNK
City
SAN MARINO
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
18
Purpose
Routine Assessment
Project
RFIR_WO_740305_TV16119_DEC2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
27 in.
Width
27 in.
Upstream MH
16 0522
Downstream MH
16 0521
Dir. of Survey
Downstream
Length Surveyed
189.1 ft.
Total Length
189.1 ft.
Structural Index
3
Structural Quick
3F00
Structural Rating
102
O&M Index
2
O&M Quick
3C2G
O&M Rating
143
Overall Index
3
Overall Quick
—
Overall Rating
245
Pipe schematic from manhole 16 0522 to 16 0521
MH: 16 0522MH: 16 0521downstream0 ft. AMH - Upstream Manhole, Survey Begins - 16 05220 ft. MWL - Water Level, 25 %of cross sectional area0 ft. MWM - Water Mark, 35 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start15.9 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start55.5 ft. RFJ - Roots Fine Joint, at 02 o'clock, within 8 inches of joint: YESR61.5 ft. RMJ - Roots Medium Joint, from 09 to 03 o'clock, 35 %, within 8 inches of joint: YESR, Start69.9 ft. MGP - General Photograph97.3 ft. RMJ - Roots Medium Joint, from 09 to 03 o'clock, 35 %, within 8 inches of joint: YESR, Finish116.5 ft. RMJ - Roots Medium Joint, from 09 to 03 o'clock, 15 %, within 8 inches of joint: YESR, Start169.2 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 6" - ROOTS169.2 ft. RML - Roots Medium Lateral, from 12 to 04 o'clock, 35 %, within 8 inches of joint: YES187.5 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish187.5 ft. RMJ - Roots Medium Joint, from 09 to 03 o'clock, 15 %, within 8 inches of joint: YESR, Finish187.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish189.1 ft. AMH - Downstream Manhole, Survey Ends - 16 0521

Observation photos (7)

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    15.9 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

  • Roots Fine Joint, at 02 o'clock, within 8 inches of joint: YESR

    55.5 ft. - Roots Fine Joint, at 02 o'clock, within 8 inches of joint: YESR

  • Roots Medium Joint, from 09 to 03 o'clock, 35 %, within 8 inches of joint: YESR, Start

    61.5 ft. - Roots Medium Joint, from 09 to 03 o'clock, 35 %, within 8 inches of joint: YESR, Start

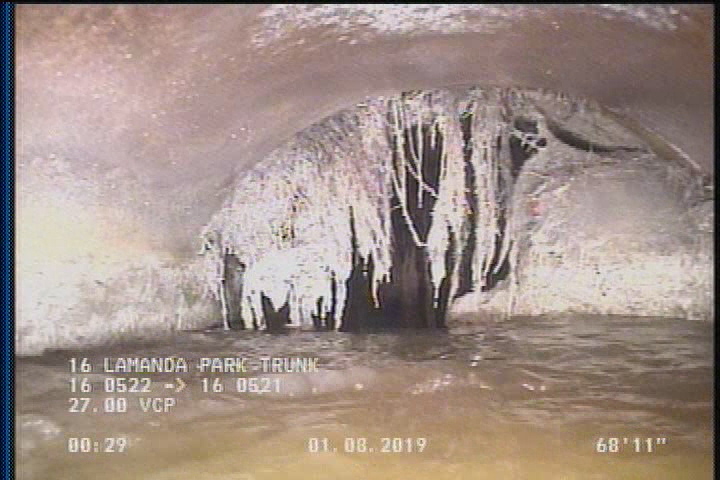

  • General Photograph

    69.9 ft. - General Photograph

  • Roots Medium Joint, from 09 to 03 o'clock, 15 %, within 8 inches of joint: YESR, Start

    116.5 ft. - Roots Medium Joint, from 09 to 03 o'clock, 15 %, within 8 inches of joint: YESR, Start

  • Roots Medium Lateral, from 12 to 04 o'clock, 35 %, within 8 inches of joint: YES

    169.2 ft. - Roots Medium Lateral, from 12 to 04 o'clock, 35 %, within 8 inches of joint: YES

All inspections of P13573Work order 740305

Observations (16)

DistanceCodeObservation
97.3RMJ—
187.5CM—
116.5RMJ—
69.9MGP—
187.5RMJ—
0AMH16 0522
189.1AMH16 0521
169.2TFDROOTS
55.5RFJ—
169.2RML—
0MWL—
2DAGS—
187.5DAGS—
61.5RMJ—
15.9CM—
0MWM—

Properties (6)

additional_info
SC365660
custom_field_two
2
customer
LACSD
datetime
2019-01-08T00:21:03-08:00
documentation
PRO PIPE
is_lateral_inspection
false
