Wastewater/Activity/PacpInspection/1.0Jan 2, 2019, 10:53 AM
D 0106_D 0105 _01022019_030445.mp4
- Date
- 01/02/2019
- W/O
- 740289
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00156
- PipeID
- P10012
- Time
- 2:53 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6308
- Sewer Name
- D JOINT OUTFALL D - UNIT 6
- City
- LAWNDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- RFIR_WO_740259_TV05172_DEC2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 33 in.
- Width
- 33 in.
- Upstream MH
- D 0106
- Downstream MH
- D 0105
- Dir. of Survey
- Downstream
- Length Surveyed
- 303.2 ft.
- Total Length
- 303.2 ft.
- Structural Index
- 3
- Structural Quick
- 5J3K
- Structural Rating
- 575
- O&M Index
- 2
- O&M Quick
- 2K00
- O&M Rating
- 118
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 693
Observation photos (3)

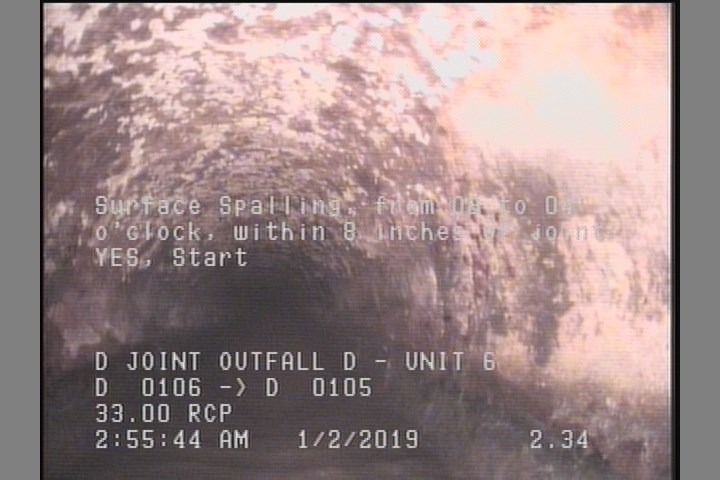

2.3 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

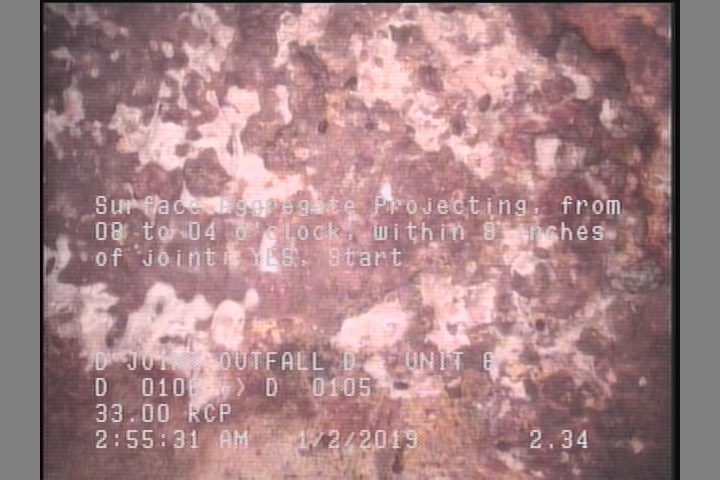

2.3 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

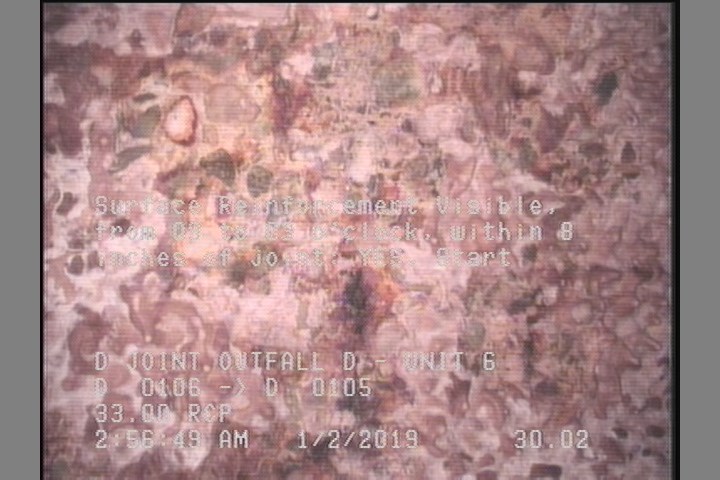

30 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 7.9 | DSZ | — |
| 0 | MWL | — |
| 2.3 | SSS | — |
| 303.2 | SSS | — |
| 303.2 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 30 | SRV | — |
| 303.2 | SRV | — |
| 303.2 | AMH | D 0105 |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 303.2 | DSZ | — |
| 2.3 | SAP | — |
| 0 | AMH | D 0106 |
| 303.2 | SAP | — |
| 0 | MWM | — |
Properties (6)
- additional_info
- SC365492
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-01-02T02:53:42-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
