Wastewater/Activity/PacpInspection/1.0Jan 2, 2019, 11:25 AM
D 0103_D 0102 _01022019_034027.mp4
- Date
- 01/02/2019
- W/O
- 740289
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00156
- PipeID
- P10009
- Time
- 3:25 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6308
- Sewer Name
- D JOINT OUTFALL D - UNIT 6
- City
- LAWNDALE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- RFIR_WO_740259_TV05172_DEC2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 33 in.
- Width
- 33 in.
- Upstream MH
- D 0103
- Downstream MH
- D 0102
- Dir. of Survey
- Downstream
- Length Surveyed
- 535.8 ft.
- Total Length
- 535.8 ft.
- Structural Index
- 3
- Structural Quick
- 5S3T
- Structural Rating
- 1035
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 1035
Observation photos (3)

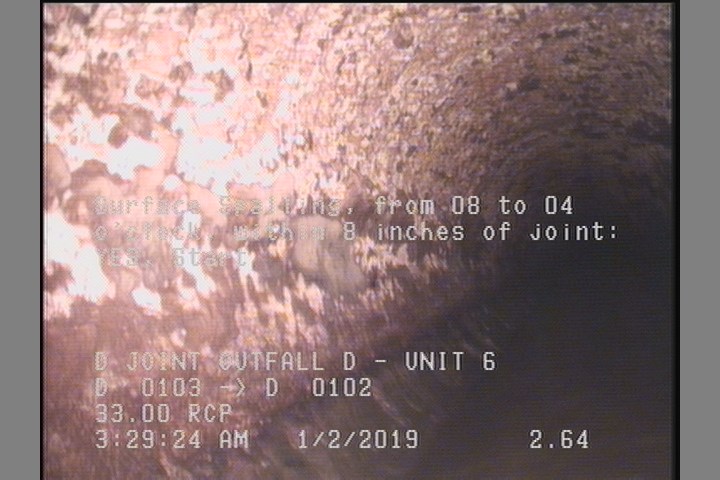

2.6 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

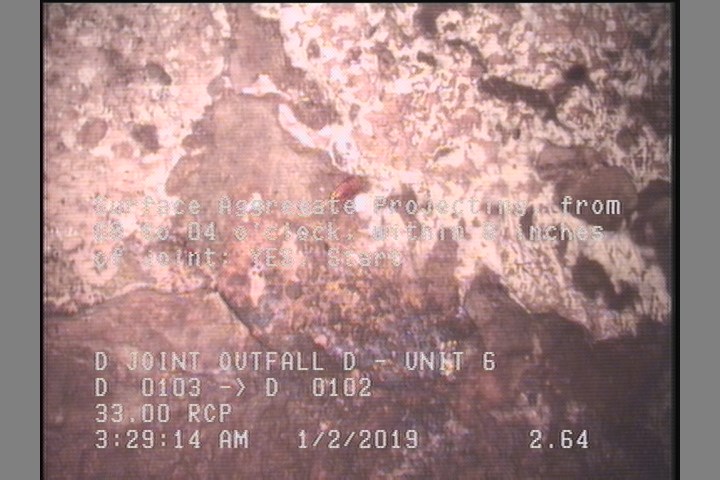

2.6 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

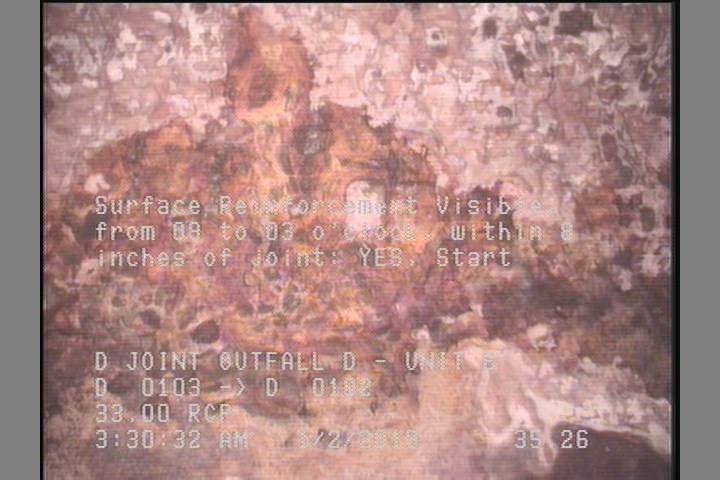

35.4 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 535.8 | AMH | D 0102 |
| 535.8 | SSS | — |
| 0 | AMH | D 0103 |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 35.4 | SRV | — |
| 535.8 | SRV | — |
| 0 | MWL | — |
| 2.6 | SSS | — |
| 0 | MWM | — |
| 535.8 | SAP | — |
| 2.6 | SAP | — |
Properties (6)
- additional_info
- SC365492
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-01-02T03:25:19-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
