Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 3, 2019, 05:35 AM

  • D 0115_D 0114_01022019_215549.mp4

Date
01/02/2019
W/O
740289
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00156
PipeID
P10023
Time
9:35 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6309
Sewer Name
D JOINT OUTFALL D - UNIT 6
City
REDONDO BEACH
Loc. details
Parking Lot
Location Code
G
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
16
Purpose
Routine Assessment
Project
RFIR_WO_740259_TV05172_DEC2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
33 in.
Width
33 in.
Upstream MH
D 0115
Downstream MH
D 0114
Dir. of Survey
Downstream
Length Surveyed
529.1 ft.
Total Length
529.1 ft.
Structural Index
3
Structural Quick
3T2R
Structural Rating
505
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
505
Pipe schematic from manhole D 0115 to D 0114
MH: D 0115MH: D 0114downstream0 ft. AMH - Upstream Manhole, Survey Begins - D 01150 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 20 %of cross sectional area2.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start51.8 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start529.1 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish529.1 ft. AMH - Downstream Manhole, Survey Ends - D 0114529.1 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK529.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (2)

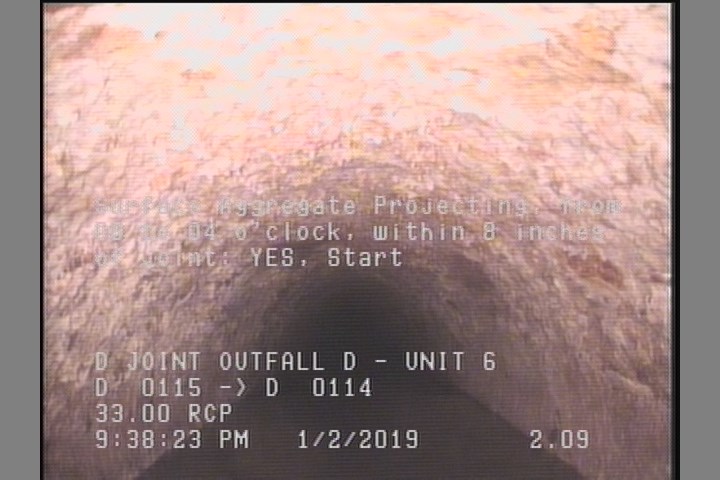

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

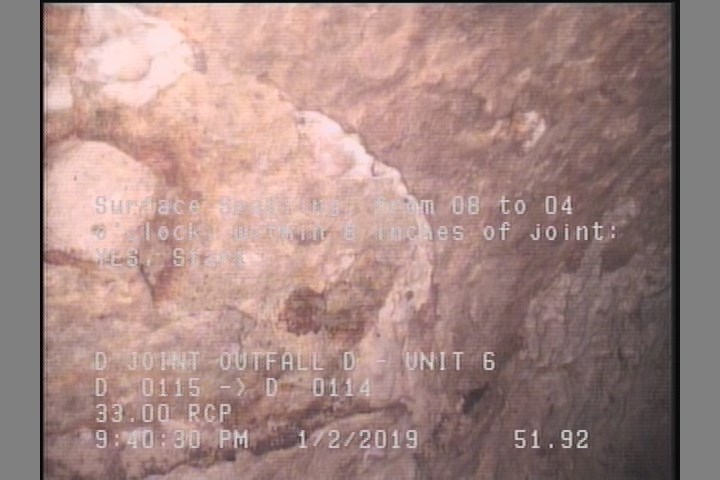

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    51.8 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P10023Work order 740289

Observations (10)

DistanceCodeObservation
529.1SSS—
2.1SAP—
51.8SSS—
0AMHD 0115
0MGOCONNECTION AT MH 9 O'CLOCK
529.1AMHD 0114
0MWM—
0MWL—
529.1MGOCONNECTION AT MH 9 O'CLOCK
529.1SAP—

Properties (6)

additional_info
SC365493
custom_field_two
2
customer
LACSD
datetime
2019-01-02T21:35:21-08:00
documentation
PROPIPE
is_lateral_inspection
false
