Wastewater/Activity/PacpInspection/1.0Jan 3, 2019, 06:58 AM
D 0096_A 1041 _01022019_230305.mp4
- Date
- 01/02/2019
- W/O
- 740289
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00156
- PipeID
- P21855
- Time
- 10:58 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6309
- Sewer Name
- D JOINT OUTFALL D - UNIT 6
- City
- LAWNDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- RFIR_WO_740259_TV05172_DEC2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 39 in.
- Width
- 39 in.
- Upstream MH
- D 0096
- Downstream MH
- A 1041
- Dir. of Survey
- Downstream
- Length Surveyed
- 21.7 ft.
- Total Length
- 21.7 ft.
- Structural Index
- 3
- Structural Quick
- 5234
- Structural Rating
- 30
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 30
Observation photos (3)

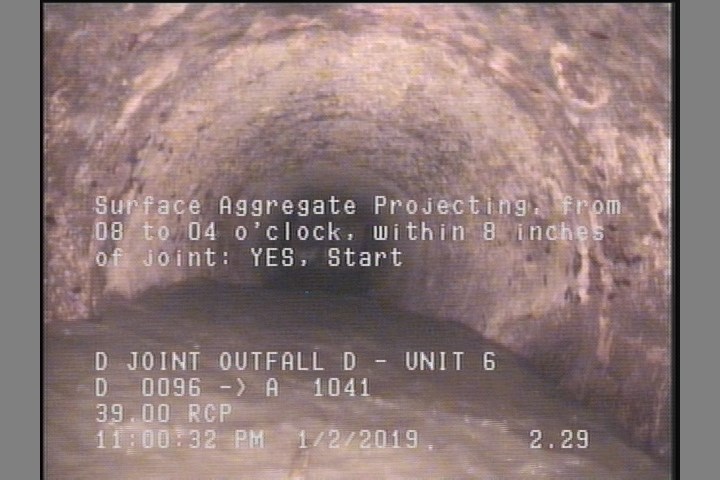

2.2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

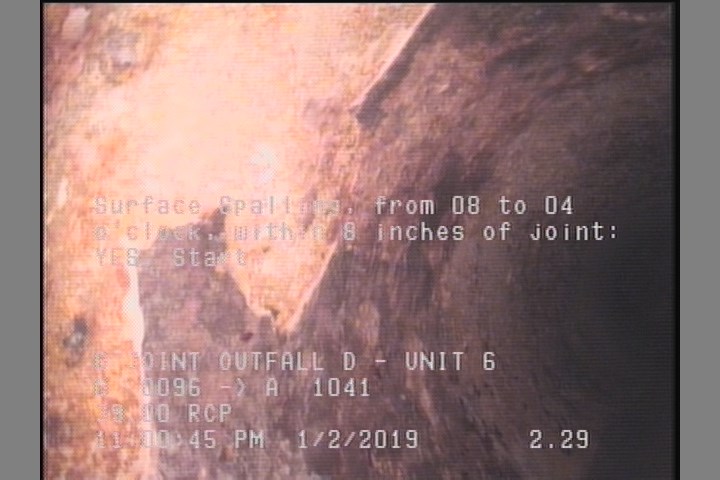

2.3 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

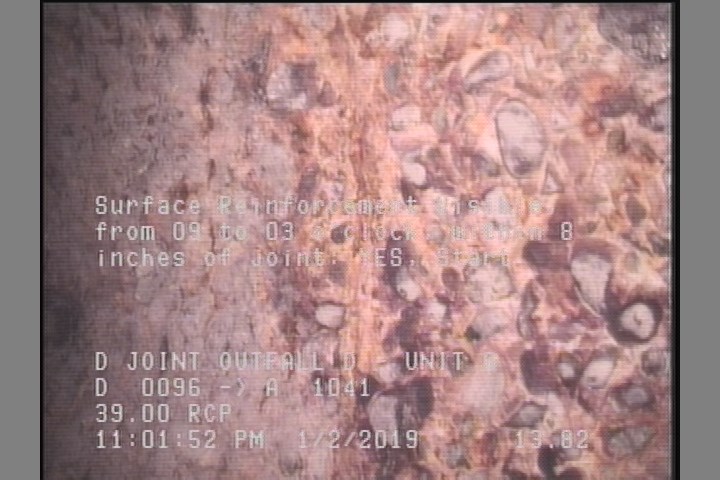

13.8 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 21.7 | AMH | A 1041 |
| 2.2 | SAP | — |
| 0 | AMH | D 0096 |
| 21.7 | SAP | — |
| 0 | MGO | CAPPED LATERAL 9 O'CLOCK @ MH |
| 21.7 | SRV | — |
| 2.3 | SSS | — |
| 21.7 | SSS | — |
| 0 | MWM | — |
| 13.8 | SRV | — |
| 21.7 | MGO | CONNECTION AT MH 9 O'CLOCK |
Properties (6)
- additional_info
- SC365493
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-01-02T22:58:42-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
