Wastewater/Activity/PacpInspection/1.0Jan 8, 2019, 06:51 AM
A 0632_A 0631 _01072019_230739.mp4
- Date
- 01/07/2019
- W/O
- 740061
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00316
- PipeID
- P07837
- Time
- 10:51 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6315
- Sewer Name
- A JOA-1A DISTRICT 21 INTERCEPTOR
- City
- CITY OF INDUSTRY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 34
- Purpose
- Routine Assessment
- Project
- RFIR_WO_740061_TV21041_DEC2018
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 54 in.
- Width
- 54 in.
- Upstream MH
- A 0631
- Downstream MH
- A 0632
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 4
- Structural Quick
- 5131
- Structural Rating
- 8
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (3)

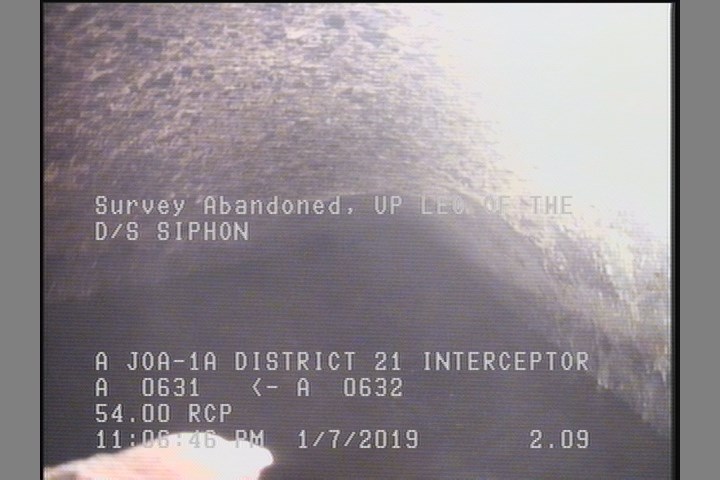

2.1 ft. - Survey Abandoned - UP LEG OF THE D/S SIPHON

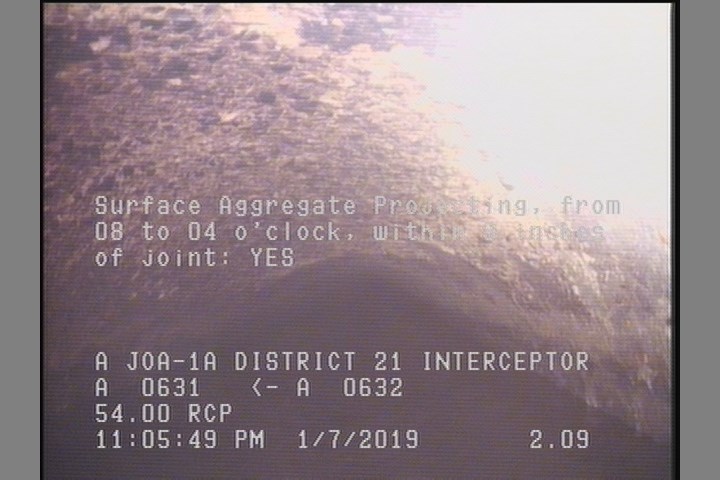

2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES

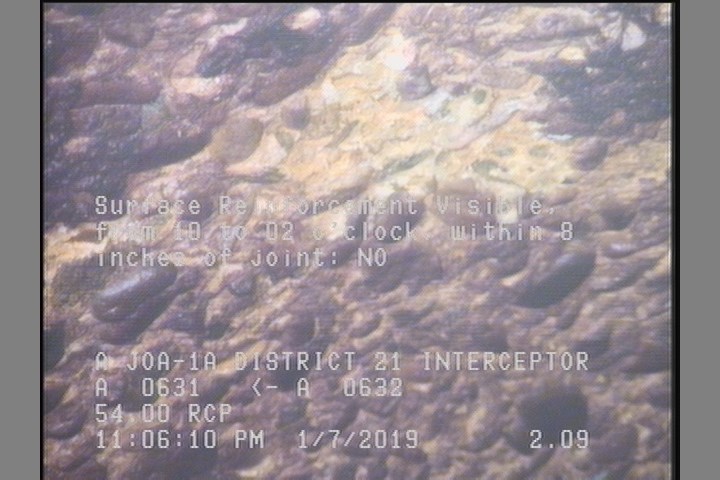

2.1 ft. - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: NO
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 2.1 | MSA | UP LEG OF THE D/S SIPHON |
| 0 | AMH | A 0631 |
| 0 | MWM | — |
| 0 | MWL | — |
| 2.1 | SAP | — |
| 2.1 | SRV | — |
Properties (6)
- additional_info
- SC365499
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-01-07T22:51:51-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
