Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 8, 2019, 09:12 AM

  • A 0588_A 0587 _01082019_012821.mp4

Date
01/08/2019
W/O
740061
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00316
PipeID
P07793
Time
1:12 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6315
Sewer Name
A JOA-1A DISTRICT 21 INTERCEPTOR
City
CITY OF INDUSTRY
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
34
Purpose
Routine Assessment
Project
RFIR_WO_740061_TV21041_DEC2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
54 in.
Width
54 in.
Upstream MH
A 0588
Downstream MH
A 0587
Dir. of Survey
Downstream
Length Surveyed
407.4 ft.
Total Length
407.4 ft.
Structural Index
3
Structural Quick
523O
Structural Rating
253
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
253
Pipe schematic from manhole A 0588 to A 0587
MH: A 0588MH: A 0587downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - A 05882.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start384.5 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start396.4 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish407.4 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish407.4 ft. AMH - Downstream Manhole, Survey Ends - A 0587

Observation photos (2)

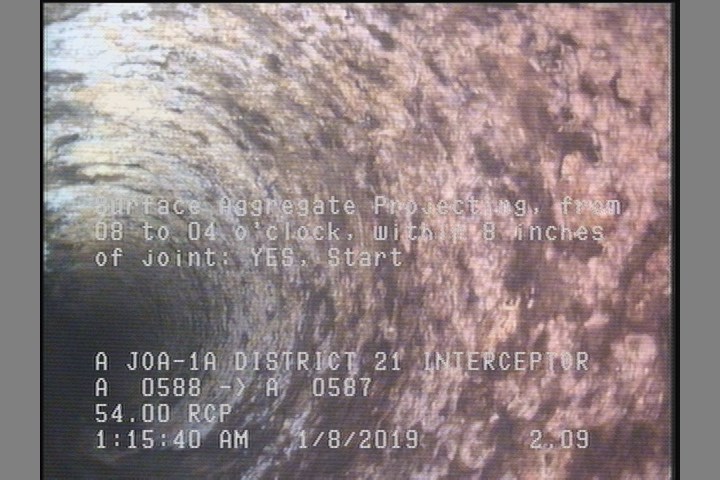

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    384.5 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P07793Work order 740061

Observations (8)

DistanceCodeObservation
0MWM—
396.4SRV—
0MWL—
407.4SAP—
2.1SAP—
0AMHA 0588
407.4AMHA 0587
384.5SRV—

Properties (6)

additional_info
SC365499
custom_field_two
2
customer
LACSD
datetime
2019-01-08T01:12:08-08:00
documentation
PROPIPE
is_lateral_inspection
false
