Wastewater/Activity/PacpInspection/1.0Jan 8, 2019, 06:12 AM
A 0644_A 0643 _01072019_221855.mp4
- Date
- 01/07/2019
- W/O
- 740061
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00316
- PipeID
- P07851
- Time
- 10:12 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6315
- Sewer Name
- A JOA-1A DISTRICT 21 INTERCEPTOR
- City
- CITY OF INDUSTRY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 34
- Purpose
- Routine Assessment
- Project
- RFIR_WO_740061_TV21041_DEC2018
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 54 in.
- Width
- 54 in.
- Upstream MH
- A 0643
- Downstream MH
- A 0644
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (2)

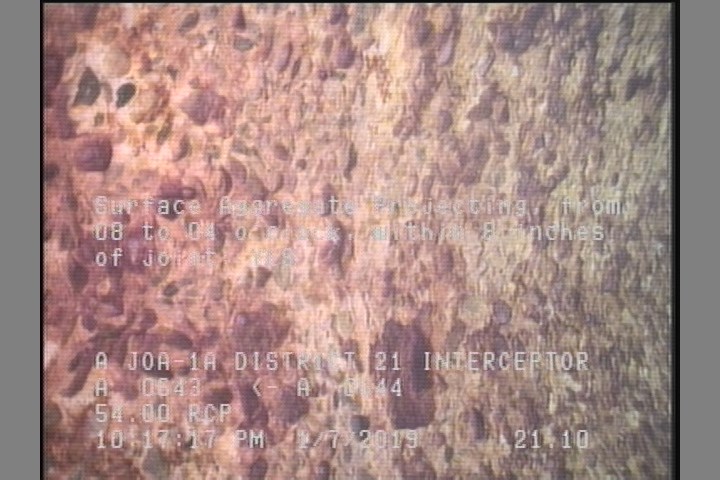

2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES

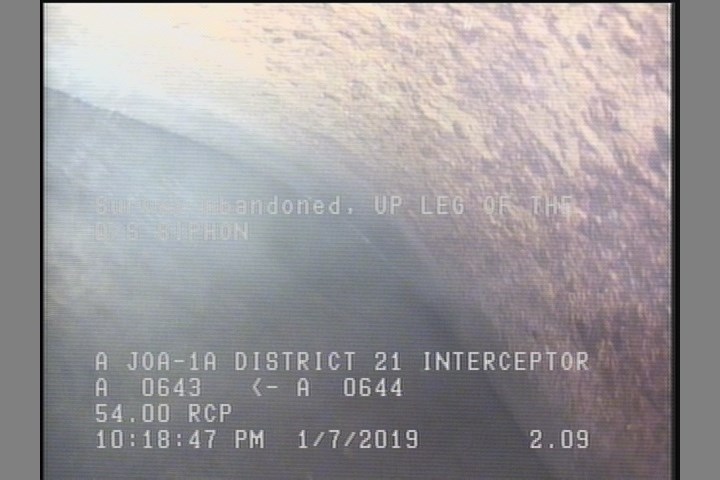

2.1 ft. - Survey Abandoned - UP LEG OF THE D/S SIPHON
Observations (5)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 2.1 | SAP | — |
| 2.1 | MSA | UP LEG OF THE D/S SIPHON |
| 0 | MWL | — |
| 0 | AMH | A 0643 |
Properties (6)
- additional_info
- SC365499
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-01-07T22:12:41-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
