Wastewater/Activity/PacpInspection/1.0Jan 10, 2019, 08:57 AM
01 1337_01 0023_01102019_011354.mp4
- Date
- 01/10/2019
- W/O
- 740021
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00209
- PipeID
- P02139
- Time
- 12:57 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6322
- Sewer Name
- 01 HOOPER AVENUE-COMPTON CREEK TRUNK
- City
- LOS ANGELES
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- RFIR_WO_740021_TV01045_DEC2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 33 in.
- Width
- 33 in.
- Upstream MH
- 01 1337
- Downstream MH
- 01 0023
- Dir. of Survey
- Downstream
- Length Surveyed
- 266 ft.
- Total Length
- 266 ft.
- Structural Index
- 3
- Structural Quick
- 3I2J
- Structural Rating
- 262
- O&M Index
- 3
- O&M Quick
- 3J00
- O&M Rating
- 159
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 421
Observation photos (5)

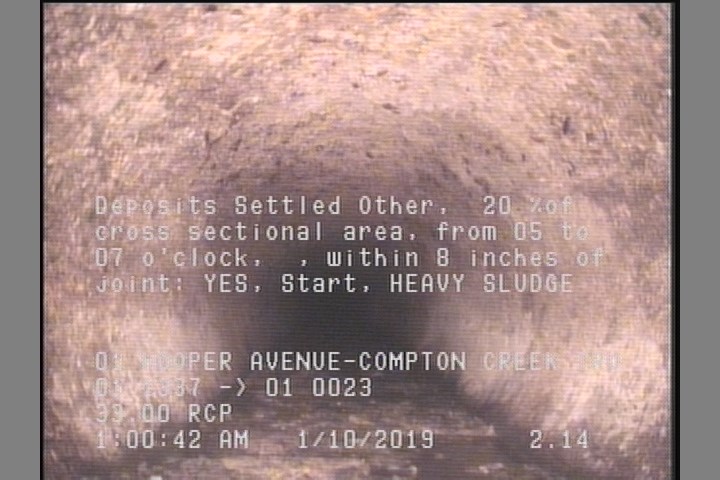

2.1 ft. - Deposits Settled Other, 20 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - HEAVY SLUDGE

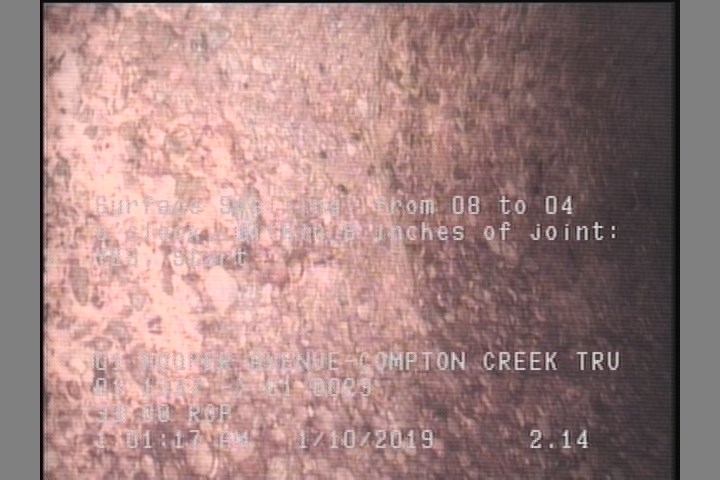

2.1 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

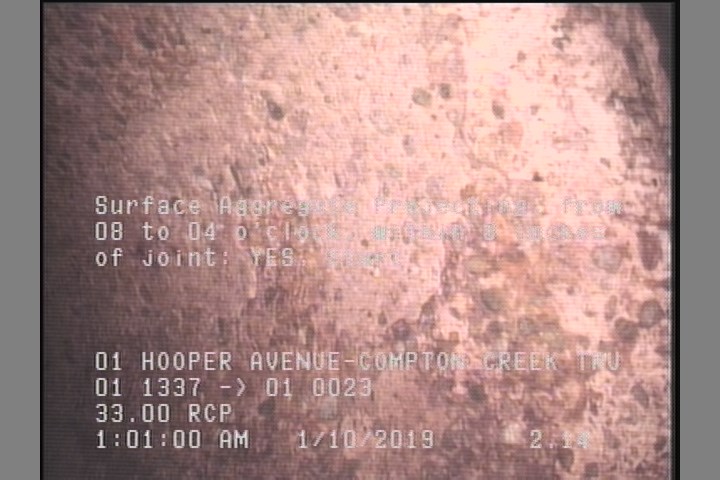

2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

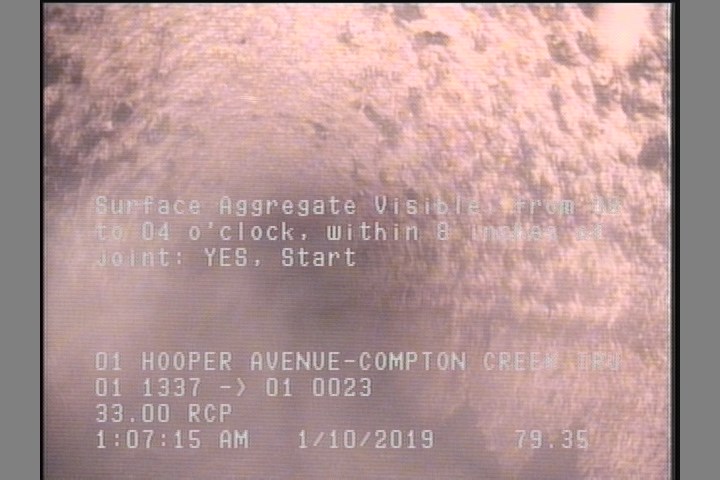

79.4 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

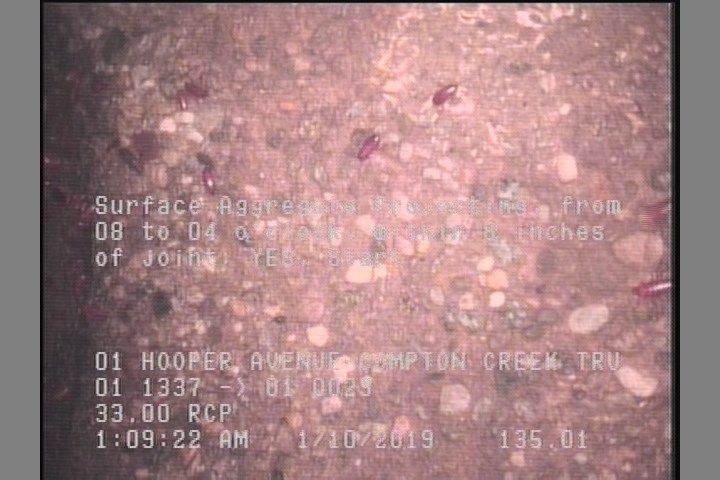

135 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (21)
| Distance | Code | Observation |
|---|---|---|
| 2.1 | DSZ | HEAVY SLUDGE |
| 266 | AMH | 01 0023 |
| 2.1 | SSS | — |
| 79.4 | SAP | — |
| 0 | MWL | — |
| 266 | SAP | — |
| 266 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 135 | SAV | — |
| 0 | AMH | 01 1337 |
| 135 | TF | — |
| 266 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 2.1 | SAP | — |
| 77.3 | TF | — |
| 266 | DSZ | — |
| 0 | MWM | — |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 266 | SSS | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 135 | SAP | — |
| 79.4 | SAV | — |
| 162.5 | TF | — |
Properties (7)
- additional_info
- SC365757
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-01-10T00:57:34-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
- year_laid
- 31869
