Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 23, 2019, 09:03 AM

  • Section#2_30 0242_30 0241__5232019__I0148.mp4

Date
05/23/2019
W/O
0771073
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00884
PipeID
P17943
Time
2:03 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0148
Sewer Name
30 VIA CAMPESINA TRUNK
City
PALO VERDES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 30
Page No.
09
Purpose
Routine Assessment
Project
20190523MDM_VIA_CAMPESINA_TRUNK
Material
NRCP
Shape
Circular
Height
10 in.
Upstream MH
30 0241
Downstream MH
30 0242
Dir. of Survey
Upstream
Length Surveyed
181.7 ft.
Total Length
181.7 ft.
Structural Index
4
Structural Quick
4F21
Structural Rating
150
O&M Index
2
O&M Quick
3121
O&M Rating
7
Overall Index
4
Overall Quick
—
Overall Rating
157
Pipe schematic from manhole 30 0241 to 30 0242
MH: 30 0241MH: 30 0242upstream0 ft. AMH - Downstream Manhole, Survey Ends - 3: 15AM0.5 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG6 ft. RMJ - Roots Medium Joint, from 04 to 08 o'clock, 15 %, within 8 inches of joint: YESR17.1 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 6" - ACTIVE19.8 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 6" - OPEN-100% ROOTS44.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - STUB55.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - STUB61.1 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG66.5 ft. TB - Tap Break-In, at 01 o'clock, -, within 8 inches of joint: YES, 6", 6" - OPEN79.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - STUB102.4 ft. RFJ - Roots Fine Joint, from 04 to 10 o'clock, within 8 inches of joint: YESR - 4%118.9 ft. RFJ - Roots Fine Joint, from 07 to 08 o'clock, within 8 inches of joint: YESR - 4%178.7 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SLIGHT179.7 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG181.7 ft. MWM - Water Mark, 20 %of cross sectional area181.7 ft. MWL - Water Level, 5 %of cross sectional area181.7 ft. AMH - Downstream Manhole, Survey Begins - 2:55AM

Observation photos (4)

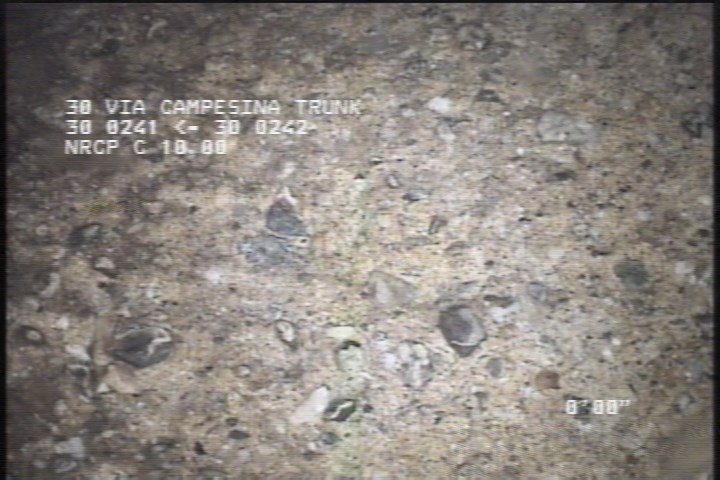

  • Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SLIGHT

    3 ft. - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SLIGHT

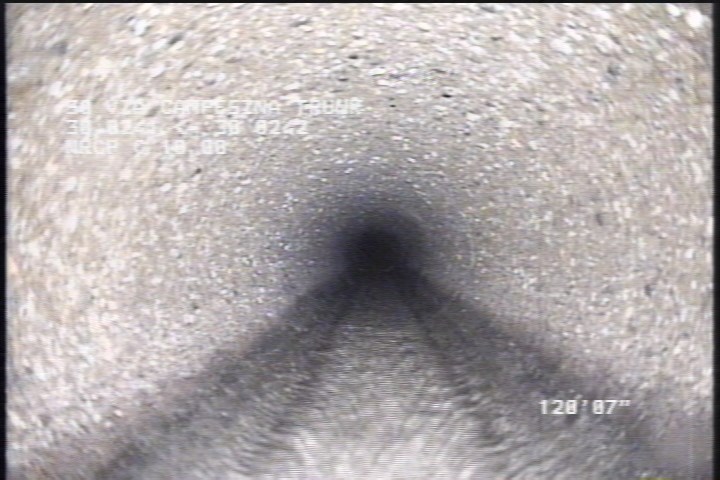

  • Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG

    120.6 ft. - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG

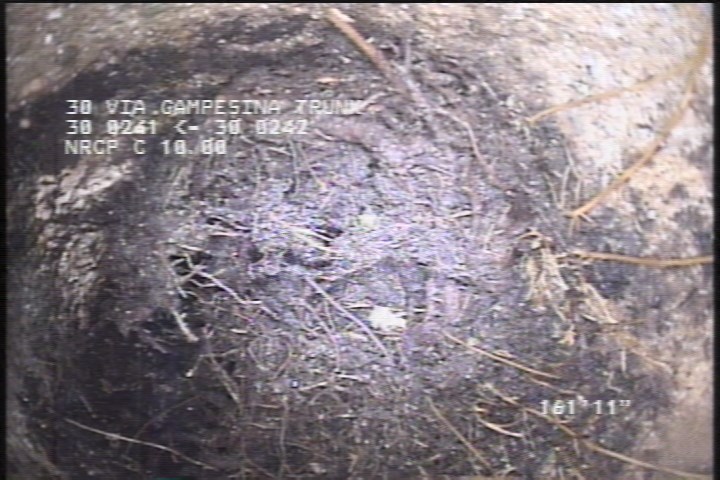

  • Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 6" - OPEN-100% ROOTS

    161.9 ft. - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 6" - OPEN-100% ROOTS

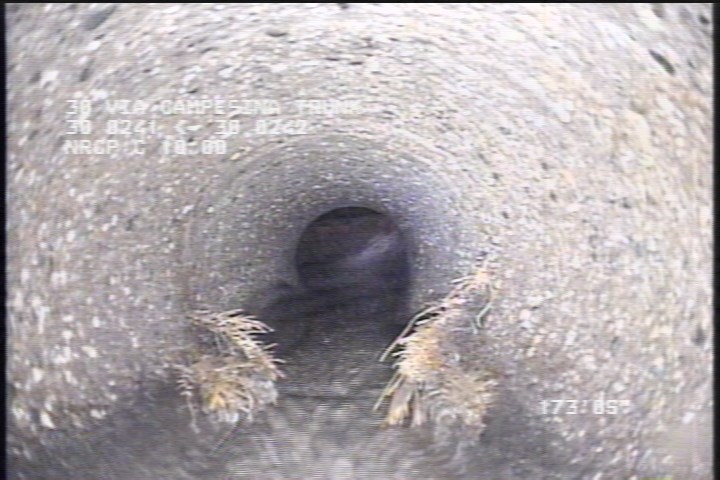

  • Roots Medium Joint, from 04 to 08 o'clock, 15 %, within 8 inches of joint: YESR

    175.7 ft. - Roots Medium Joint, from 04 to 08 o'clock, 15 %, within 8 inches of joint: YESR

All inspections of P17943Work order 0771073

Observations (17)

DistanceCodeObservation
161.9TFDOPEN-100% ROOTS
164.6TBACTIVE
175.7RMJ—
0MWM—
181.2SAMSEVERE AGG
115.2TBOPEN
120.6SAMSEVERE AGG
181.7AMH3: 15AM
0MWL—
137.1TFCSTUB
0AMH2:55AM
2SAMSEVERE AGG
79.3RFJ4%
126.2TFSTUB
62.8RFJ4%
3FCSLIGHT
102.3TFCSTUB

Properties (6)

custom_field_three
SEVERE AGG MISSING
custom_field_two
2
customer
LACSD
datetime
2019-05-23T02:03:12-07:00
documentation
MARTIN,REVELES,OLIVER 111,RUVALCABA
is_lateral_inspection
false
