Wastewater/Activity/PacpInspection/1.0May 20, 2019, 05:41 PM
C 0176_C 0175_5202019_104609.mp4
- Date
- 05/20/2019
- W/O
- 0766542
- Weather
- Dry
- Operator/Surveyor
- BRAR
- Sewer ID
- Z00130
- PipeID
- P09700
- Time
- 10:41 AM
- Certificate
- SEE REMARKS
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7983
- Sewer Name
- C JOINT OUTFALL C - UNIT 5C
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 19
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- 20190520SB_JOINT_OUTFALL_C_UNIT_5C
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- C 0176
- Downstream MH
- C 0175
- Dir. of Survey
- Downstream
- Length Surveyed
- 366.9 ft.
- Total Length
- 366.9 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (6)

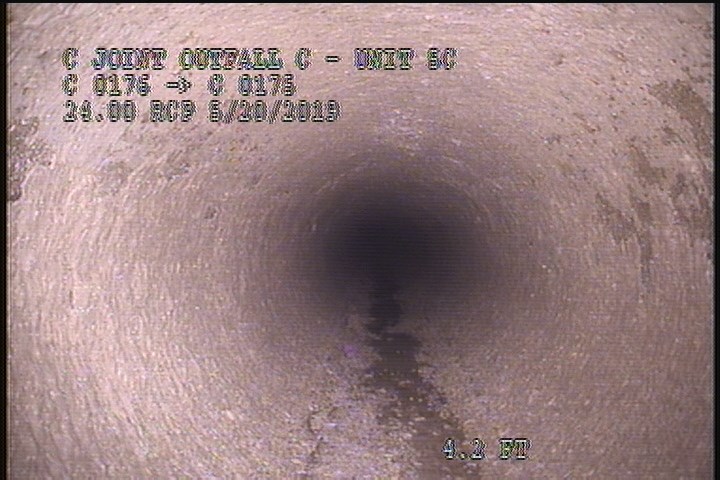

4.2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - MAG COAT 100%

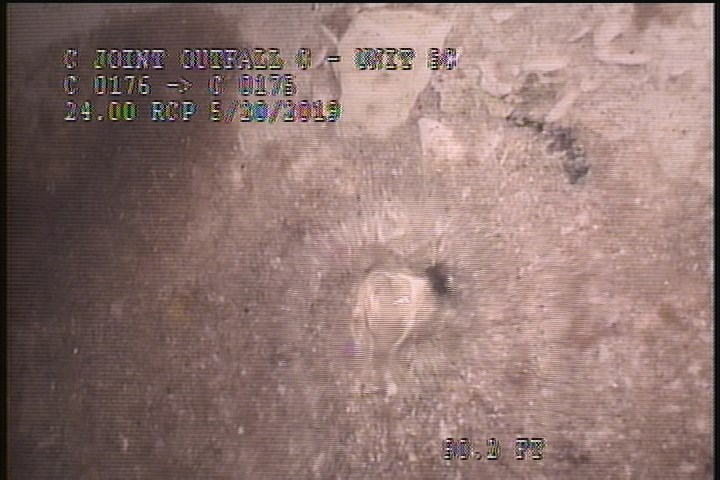

90.2 ft. - General Observation - POSSIBLE HOLE AT 6 O'CLOCK

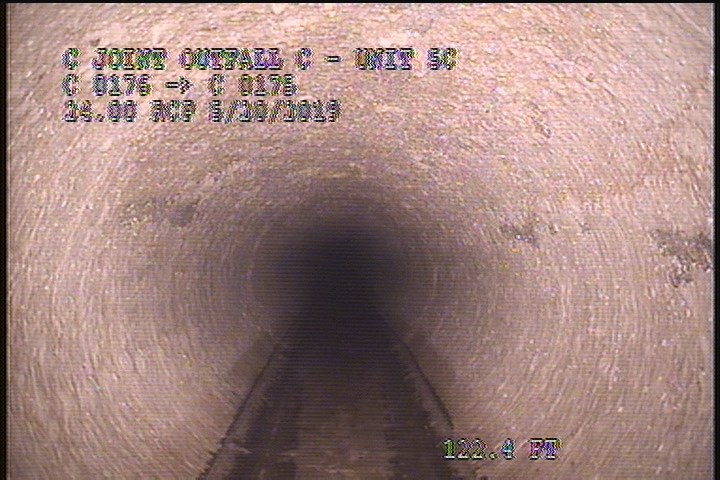

122.4 ft. - General Photograph
125 ft. - Water Level, 15 %of cross sectional area

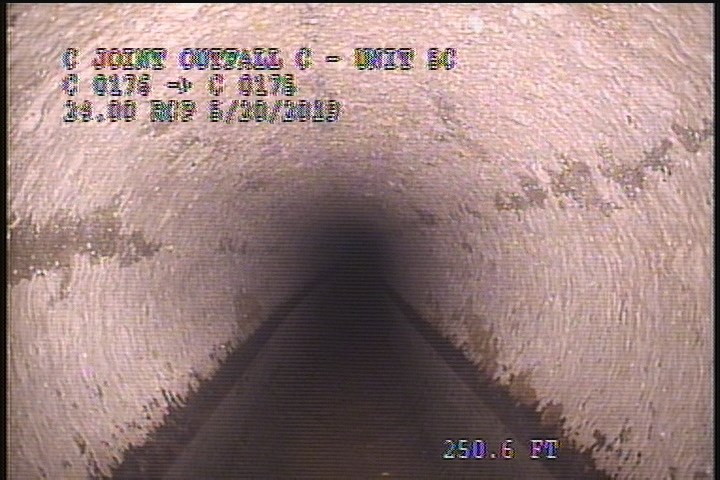

250.6 ft. - General Photograph

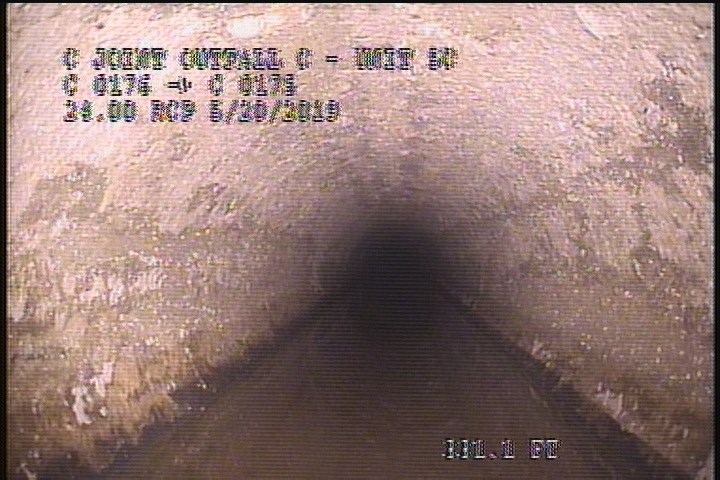

331.1 ft. - General Photograph
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 365 | MGO | Conn. @ Mh, 3 O' Clock. Active |
| 90.2 | MGO | POSSIBLE HOLE AT 6 O'CLOCK |
| 4.2 | SZ | MAG COAT 100% |
| 366.9 | AMH | 11:36 AM |
| 365 | SZ | MAG COAT FINISH |
| 366.7 | MGO | Conn. @ Mh, 9 O' Clock. OPEN |
| 0 | MWM | — |
| 0 | MWL | — |
| 122.4 | MGP | — |
| 125 | MWL | — |
| 0 | AMH | 10:43 AM |
| 362.4 | SZ | MAG COAT |
| 331.1 | MGP | — |
| 250.6 | MGP | — |
Properties (5)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2019-05-20T10:41:07-07:00
- documentation
- BRAR, FRANKLIN, CASTILLO
- is_lateral_inspection
- false
