Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 20, 2019, 05:05 PM

  • C 0177_C 0176_5202019_101310.mp4

Date
05/20/2019
W/O
0766542
Weather
Dry
Operator/Surveyor
BRAR
Sewer ID
Z00130
PipeID
P09701
Time
10:05 AM
Certificate
SEE REMARKS
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7983
Sewer Name
C JOINT OUTFALL C - UNIT 5C
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 19
Page No.
10
Purpose
Routine Assessment
Project
20190520SB_JOINT_OUTFALL_C_UNIT_5C
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Upstream MH
C 0177
Downstream MH
C 0176
Dir. of Survey
Downstream
Length Surveyed
372.4 ft.
Total Length
372.4 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole C 0177 to C 0176
MH: C 0177MH: C 0176downstream0 ft. AMH - Upstream Manhole, Survey Begins - 10:09 AM0.1 ft. MWL - Water Level, 0 %of cross sectional area0.1 ft. MWM - Water Mark, 5 %of cross sectional area2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - MAG COAT 100%6 ft. MGO - General Observation - Peeling & Flaking 7 TO 8 O CLOCK125.9 ft. MGP - General Photograph251.5 ft. MGP - General Photograph369.7 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - MAG COAT 100%372.4 ft. AMH - Downstream Manhole, Survey Ends - 10:38 AM372.4 ft. MGP - General Photograph

Observation photos (4)

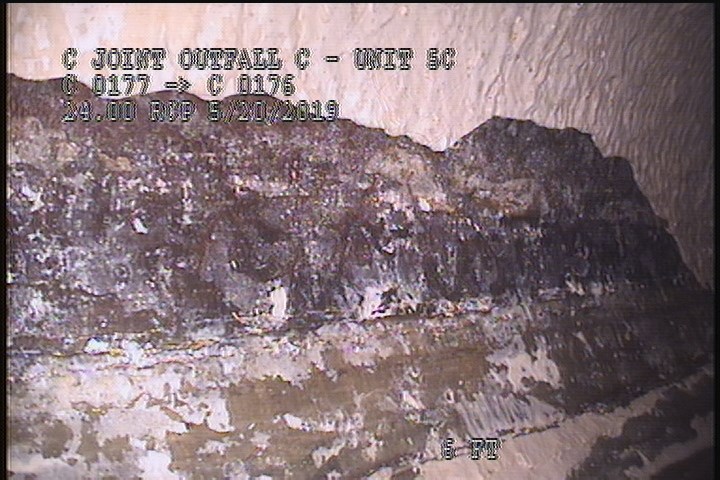

  • General Observation - Peeling & Flaking 7 TO 8 O CLOCK

    6 ft. - General Observation - Peeling & Flaking 7 TO 8 O CLOCK

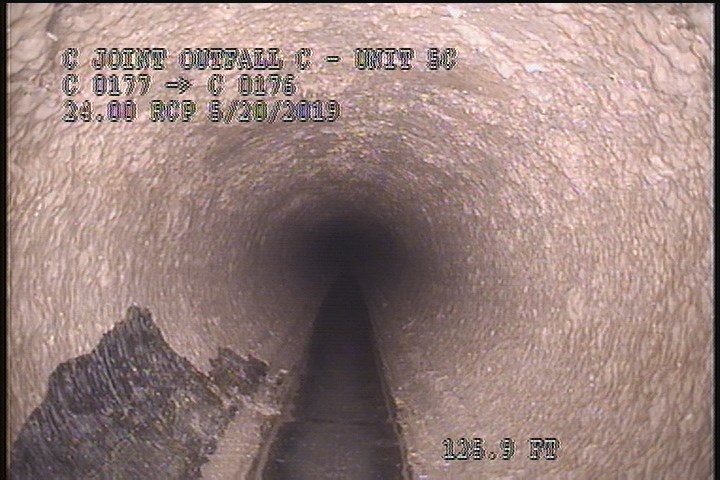

  • General Photograph

    125.9 ft. - General Photograph

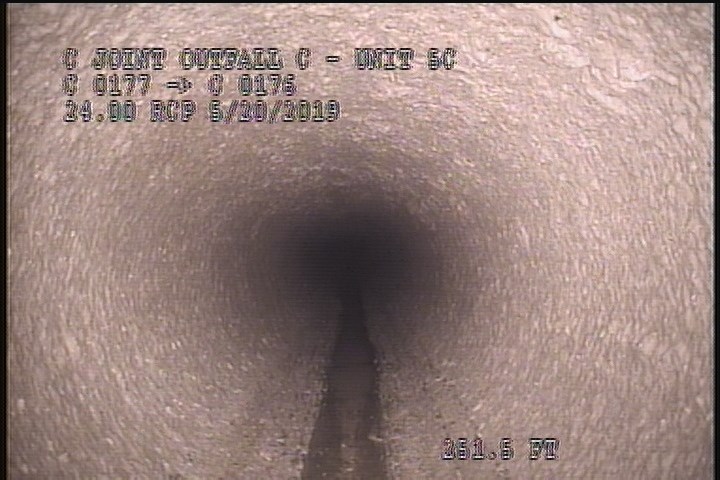

  • General Photograph

    251.5 ft. - General Photograph

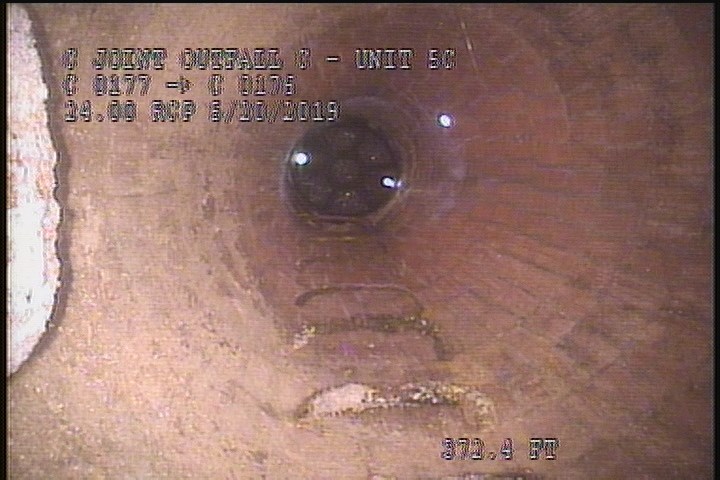

  • General Photograph

    372.4 ft. - General Photograph

All inspections of P09701Work order 0766542

Observations (10)

DistanceCodeObservation
372.4AMH10:38 AM
372.4MGP—
125.9MGP—
2SZMAG COAT 100%
0AMH10:09 AM
251.5MGP—
0.1MWL—
0.1MWM—
369.7SZMAG COAT 100%
6MGOPeeling & Flaking 7 TO 8 O CLOCK

Properties (5)

custom_field_two
4
customer
LACSD
datetime
2019-05-20T10:05:29-07:00
documentation
BRAR, FRANKLIN, CASTILLO
is_lateral_inspection
false
