Wastewater/Activity/PacpInspection/1.0May 17, 2019, 05:07 PM
H 1183_H 1182_5172019_112544.mp4
- Date
- 05/17/2019
- W/O
- 0771668
- Weather
- Dry
- Operator/Surveyor
- IGNACIO
- Sewer ID
- Z01011
- PipeID
- P25825
- Time
- 10:07 AM
- Certificate
- PENDING
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7982
- Sewer Name
- H JOINT OUTFALL H - UNIT 1B REPLACEMENT
- City
- SOUTH GATE
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 29
- Purpose
- Maintenance Related
- Project
- 20190517MI_JOINT_OUTFALL_H_UNIT_1B_REPLACEMENT
- Material
- RGRCP-PTL
- Shape
- Circular
- Height
- 90 in.
- Upstream MH
- H 1182
- Downstream MH
- H 1183
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.3 ft.
- Total Length
- 2.3 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (5)

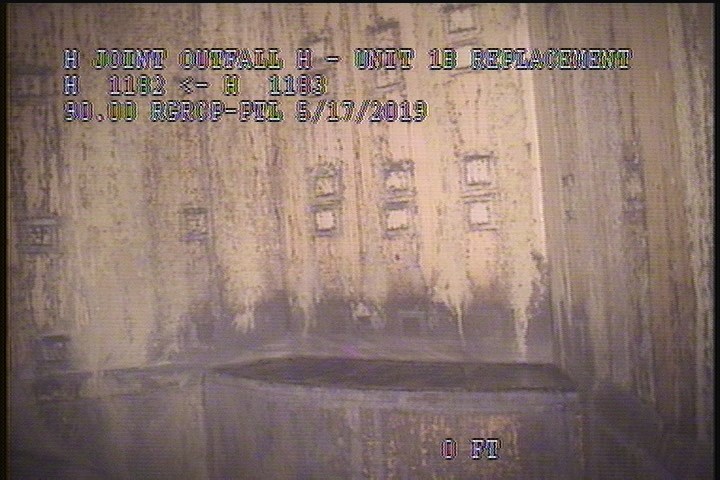

0 ft. - General Photograph - STACK

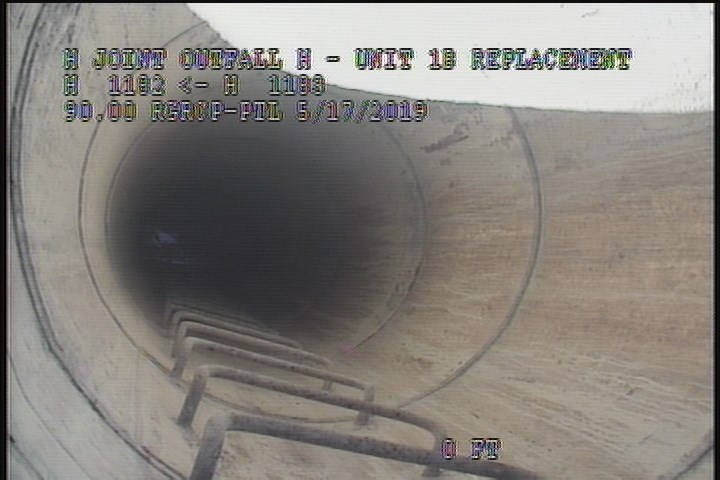

0 ft. - General Photograph - MH STACK

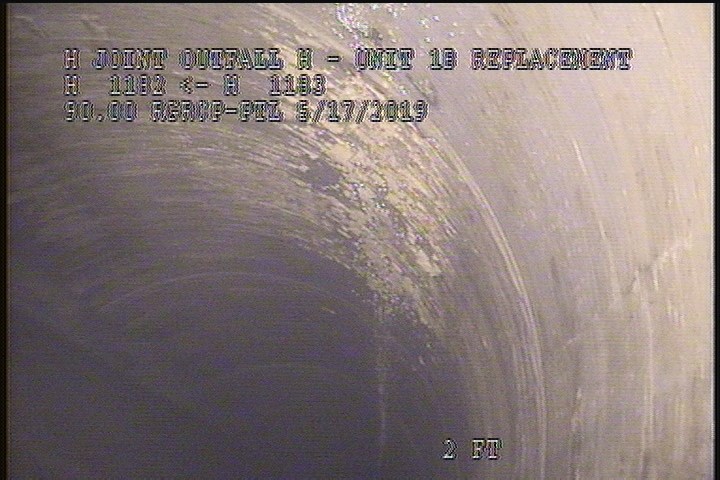

2 ft. - General Photograph - POSSIBLE MAG COAT 12 TO 1 OCLOCK

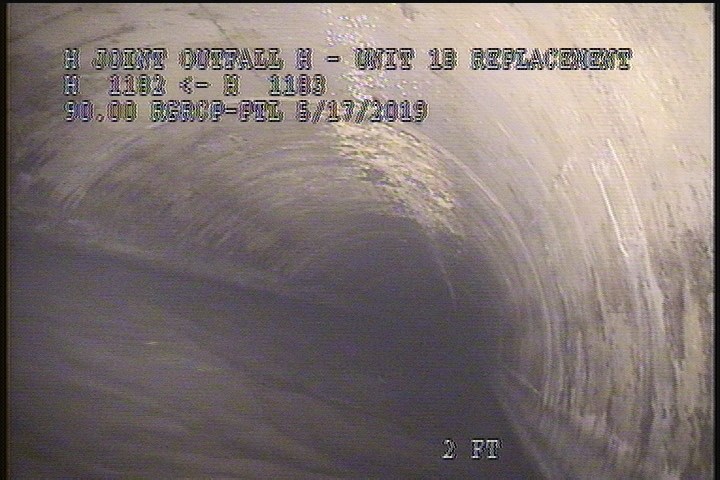

2 ft. - General Observation - U/S MH 1182

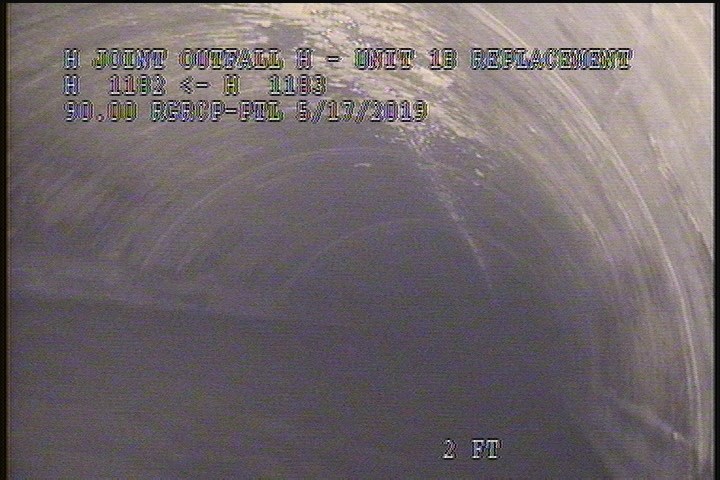

2 ft. - General Observation - POSSIBLE MAG COATING/DEPOSITS FROM 8 TO 4 OCLOCK
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 2.3 | MSA | VIEW OF APPROX 15 FT U/S OF MH H 1182 |
| 0 | MWM | — |
| 2 | MGP | POSSIBLE MAG COAT 12 TO 1 OCLOCK |
| 0 | MGP | STACK |
| 0 | MWL | — |
| 0 | AMH | 11:30 AM |
| 0 | MGP | MH STACK |
| 2 | MGO | U/S MH 1182 |
| 2 | MGO | POSSIBLE MAG COATING/DEPOSITS FROM 8 TO 4 OCLOCK |
Properties (6)
- additional_info
- LOOKING U/S OF MH H 1182 FOR ANY SIGNS OF DAMAGES FROM POSSIBLE SINKHOLE APPROX. 15 FT U/S OF MH H 1182
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2019-05-17T10:07:22-07:00
- documentation
- IGNACIO, CASTILLO, BRAR
- is_lateral_inspection
- false
