Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 17, 2019, 04:38 PM

  • H 1183_H 1182_5172019_101544.mp4

Date
05/17/2019
W/O
0771668
Weather
Dry
Operator/Surveyor
IGNACIO
Sewer ID
Z01011
PipeID
P25825
Time
9:38 AM
Certificate
PENDING
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7982
Sewer Name
H JOINT OUTFALL H - UNIT 1B REPLACEMENT
City
SOUTH GATE
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
29
Purpose
Maintenance Related
Project
20190517MI_JOINT_OUTFALL_H_UNIT_1B_REPLACEMENT
Material
RGRCP-PTL
Shape
Circular
Height
90 in.
Upstream MH
H 1183
Downstream MH
H 1182
Dir. of Survey
Downstream
Length Surveyed
2 ft.
Total Length
2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole H 1183 to H 1182
MH: H 1183MH: H 1182downstream0 ft. MWL - Water Level, 40 %of cross sectional area0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MGP - General Photograph0 ft. AMH - Upstream Manhole, Survey Begins - 10:30 AM2 ft. MGP - General Photograph - U/S OF TOWARDS MH 11942 ft. MGO - General Observation - LINER U/S OF MH H 11832 ft. MGO - General Observation - D/S OF MH H 11832 ft. MSA - Survey Abandoned - MH INSPECTION ONLY VIEW OF U/S AND D/S ONLY2 ft. MGO - General Observation - VIEW OF U/S OF MH H 11832 ft. MGP - General Photograph - MH WALL (EAST)2 ft. MGP - General Photograph - MH STACK (EAST)

Observation photos (7)

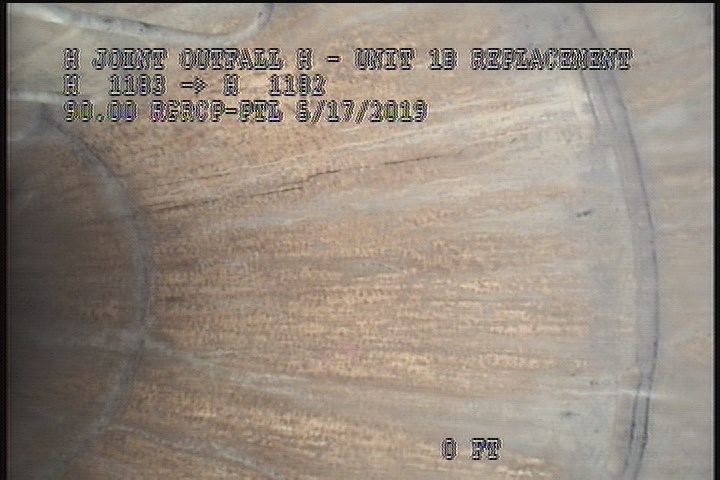

  • General Photograph

    0 ft. - General Photograph

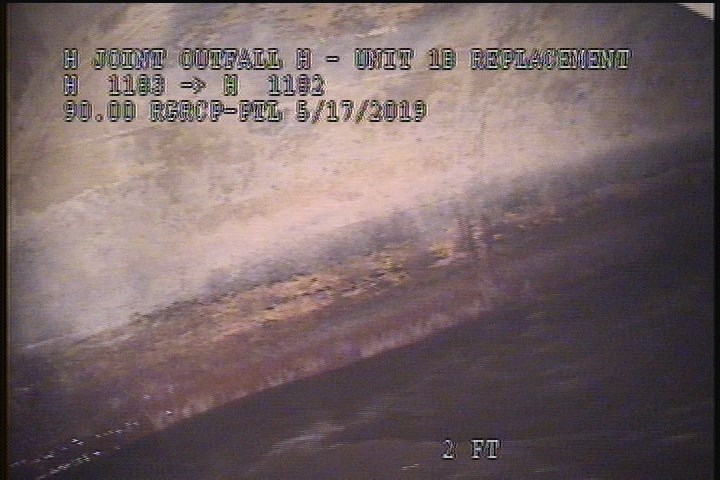

  • General Photograph - U/S OF TOWARDS MH 1194

    2 ft. - General Photograph - U/S OF TOWARDS MH 1194

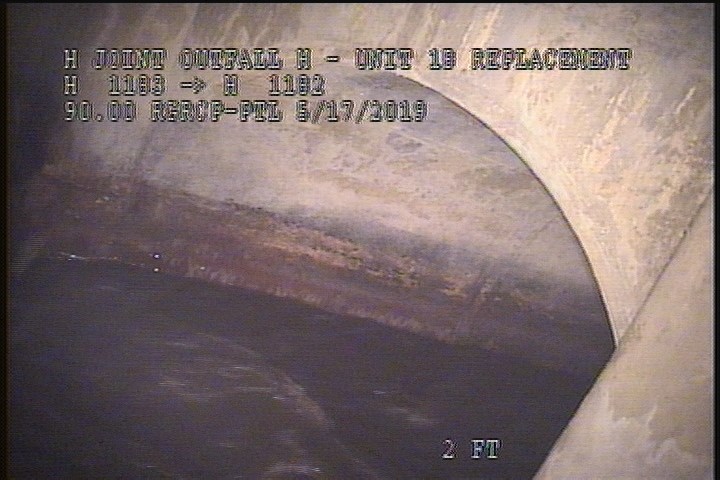

  • General Observation - LINER U/S OF MH H 1183

    2 ft. - General Observation - LINER U/S OF MH H 1183

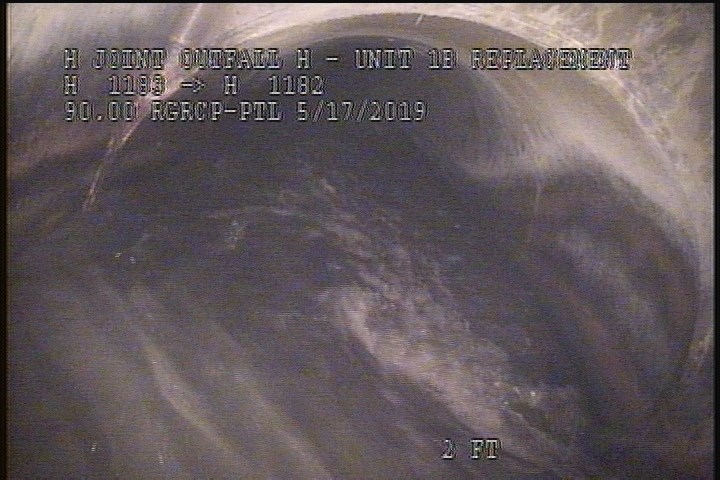

  • General Observation - D/S OF MH H 1183

    2 ft. - General Observation - D/S OF MH H 1183

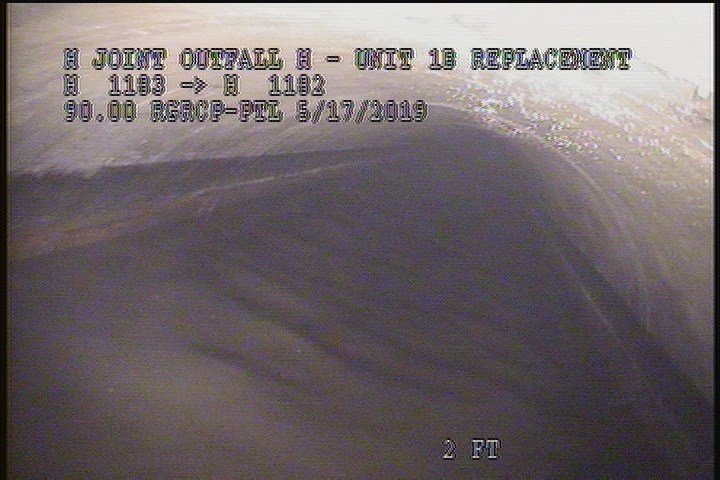

  • General Observation - VIEW OF U/S OF MH H 1183

    2 ft. - General Observation - VIEW OF U/S OF MH H 1183

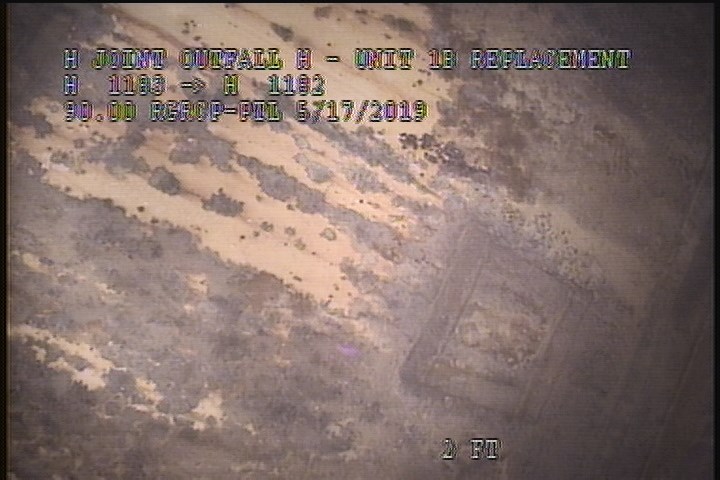

  • General Photograph - MH WALL (EAST)

    2 ft. - General Photograph - MH WALL (EAST)

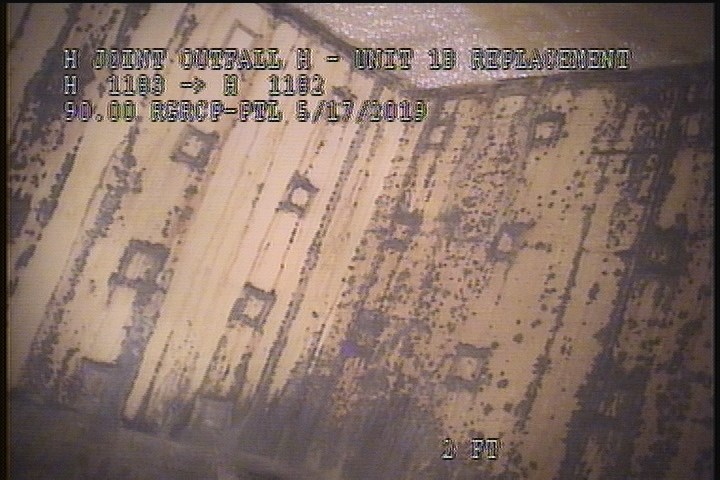

  • General Photograph - MH STACK (EAST)

    2 ft. - General Photograph - MH STACK (EAST)

All inspections of P25825Work order 0771668

Observations (11)

DistanceCodeObservation
2MGPU/S OF TOWARDS MH 1194
0MWL—
2MGOLINER U/S OF MH H 1183
0MWM—
2MGOD/S OF MH H 1183
2MSAMH INSPECTION ONLY VIEW OF U/S AND D/S ONLY
2MGOVIEW OF U/S OF MH H 1183
0MGP—
0AMH10:30 AM
2MGPMH WALL (EAST)
2MGPMH STACK (EAST)

Properties (7)

additional_info
INSPECTING MH STACK LOOKING FOR ANY DAMAGES FROM POSSIBLE SINKHOLE APPROX 4 FT EAST OF MH H 1183
custom_field_two
4
customer
LACSD
datetime
2019-05-17T09:38:28-07:00
documentation
IGNACIO, CASTILLO, BRAR
is_lateral_inspection
false
year_laid
20081029
