Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 16, 2019, 07:08 PM

  • 30 0249_30 0248_5162019_121152.mp4

Date
05/16/2019
W/O
0771071
Weather
Damp
Operator/Surveyor
FRANKLIN
Sewer ID
Z00884
PipeID
P17950
Time
12:08 PM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7981
Sewer Name
30 VIA CAMPESINA TRUNK
City
PALOS VERDES ESTATES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 30
Page No.
09
Purpose
Routine Assessment
Project
20190516DF_VIA_CAMPESINA_TRUNK
Material
NRCP
Shape
Circular
Height
10 in.
Upstream MH
30 0249
Downstream MH
30 0248
Dir. of Survey
Downstream
Length Surveyed
123.1 ft.
Total Length
123.1 ft.
Structural Index
3
Structural Quick
5131
Structural Rating
14
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
3
Overall Quick
—
Overall Rating
15
Pipe schematic from manhole 30 0249 to 30 0248
MH: 30 0249MH: 30 0248downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:08 PM2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. MGO - General Observation - SHELF DETERIORATING51.5 ft. MGP - General Photograph101.6 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES120.8 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish120.8 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Finish120.8 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish121.8 ft. HVV - Hole Void Visible, from 04 to 05 o'clock, within 8 inches of joint: YES122.2 ft. FC - Fracture Circumferential, from 04 to 05 o'clock, within 8 inches of joint: YES123.1 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)123.1 ft. AMH - Downstream Manhole, Survey Ends - 12:24 PM

Observation photos (7)

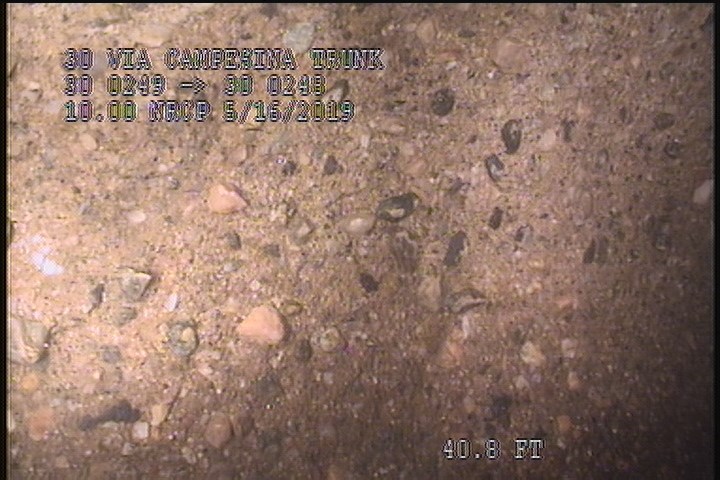

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

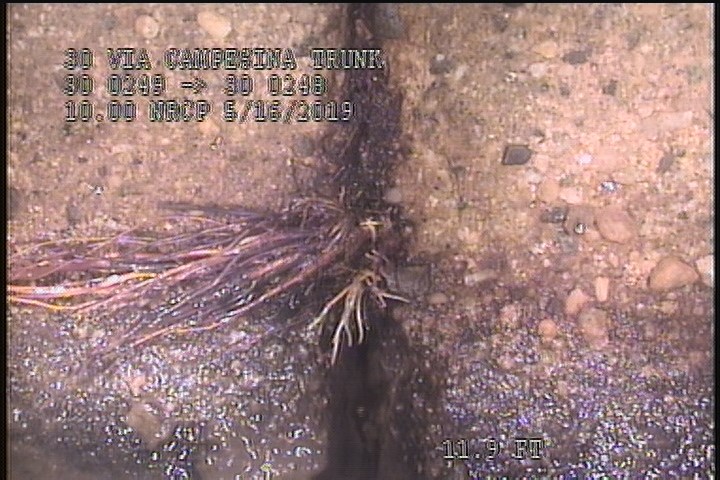

  • Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start

    2 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start

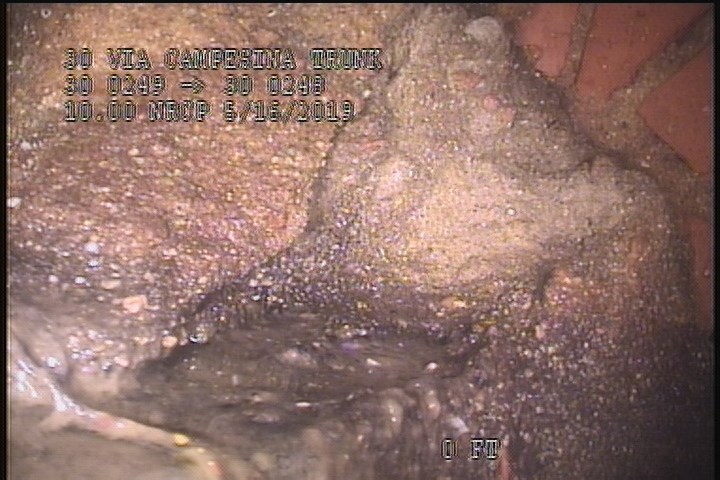

  • General Observation - SHELF DETERIORATING

    2 ft. - General Observation - SHELF DETERIORATING

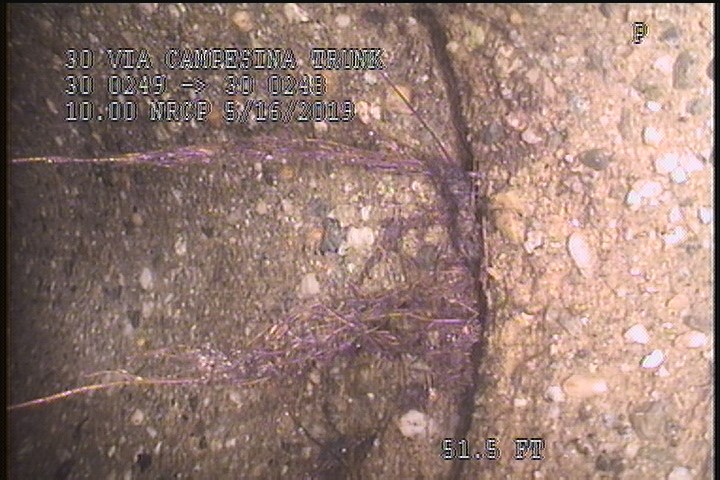

  • General Photograph

    51.5 ft. - General Photograph

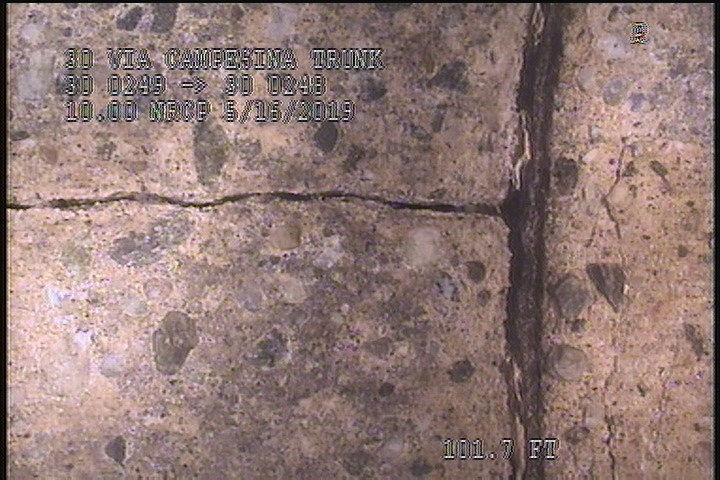

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    101.6 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

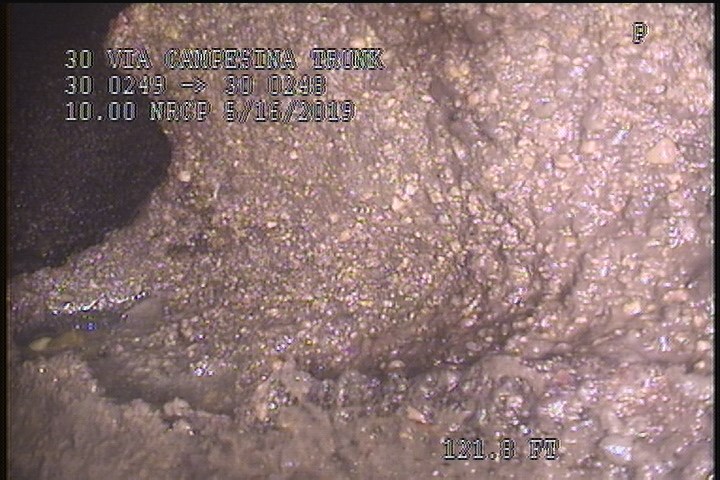

  • Hole Void Visible, from 04 to 05 o'clock, within 8 inches of joint: YES

    121.8 ft. - Hole Void Visible, from 04 to 05 o'clock, within 8 inches of joint: YES

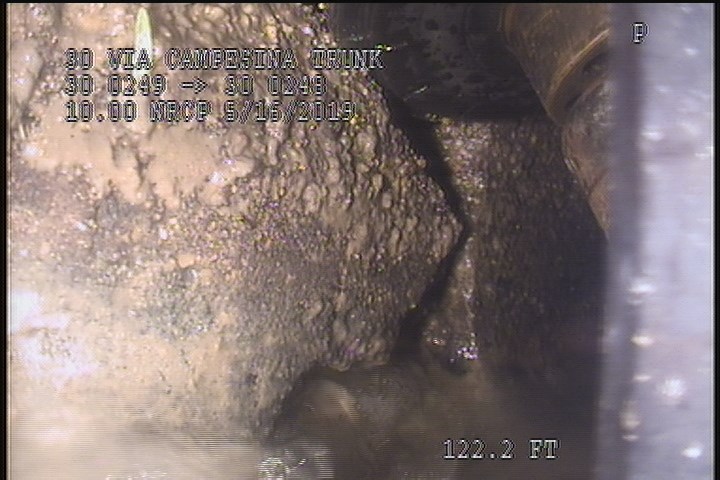

  • Fracture Circumferential, from 04 to 05 o'clock, within 8 inches of joint: YES

    122.2 ft. - Fracture Circumferential, from 04 to 05 o'clock, within 8 inches of joint: YES

All inspections of P17950Work order 0771071

Observations (16)

DistanceCodeObservation
120.8SSS—
51.5MGP—
123.1MGOGREASE THROUGHOUT THE REACH (5%)
0MWL—
121.8HVV—
0MWM—
120.8RFJ—
120.8SAV—
101.6CL—
123.1AMH12:24 PM
122.2FC—
2SAV—
2RFJ—
2SSS—
2MGOSHELF DETERIORATING
0AMH12:08 PM

Properties (6)

custom_field_three
SHELF DETERIORATING
custom_field_two
3
customer
LACSD
datetime
2019-05-16T12:08:13-07:00
documentation
FRANKLIN, CASTILLO, BRAR
is_lateral_inspection
false
