Wastewater/Activity/PacpInspection/1.0May 16, 2019, 05:09 PM
30 0252_30 0251_5162019_105126.mp4
- Date
- 05/16/2019
- W/O
- 0771071
- Weather
- Light Rain
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00884
- PipeID
- P17953
- Time
- 10:09 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7981
- Sewer Name
- 30 VIA CAMPESINA TRUNK
- City
- PALOS VERDES ESTATES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 30
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- 20190516DF_VIA_CAMPESINA_TRUNK
- Material
- NRCP
- Shape
- Circular
- Height
- 10 in.
- Upstream MH
- 30 0252
- Downstream MH
- 30 0251
- Dir. of Survey
- Downstream
- Length Surveyed
- 106.7 ft.
- Total Length
- 106.7 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 1
- O&M Quick
- 1100
- O&M Rating
- 1
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (5)

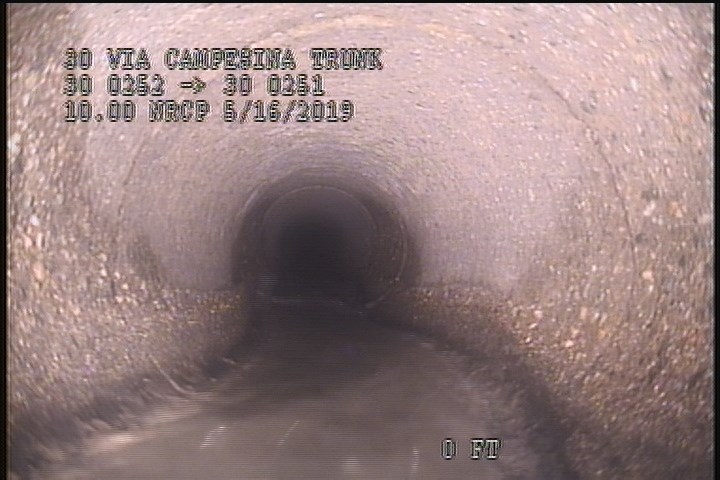

0.1 ft. - Water Level, 10 %of cross sectional area
1.9 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

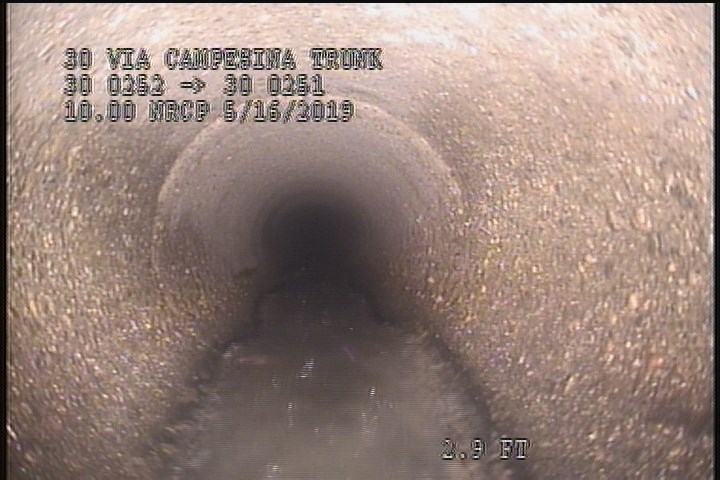

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

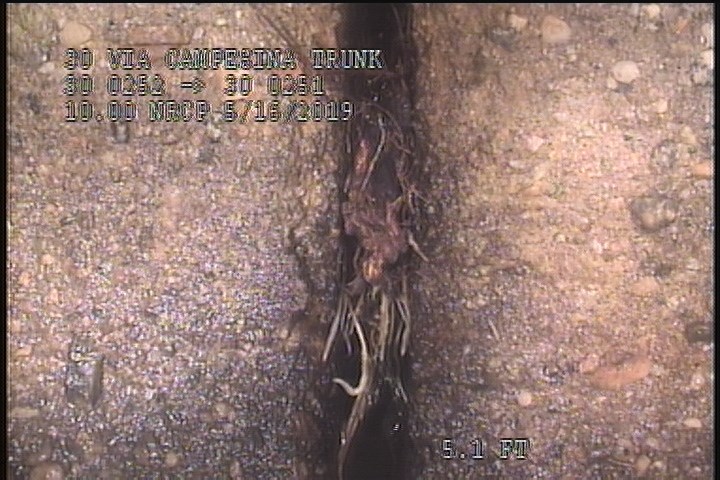

5.1 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start

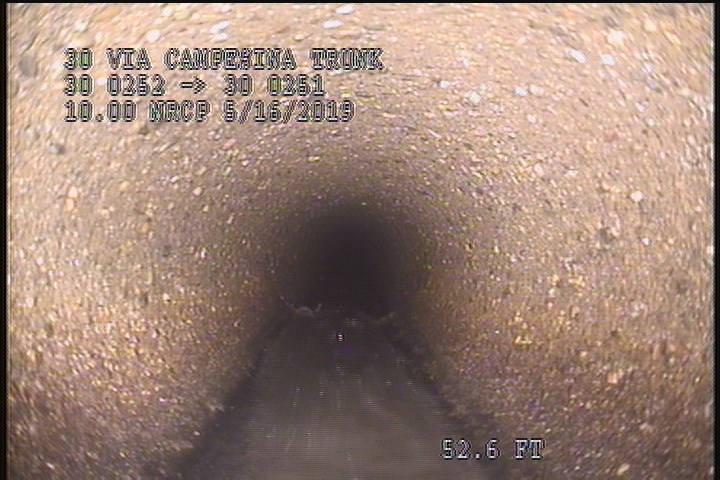

52.6 ft. - General Photograph
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 106.7 | AMH | 11:03 AM |
| 0.1 | MWL | — |
| 52.6 | MGP | — |
| 5.1 | RFJ | — |
| 2 | MGO | Conn. @ Mh, 9 O' Clock. Active |
| 0 | AMH | 10:12 AM |
| 2 | SSS | — |
| 0.1 | MWM | — |
| 106.7 | MGO | Grease Throughout The Reach (5%) |
| 104.6 | SAV | — |
| 104.6 | SSS | — |
| 104.6 | RFJ | — |
| 1.9 | SAV | — |
Properties (5)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-05-16T10:09:17-07:00
- documentation
- FRANKLIN, CASTILLO, BRAR
- is_lateral_inspection
- false
