Wastewater/Activity/PacpInspection/1.0Feb 1, 2019, 10:01 AM
22 1145_22 1144 _02012019_021757.mp4
- Date
- 02/01/2019
- W/O
- 745456
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00807
- PipeID
- P17524
- Time
- 2:01 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6379
- Sewer Name
- 22 DUARTE TRUNK
- City
- DUARTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 02
- Purpose
- Routine Assessment
- Project
- WO_745456_TV22035_JAN2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 22 1144
- Downstream MH
- 22 1145
- Dir. of Survey
- Upstream
- Length Surveyed
- 308.1 ft.
- Total Length
- 308.1 ft.
- Structural Index
- 3
- Structural Quick
- 3K00
- Structural Rating
- 183
- O&M Index
- 2
- O&M Quick
- 3123
- O&M Rating
- 9
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 192
Observation photos (4)

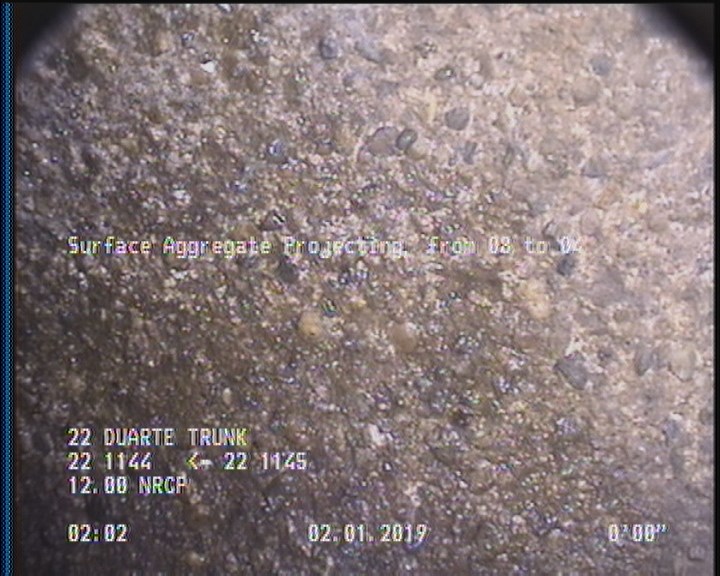

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

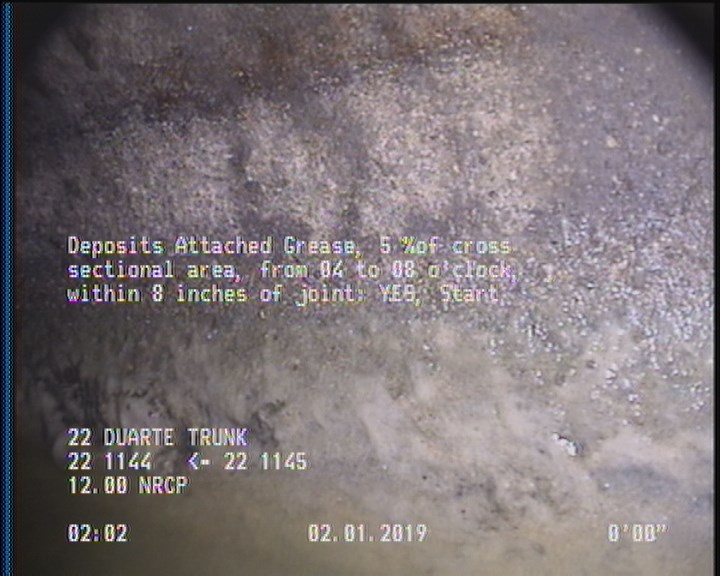

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
308.1 ft. - Survey Abandoned - DUE TO OBSTACLE

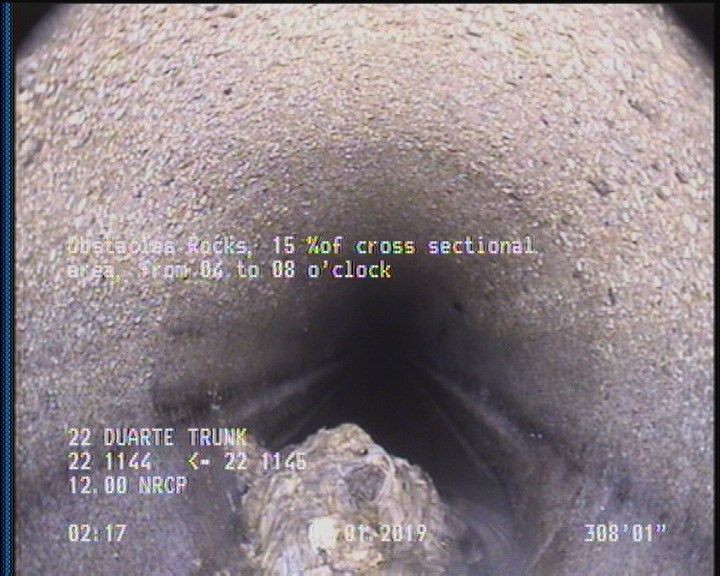

308.1 ft. - Obstacles Rocks, 15 %of cross sectional area, from 04 to 08 o'clock
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 19.1 | OBR | — |
| 308.1 | SAP | — |
| 160.9 | TFC | — |
| 2 | SAP | — |
| 0 | MWM | — |
| 308.1 | MSA | DUE TO OBSTACLE |
| 106.7 | TFC | — |
| 0 | MWL | — |
| 2 | DAGS | — |
| 255.1 | TFC | — |
| 209.9 | TFC | — |
| 54.9 | TFC | — |
| 308.1 | OBR | — |
| 308.1 | DAGS | — |
| 0 | AMH | 22 1144 |
| 6.1 | TFC | — |
Properties (5)
- additional_info
- SC365691
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2019-02-01T02:01:30-08:00
- is_lateral_inspection
- false
