Wastewater/Activity/PacpInspection/1.0Jan 31, 2019, 08:04 AM
14 0251_14 0250A _01312019_000502.mp4
- Date
- 01/31/2019
- W/O
- 745530
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00569
- PipeID
- P18307
- Time
- 12:04 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6378
- Sewer Name
- 14 AVENUE "H" TRUNK
- City
- LANCASTER
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 06
- Purpose
- Routine Assessment
- Project
- RFIR_WO_745530_TV14071_JAN2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 14 0251
- Downstream MH
- 14 0250A
- Dir. of Survey
- Downstream
- Length Surveyed
- 372.4 ft.
- Total Length
- 372.4 ft.
- Structural Index
- 3
- Structural Quick
- 5N3N
- Structural Rating
- 740
- O&M Index
- 2
- O&M Quick
- 412N
- O&M Rating
- 152
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 892
Observation photos (4)

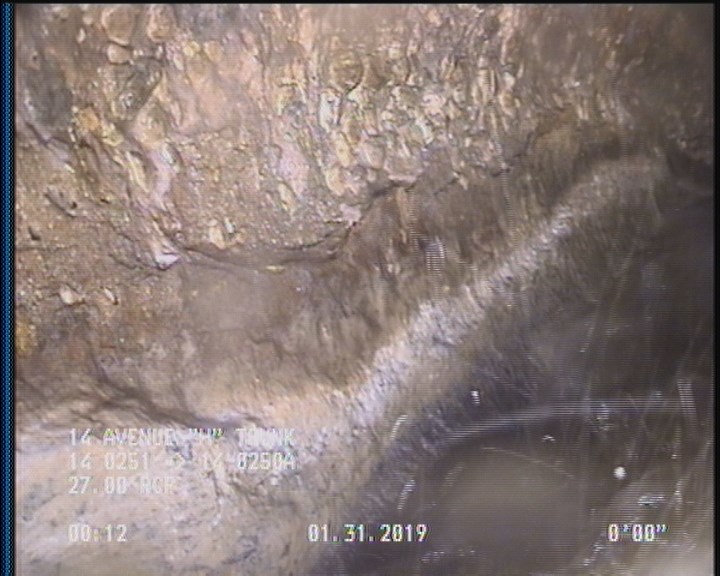

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

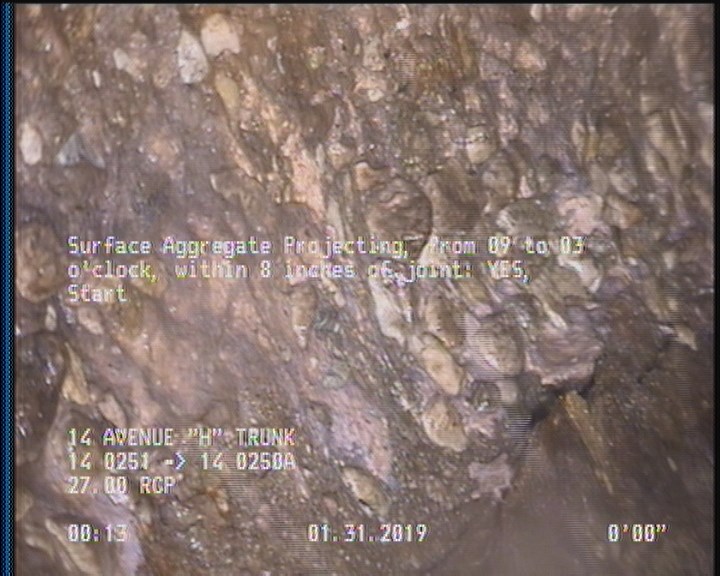

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

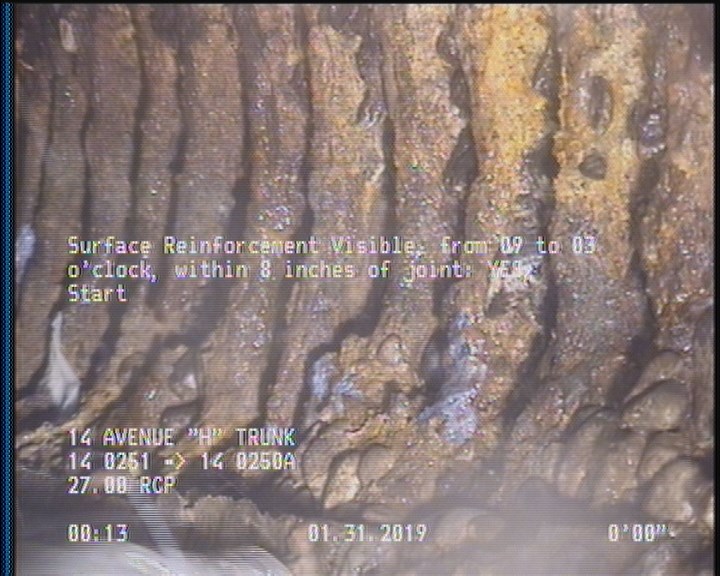

2 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

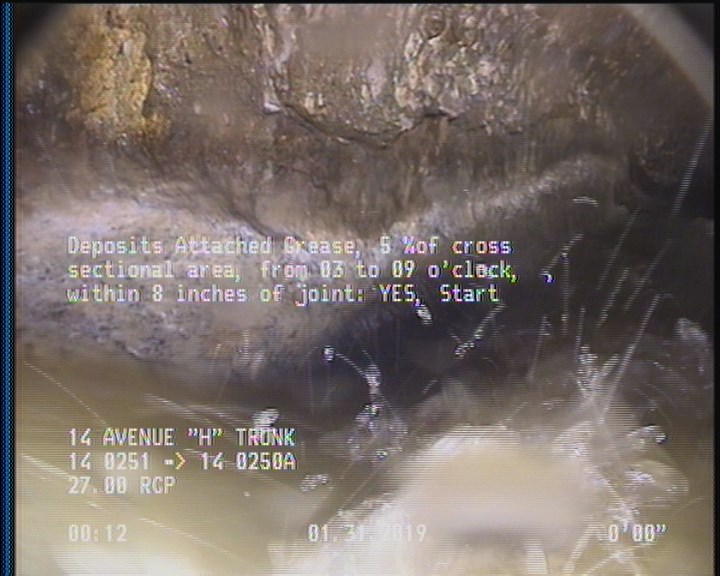

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 372.4 | SSS | — |
| 372.4 | SRV | — |
| 2 | SSS | — |
| 0 | MWL | — |
| 372.4 | SAP | — |
| 2 | SAP | — |
| 0 | AMH | 14 0251 |
| 372.4 | DAGS | — |
| 372.4 | AMH | 14 0250A |
| 372.4 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 2 | SRV | — |
| 2 | DAGS | — |
| 0 | MWM | — |
Properties (5)
- additional_info
- SC365690
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-01-31T00:04:20-08:00
- is_lateral_inspection
- false
