Wastewater/Activity/PacpInspection/1.0Dec 12, 2018, 06:53 AM
05 0154_05 0153 _12112018_230605.mp4
- Date
- 12/11/2018
- W/O
- 740131
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00431
- PipeID
- P05446
- Time
- 10:53 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6247
- Sewer Name
- 05 DISTRICT #5 MAIN TRUNK
- City
- HAWTHRONE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- RFIR_WO_740015_TV05147_DEC2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- 05 0154
- Downstream MH
- 05 0153
- Dir. of Survey
- Downstream
- Length Surveyed
- 311.3 ft.
- Total Length
- 311.3 ft.
- Structural Index
- 3
- Structural Quick
- 3300
- Structural Rating
- 9
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (3)

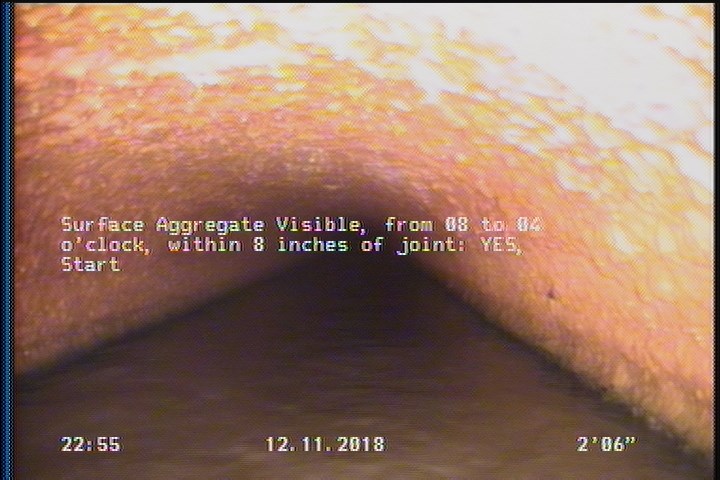

2.5 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

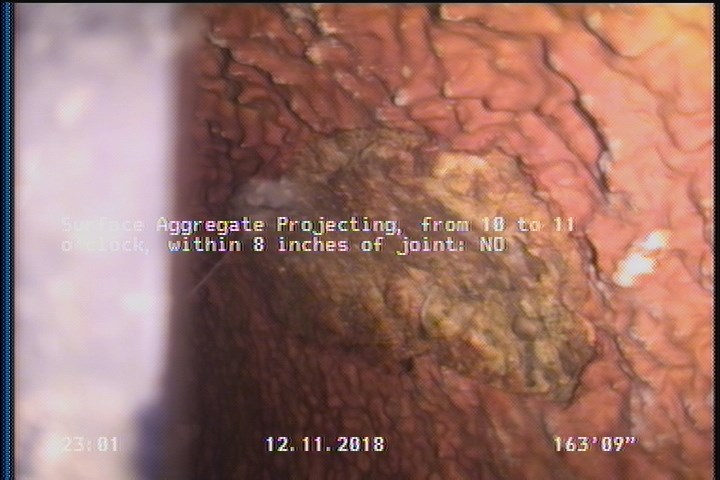

163.7 ft. - Surface Aggregate Projecting, from 10 to 11 o'clock, within 8 inches of joint: NO

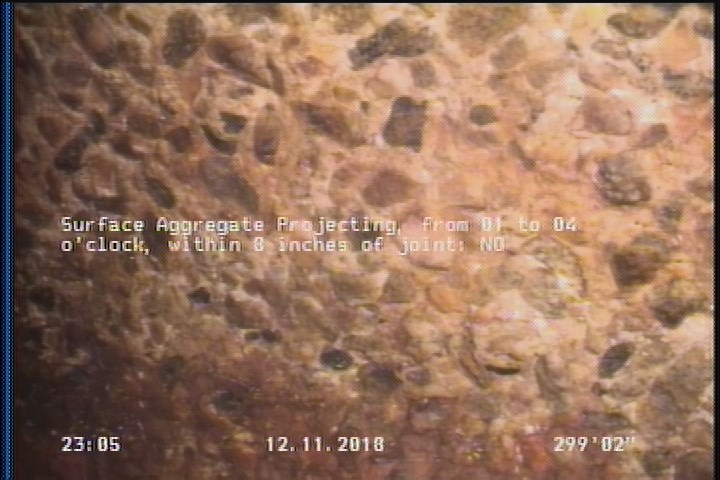

299.2 ft. - Surface Aggregate Projecting, from 01 to 04 o'clock, within 8 inches of joint: NO
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 299.2 | SAP | — |
| 311.3 | SAV | — |
| 0 | MGO | SERVICE CONNECTION AT 9 O'CLOCK AT MH |
| 0 | AMH | 05 0154 |
| 2.5 | SAV | — |
| 0 | MGO | SERVICE CONNECTION AT 3 O' CLOCK AT MH |
| 0 | MWM | — |
| 2.5 | MGO | mag coat |
| 163.7 | SAP | — |
| 0 | MWL | — |
| 311.3 | AMH | 05 0153 |
Properties (5)
- additional_info
- SC365480
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-12-11T22:53:09-08:00
- is_lateral_inspection
- false
