Wastewater/Activity/PacpInspection/1.0Dec 13, 2018, 08:54 AM
05 0139_05 0138 _12132018_010509.mp4
- Date
- 12/13/2018
- W/O
- 740131
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00431
- PipeID
- P05431
- Time
- 12:54 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6248
- Sewer Name
- 05 DISTRICT #5 MAIN TRUNK
- City
- HAWTHRONE
- Loc. details
- Alley
- Location Code
- H
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- RFIR_WO_740015_TV05147_DEC2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 33 in.
- Width
- 33 in.
- Upstream MH
- 05 0139
- Downstream MH
- 05 0138
- Dir. of Survey
- Downstream
- Length Surveyed
- 309.7 ft.
- Total Length
- 309.7 ft.
- Structural Index
- 3
- Structural Quick
- 523K
- Structural Rating
- 193
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 193
Observation photos (3)

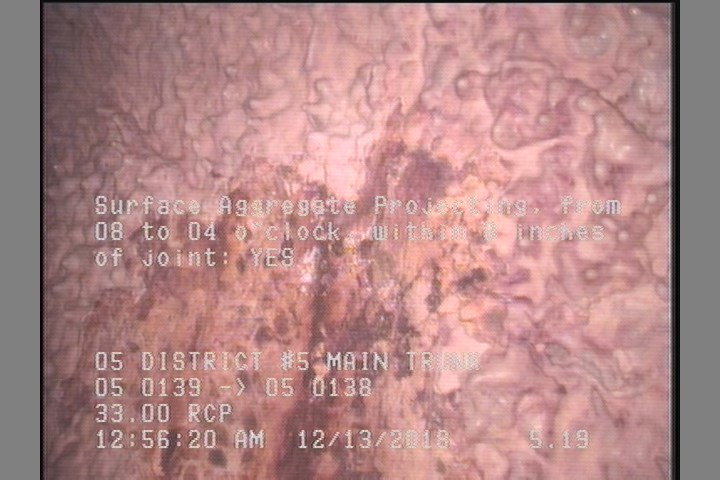

5.2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

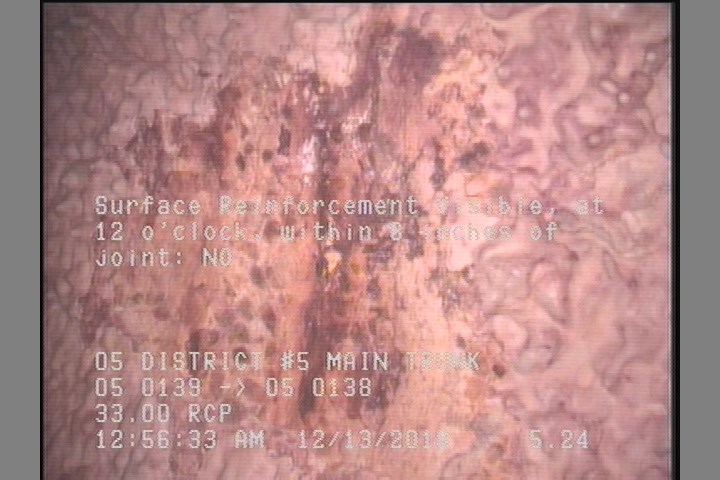

5.2 ft. - Surface Reinforcement Visible, at 12 o'clock, within 8 inches of joint: NO

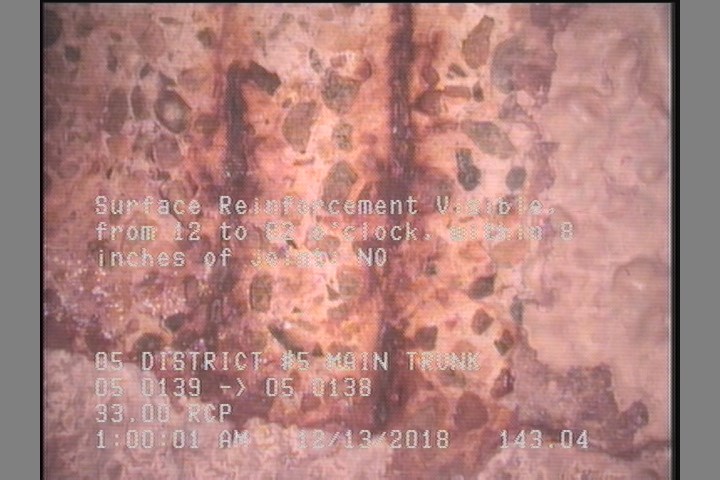

143 ft. - Surface Reinforcement Visible, from 12 to 02 o'clock, within 8 inches of joint: NO
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 5.2 | SAP | — |
| 143 | SRV | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 0 | AMH | 05 0139 |
| 5.2 | MGO | MAG COAT |
| 309.7 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 5.2 | SRV | — |
| 309.7 | SAP | — |
| 309.7 | AMH | 05 0138 |
Properties (5)
- additional_info
- SC365481
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-12-13T00:54:44-08:00
- is_lateral_inspection
- false
