Wastewater/Activity/PacpInspection/1.0Dec 19, 2018, 09:18 AM
05 0137_05 0136 _12192018_012951.mp4
- Date
- 12/19/2018
- W/O
- 740131
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00431
- PipeID
- P05428
- Time
- 1:18 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6252
- Sewer Name
- 05 DISTRICT #5 MAIN TRUNK
- City
- HAWTHRONE
- Loc. details
- Alley
- Location Code
- H
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- RFIR_WO_740015_TV05147_DEC2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 33 in.
- Width
- 33 in.
- Upstream MH
- 05 0136
- Downstream MH
- 05 0137
- Dir. of Survey
- Upstream
- Length Surveyed
- 328.7 ft.
- Total Length
- 328.7 ft.
- Structural Index
- 3
- Structural Quick
- 513L
- Structural Rating
- 208
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 208
Observation photos (3)

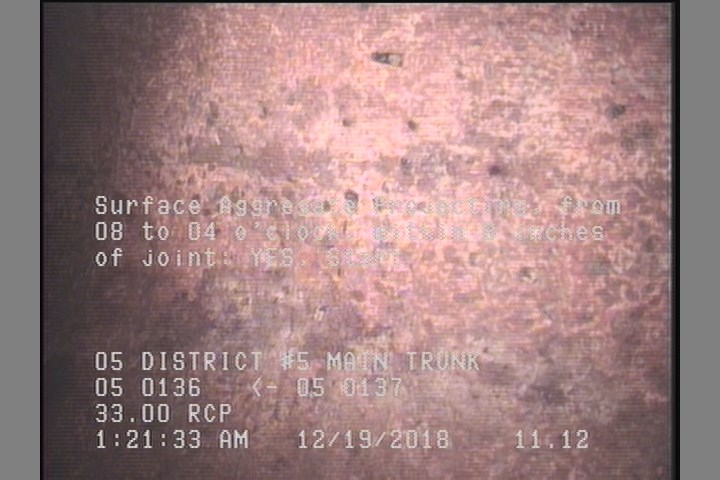

11.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

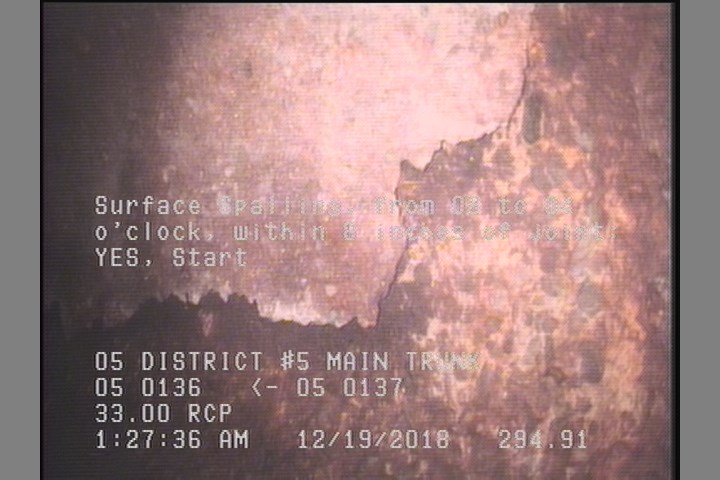

294.9 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

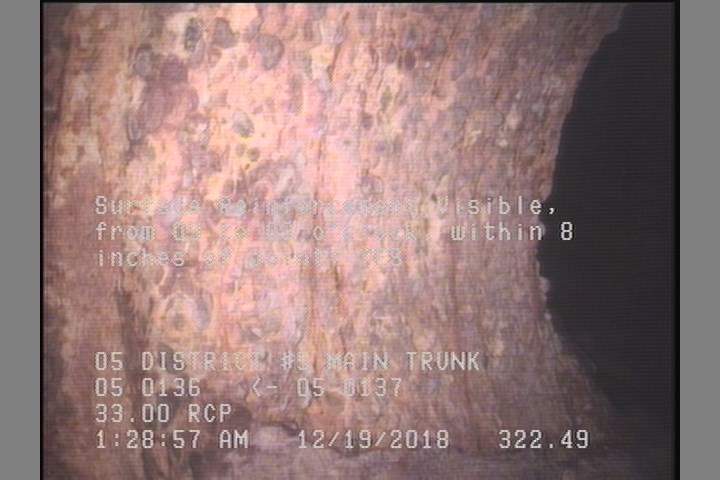

322.5 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 328.5 | SAP | — |
| 294.9 | SSS | — |
| 0 | AMH | 05 0136 |
| 328.6 | SSS | — |
| 11.1 | SAP | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 328.7 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 328.7 | AMH | 05 0137 |
| 322.5 | SRV | — |
| 5.2 | MGO | MAG COAT |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
Properties (5)
- additional_info
- SC365485
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-12-19T01:18:39-08:00
- is_lateral_inspection
- false
