Wastewater/Activity/PacpInspection/1.0Jan 10, 2019, 08:16 AM
18 0979_18 0978 _01102019_002421.mp4
- Date
- 01/10/2019
- W/O
- 740141
- Weather
- Dry
- Operator/Surveyor
- E.RUIZ
- Sewer ID
- Z00717
- PipeID
- P14830
- Time
- 12:16 AM
- Certificate
- U-715-07000753
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5335
- Sewer Name
- 18 WORSHAM CREEK RELIEF TRUNK
- City
- WHITTIER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- WO_740141_TV18061_DEC2018
- Sewer Type
- Siphon
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 18 0979
- Downstream MH
- 18 0978
- Dir. of Survey
- Downstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 4
- O&M Quick
- 5121
- O&M Rating
- 7
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (2)

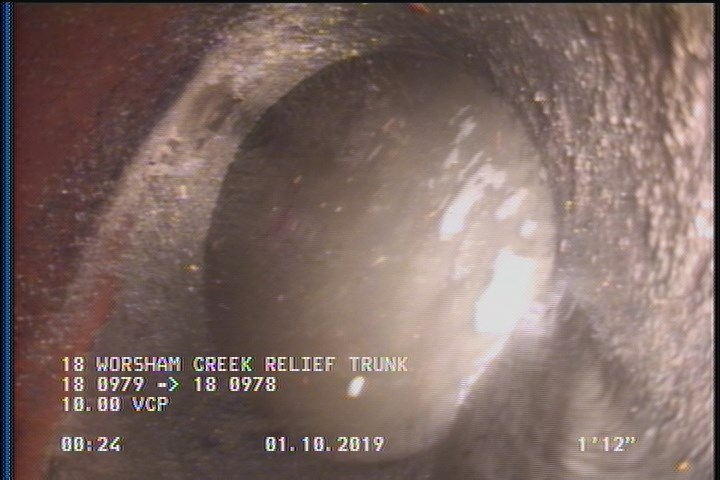

2 ft. - General Observation - VIEW OF THE SIPHON DOWNLEG FROM U/S MH

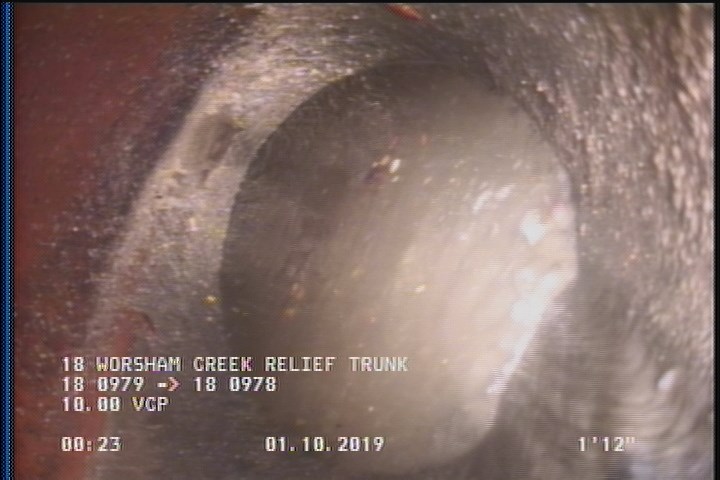

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 2 | MGO | VIEW OF THE SIPHON DOWNLEG FROM U/S MH |
| 0 | AMH | 18 0979 |
| 0 | MWM | — |
| 2 | DAGS | — |
| 2 | MGO | EAST SIDE OF THE SIPHON |
| 0 | MWL | — |
Properties (4)
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2019-01-10T00:16:36-08:00
- is_lateral_inspection
- false
