Wastewater/Activity/PacpInspection/1.0Jan 29, 2019, 06:44 AM
29 0081_29 0080 _01282019_230737.mpg
- Date
- 01/28/2019
- W/O
- 745716
- Weather
- Dry
- Operator/Surveyor
- E.RUIZ
- Sewer ID
- Z00265
- PipeID
- P23861
- Time
- 10:44 PM
- Certificate
- U-715-07000753
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5354
- Sewer Name
- 29 33RD STREET TRUNK
- City
- SIGNAL HILL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- RFIR_WO_745716_TV29073_JAN2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 29 0081
- Downstream MH
- 29 0080
- Dir. of Survey
- Downstream
- Length Surveyed
- 334.9 ft.
- Total Length
- 334.9 ft.
- Structural Index
- 4
- Structural Quick
- 4I31
- Structural Rating
- 215
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 215
Observation photos (4)

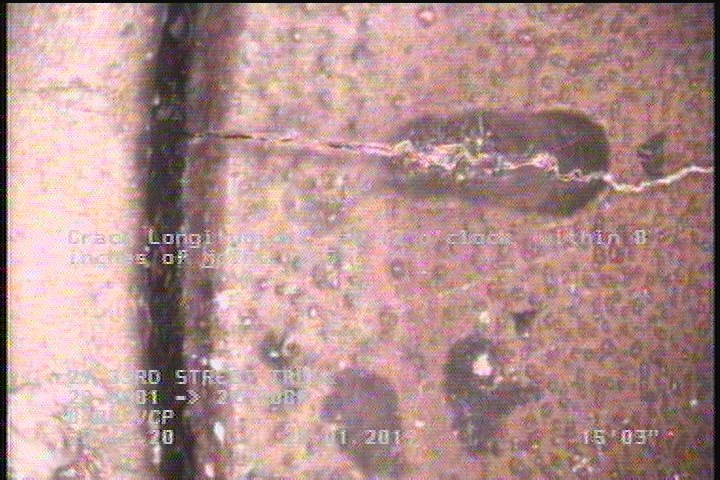

15.3 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

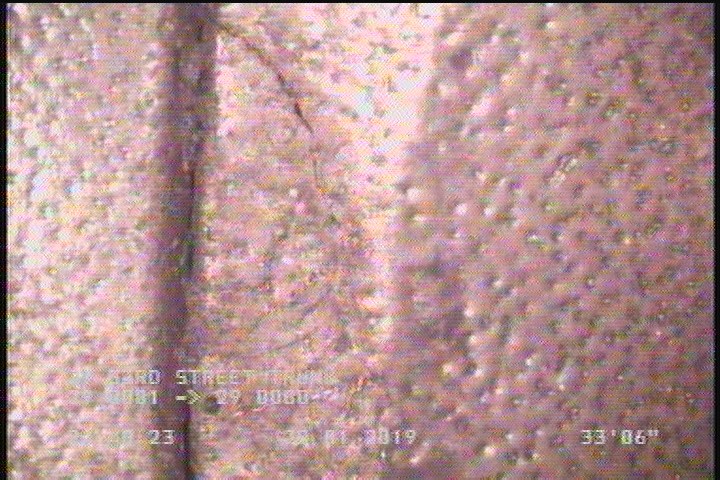

33.5 ft. - Crack Multiple, from 08 to 09 o'clock, within 8 inches of joint: YES

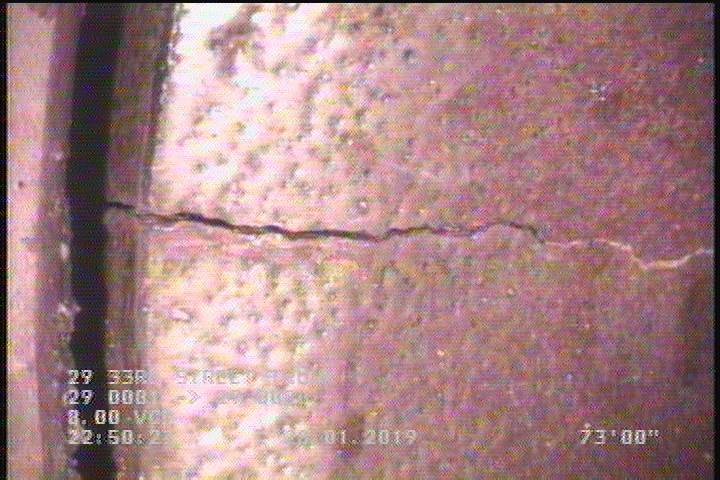

73 ft. - Fracture Multiple, from 10 to 01 o'clock, within 8 inches of joint: YES

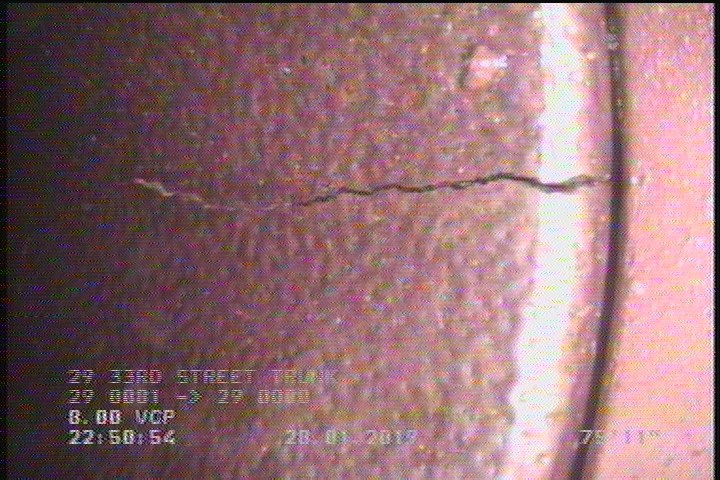

75.9 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 15.3 | CL | — |
| 33.5 | CM | — |
| 42.6 | CL | — |
| 0 | AMH | 29 0081 |
| 73 | FM | — |
| 313.3 | TFA | — |
| 165 | TFA | — |
| 316 | TF | — |
| 75.9 | FM | — |
| 14.6 | TFA | — |
| 0 | MWL | — |
| 332.7 | FM | — |
| 334.9 | AMH | 29 0080 |
| 2.2 | MWM | — |
| 334.9 | MGO | CONNECTION AT MH 9 OCLOCK |
| 146.9 | TBA | — |
Properties (4)
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-01-28T22:44:15-08:00
- is_lateral_inspection
- false
