Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 29, 2019, 07:32 AM

  • 29 0079_29 0078 _01282019_235710.mpg

Date
01/28/2019
W/O
745716
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00265
PipeID
P23859
Time
11:32 PM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5354
Sewer Name
29 33RD STREET TRUNK
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
01
Purpose
Routine Assessment
Project
RFIR_WO_745716_TV29073_JAN2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
29 0079
Downstream MH
29 0078
Dir. of Survey
Downstream
Length Surveyed
142.1 ft.
Total Length
142.1 ft.
Structural Index
4
Structural Quick
4D33
Structural Rating
105
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
105
Pipe schematic from manhole 29 0079 to 29 0078
MH: 29 0079MH: 29 0078downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 9 OCLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 29 00793.5 ft. CM - Crack Multiple, from 08 to 12 o'clock, within 8 inches of joint: YES6.8 ft. FL - Fracture Longitudinal, at 01 o'clock, within 8 inches of joint: YES14.6 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES20 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start55.4 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"56.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6"142.1 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish142.1 ft. AMH - Downstream Manhole, Survey Ends - 29 0078

Observation photos (2)

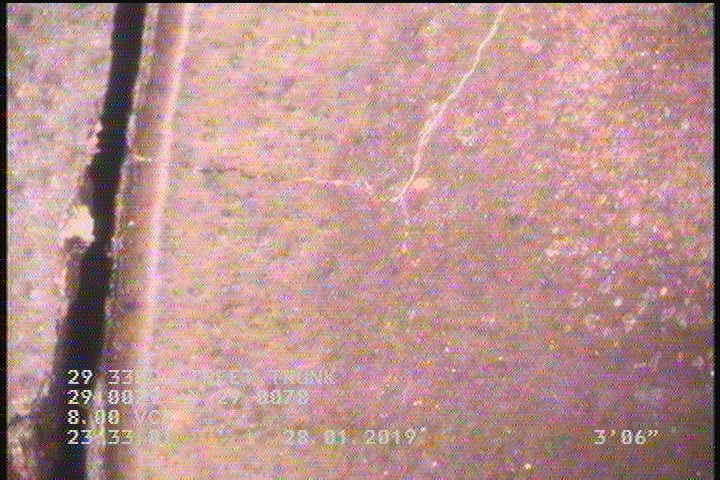

  • Crack Multiple, from 08 to 12 o'clock, within 8 inches of joint: YES

    3.5 ft. - Crack Multiple, from 08 to 12 o'clock, within 8 inches of joint: YES

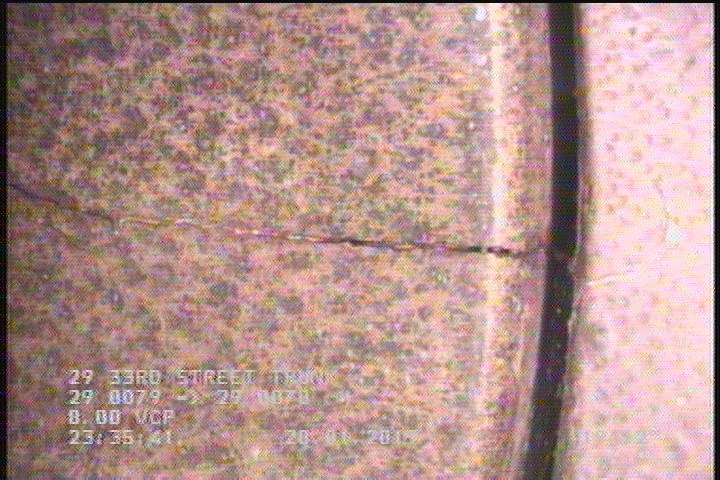

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    20 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P23859Work order 745716

Observations (12)

DistanceCodeObservation
14.6FL—
20FM—
0MWL—
142.1FM—
3.5CM—
0MWM—
56.7TF—
142.1AMH29 0078
6.8FL—
0MGOCONNECTION AT MH 9 OCLOCK
55.4TFA—
0AMH29 0079

Properties (4)

custom_field_two
2
customer
LACSD
datetime
2019-01-28T23:32:01-08:00
is_lateral_inspection
false
